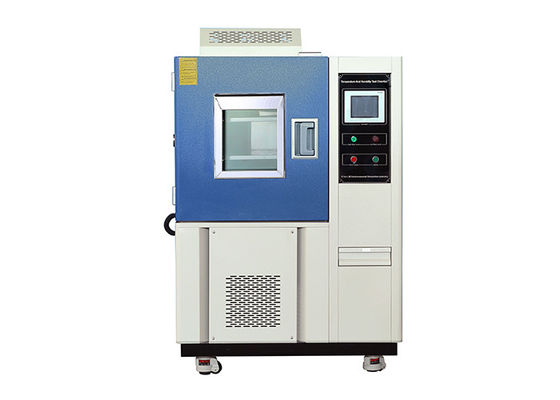

Cold Resistance Temperature Artificial Climate Chamber Small Medium Large
Product Details:
| Place of Origin: | China |
| Brand Name: | LIB |
| Certification: | CE,RoHS, ISO17025, CSA |
| Model Number: | TH-225 Temperature Artificial Climate Chamber |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | USD2200 ~ USD8100 / SET |
| Packaging Details: | Wooden cases standard export package |
| Delivery Time: | 160 sets / quarter |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram,Paypal |
|
Detail Information |
|||
| Power Supply: | 220V 50HZ | Humidity Range: | 20% ~ 98% RH |
|---|---|---|---|
| Temperature Range: | -20℃ ～+150 ℃ | Temperature Deviation: | ± 2.0 ℃ |
| Environmental Conditional: | 5℃～+40 ℃ ≤85% RH | ||
| High Light: | relative humidity chamber,humidity testing equipment |
||
Product Description
Reach -in Cold Resistance Temperature Artificial Climate Chamber Small Medium Large
Reach -in Cold Resistance Temperature Artificial Climate Chamber the purpose of a temperature test is to verify the resistance of a specimen to the environmental influence of temperature. The tests are aimed at the suitability for use and storage at low and high temperatures. In research and development laboratories, the functionality and usability of a product are determined at a very early stage.Temperature Humidity Environmental Simulation Chamber PLC Temperature Humidity Stability Test Chamber For Cold Damp Heat Dry Heat Testing are used in.
Reach -in Cold Resistance Temperature Artificial Climate Chamberis widely used in the temperature variation test, cold resistance test and storage with low-temperature in the foelds of aerospace, aviation, electronics, instrument, electric products, materials, parts and components and equipment to analyze and evaluate the property and performance of the sample under thr simulated conditions.
| Model | TH-225 | ||||||||
| Internal dimension (mm) | 500*600*750 | ||||||||
| Overall dimension (mm) | 960*1150*1860 | ||||||||
| Temperature range | -20℃ ～+150 ℃ | ||||||||
| Low type | Ⅰ: -40℃ Ⅱ:-70℃ Ⅲ: -86℃ | ||||||||
| Humidity range | 20% ~ 98% RH | ||||||||
| Temperature fluctuations | ± 0.5 ℃ | ||||||||
| Temperature deviation | ± 2.0 ℃ | ||||||||
| Humidity deviation | ± 2.5% RH | ||||||||
| Heating rate | 3 ℃ / min | ||||||||
| Cooling rate | 1 ℃ / min | ||||||||
| Controller | Programmable color LCD touch screen controller | ||||||||
| Temperature Sensor | PTR Platinum Resistance PT100Ω/MV A-class | ||||||||
| Humidity sensor | Dry and wet bulb sensor | ||||||||
| Heater | Nichrome heater | ||||||||
| Cooling system | Mechanical compression refrigeration system | ||||||||
| Refrigerating unit | French TECUMSEH compressor | ||||||||
| Refrigerant | R404A, R23 | ||||||||
| Exterior material | Steel Plate with protective coating | ||||||||
| Thermal insulation | Polyurethane foam | ||||||||
| Observation window | Interior lighting , double-layer thermo stability silicone rubber sealing | ||||||||
| Standard configuration | 1 Cable hole (Φ 50,) with plug; 2 shelves | ||||||||
| Timing Function | 0.1~999.9 (S,M,H) settable | ||||||||
| Power Supply | 220V 50HZ | ||||||||
| Environmental conditional | 5℃～+40 ℃ ≤85% RH | ||||||||
- Temperature control and display unit
- Humidity control and display unit
- Programmable color LCD touch screen controller
- Viewing window with interior lighting.
- Test hole with silicone screw plug.
- 2 pieces of adjustable and removable mesh shelving.
- Bottom install 4 castors for ease moving, and with brakes function
- Programs reach to 999 groups and 999 sections
- Automatic Water Supply Inle
Test Area
Material of the test cabinet is high quality SUS304 stainless steel.
Test hole (Φ 50mm, Φ125mm), sealed with silicone screw plug.
Temperature sensor Pt100 platinum
Humidity sensor dry and wet bulb
2 pieces of adjustable and removable shelves
Air Circulation
3 Air circulation fans in the workroom of the chamber.
The real wall of test area equipped with chip-type wind board.
Air flowing from top of wind board which control air direction return to air inlet to achieve air circulation.
Humidity System
External isolation, stainless steel surface evaporation humidifier
Automatic water supply
Control Panel
PLC controller
Programmable color display touch screen controller.
Programs reach to 999 groups and 999 sections
RS-232 /RS-485 interface, PC Link, LAN network
Large Viewing Window
Interior lighting
Window coated with conducting film to protect it from frost.
Size is 250*300mm W*H.
Safety Protection
Over temperature protection,
Water shortage protection
Humidifier dry combustion protection
Refrigerant high pressure protection
Over current protection
Earth leakage protection
Export Standard Wooden Box.
Gross Weight: 370KG, Package size: 3.3 m³.
Can be used for Sea, Air, Railway, Truck transportation,TNT,Fedex,UPS,EMS.
Provide test solution
If you are end user, you have some test samples need environmental testing, you are not clear the tests, please contact us to get test solution. Will response
within 10 hours after got your requests.
If you are trading dealer, you got request from your customers, please let us know, our team will response you to send test solution for you.
If you want to participate in bidding, our company will send you full brochure with best price for you win the tender.
Send specification and quotation
If you are interested in some models, you want to get specifications and quote, don’t hesitate to contact our elite team to get brochure and best price.
Will offer you one-stop service including machine, transportation, and installation, calibration, and spare parts…etc
Warranty & After Sales Service
3 Years Warranty, Lifelong Follow-up Services.
We have a professional after-sales team,
if you have any questions during operation, we will supply solutions to you with 24 hours.
