Dust Tight Artificial Climate Chamber / Vehicle Testing Talcum Powder Test

Dust Tight Artificial Climate Chamber / Vehicle Testing Talcum Powder Test

Product Details:

Place of Origin: China
Brand Name: LIB
Certification: CE,RoHS.CAS,IEC60529
Model Number: DI-1500 Dust Tight Artificial Climate Chamber

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: USD 2100-USD 8200/Set
Packaging Details: Package with Export Standard Wooden Box
Delivery Time: 3-18 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,paypal
Supply Ability: 160 sets/quarter
Get Best Price Contact Now

Detail Information

Temperature Range: Ambient To +50℃ Relative Humidity: <30%RH
Normal Wire Diameter: 50um Normal Width Of A Gap Between Wire: 75um
The Talcum Powder Amount: 2kg ~ 4kg/m3 Heating System: Nichrome Electronic Heating System
High Light:

dust testing equipment

,

sand testing equipment

Product Description

Vehicle Testing Dust Tight Artificial Climate Chamber Talcum Powder Test





Description



Vehicle Testing Dust Tight Artificial Climate Chamber Talcum Powder Test simulating the destructive effect of natural sand,dust and wind climate on products, suitable for testing the shell sealing performance of products.

Dust Proof Climatic Simulation Chamber provide environments to test exposure of automotive and electronic components to concentrated levels of dust to validate seal integrity.





Application



Vehicle Testing Dust Tight Artificial Climate Chamber Talcum Powder Test is applied to test the performance of electronic & electrical products, automotive, motorcycle parts, seal the pieces in the sand and dust environment using, storage, transportation, etc.





Main Technical Parameter
Model DI-1500
Internal dimensions (mm) 1000*1500*1000
Overall dimensions (mm) 1250*1900*1960
Temperature range Ambient to +50℃
Relative Humidity <30%RH
Normal wire diameter 50um
Normal width of a gap between wire 75um
The Talcum powder amount 2kg ~ 4kg/m3
Fight time 0 ~ 99H59M
Fan cycle time 0 ~ 99H59M
Specimen power outlet Dust-proof socket AC220V 16A
Controller programmable color display touch screen controller
PC Link, R-232 interface
Vacuum system Equipped with a pressure gauge, air filter, pressure regulator, connecting tube
Circulating fan Enclosed alloy low-noise motor, multi-vane centrifugal fan
Heating system Independent Nichrome electronic heating system
Exterior material Steel Plate with protective coating
Interior material SUS304 stainless steel
Safety System Electric leakage, short circuit, Over-temperature, motor overheating Over-current protection/ Power failure memory function for controller
Power supply 380V 50HZ
Standard IEC60529,ISO20653



Standard Features
  • Interior of Chamber is SUS304 stainless steel.
  • The air velocity for the blowing of dust is controlled by a dust blowing mechanism that includes a motor and blower combination
  • Dust re-cycle blowing by circulating pump.
  • Dust collection section is located on bottom of test chamber.
  • A heater fixed into test chamber to keep dust dry.
  • A viewing window with a manually controlled wiper.
  • Programmable color display touch screen controller which located on right side of chamber
  • A stainless steel shelf for placing test specimens.
  • Chamber inside equipped with power interface for test specimenTest chamber internal illumination
  • Vacuum system for specimen
  • Bottom install 4 castors for ease moving, and with brakes function

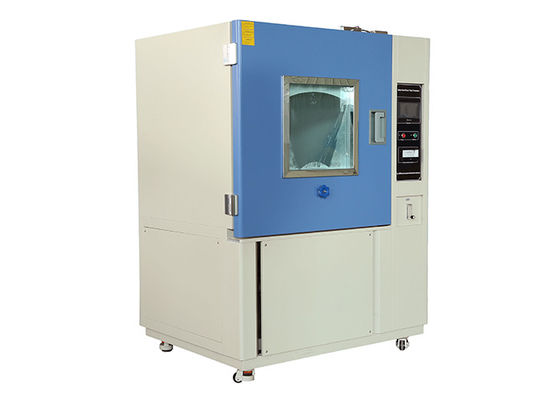

Dust Tight Artificial Climate Chamber / Vehicle Testing Talcum Powder Test 0

Design and Construction



Test Area & Shelf

Interior of Chamber is SUS304 stainless steel.

A stainless steel shelf for placing test specimens

Standard load of shelf is 50kg

Normal wire diameter is 50 um.

Normal width of a gap between wires is 75um.

Built-in power interface for test specimen

Test chamber internal illumination

Vacuum system for specimen



Control Panel

Programmable color touch display controller

99 programs 99 sections

R-232 interface

PC Link with software

Show total process time on controller.



Dust Circulation

During test, dust is blown in test area by motor and blower, and then fall in funnel, and re-cycle blowing by circulating pump to achieve dust circulation.

Bottom of chamber is fitted with blower, vacuum pump, motor.

Dust collection section is located on bottom of test chamber.



Vacuum System for Specimen

Bottom of dust chamber is fitted with vacuum pump, a pressure gauge, air filter, pressure regulator, connecting tube which one side to connect pump, one side connect to test specimen.

Adjust vacuum value on control panel.



Viewing Window

Large viewing window with wiper

Can observe samples during testing



Safety Protection

Earth leakage protection,

Short circuit

Over-temperature protection

Motor overheating protection

Over-current protection

Power failure memory function for controller



Schematic Diagram









Dust Tight Artificial Climate Chamber / Vehicle Testing Talcum Powder Test 1
