Vacuum Industrial Drying Oven Model VO-100 SUS316 Stainless Steel Material
Product Details:
| Place of Origin: | China |
| Brand Name: | LIB |
| Certification: | CE RoHS CSA |
| Model Number: | VO-300 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | USD2300 ~ USD86000 / SE |
| Packaging Details: | Wooden cases standard export package |
| Delivery Time: | 360 sets / quarter |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram,paypal |
|
Detail Information |
|||
| Vacuum Degree: | <133pa | Temperature Range: | 35℃ ～+350 ℃ |
|---|---|---|---|
| Interior Material: | SUS316 Stainless Steel | Timing Function: | 0.1~999.9 (S、M、H) Settable |
| Warranty: | 3 Years | After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Online Support |
| High Light: | heating and drying ovens,high temperature drying oven |
||
Product Description

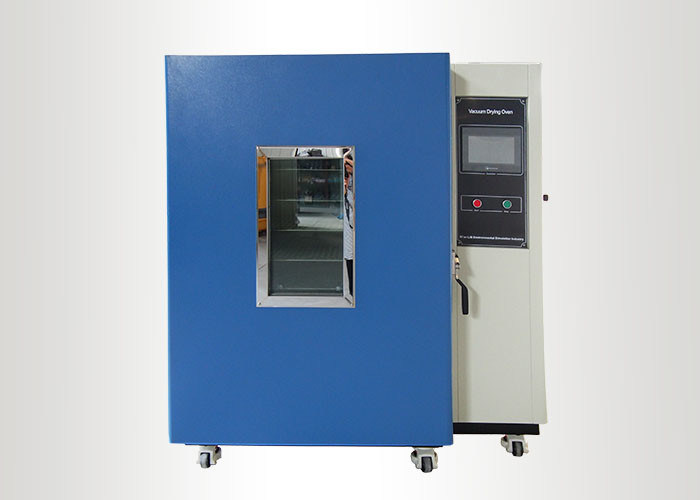

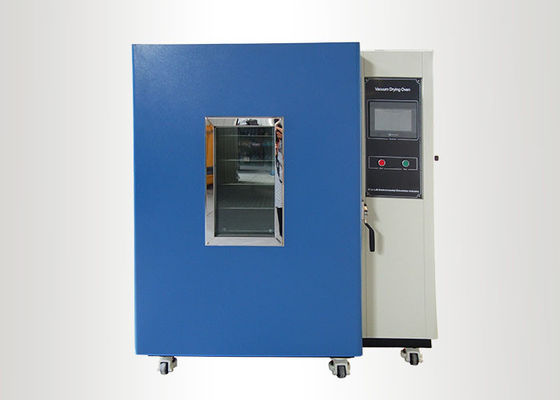

Chem-Dry Vacuum Drying Cabinet, Vacuum Drying Oven Model VO-100
Chem-Dry Vacuum Drying Cabinet, Vacuum Drying Oven is a kind of oven that drying materials
under negative pressure.It uses vacuum pump to extract the air and moisture in the test area of the oven, so that the test area forms a vacuum state, speed up drying.
Chem-Dry Vacuum Drying Cabinet, Vacuum Drying Oven Model VO-100 is widely used in paint, resins, plastics, printing and packaging, aluminum, adhesives, auto,
cosmetics, metals, electronics, electroplating, medicine, etc.
| Model | VO-300 |
| Workroom dimensions(mm) | 650x600×976 |
| Exterior dimensions(mm) | 1053×745×1020 |
| Temperature range | 35℃ ～+350 ℃ |
| Temperature fluctuation | ± 1°C |
| Temperature resolution | ±0.1°C |
| Vacuum degree | <133pa |
| Controller | Digital PID Temperature Controller |
| Sensor | PTR Platinum Resistance PT100 |
| Interior material | SUS316 stainless steel |
| Exterior material | Steel plate with protective coating |
| Timing Function | 0.1~999.9 (S,M,H) settable |
| Power Supply | AC 220V 50 |
Under Vacuum condition, the boiling point of materials solution is reduced. So to a certain amount of heat transfer, it saves the evaporator heat transfer area.
Heat source for operation of evaporation can use low-pressure steam or waste heat steam.
The heat loss of the evaporator can be reduced.
Used in drying of decompose and polymerize and deterioration of heat-sensitive materials at high temperature.
Before drying can be disinfected, the drying process were not mixed with any impurities
It is a static vacuum dryer, compact solid dry material is not damaged.
International high quality certification product chain
Manufacturer, more reasonable price
Solid technical support and after-sales service
Uphold the principle of “Customer Supreme”( Balance payment after equipments run normally)
Exports to more than 42 countries and regions, good customers feedback
One-stop service, customized exclusive project feasibility report
Xi’an LIB Environmental Simulation Industry is a manufacturer and exporter of climatic test chambers in China. We exported the first one test chamber since 2009, it is more than 10 years we work in environmental test chambers field.
LIB test chambers accept and approved by CE, CSA, RoHS, TUV, SGS and ISO17025 calibration.Once test Chambers completed, our engineers will commisioning ,calibrate,check and accept in our factory. After that pack, and arrange delivery.
More products welcome to consult!
Our main products included temperature and climate test chambers, corrosion chambers, weathering testers, IP dust and rain chambers, ozone test chamber, noxious gas SO2 H2S chamber, walk-in chambers.
