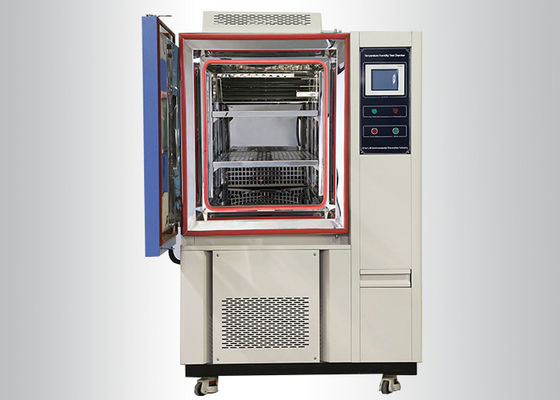

High Low Temperature Humidity Testing Equipment / Humidity Conditioning Chamber

High Low Temperature Humidity Testing Equipment / Humidity Conditioning Chamber

Product Details:

Place of Origin: CHINA
Brand Name: LIB
Certification: CAS,RoHS,CE
Model Number: TH-100

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: USD2800 ~ USD19000 / SET
Packaging Details: Wooden cases standard export package
Delivery Time: 3-10 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,paypal
Supply Ability: 360 sets / quarter
Get Best Price Contact Now

Detail Information

Low Type: -40℃/-70℃/ -86℃ Humidity Range: 20% ~ 98% RH
Temperature Range: -20℃ ~+150 ℃ Heating Rate: 3 ℃ / Min
Cooling Rate: 1 ℃ / Min Internal Dimension (mm): 400*500*500
High Light:

relative humidity chamber

,

humidity testing equipment

Product Description

High Low Temperature Thermal Cycle Laboratory Test Equipment With Programmable Control System

Description of High Low Temperature Test Equipment



High Low Temperature Thermal Cycle Laboratory Test Equipment is suitable for the safety performance test of the electronic components to provide reliability test, product selection test, and through this equipment test, can improve product reliability and quality control of products.Temperature Humidity Climatic Test Chamber Price is applied to test the materials in heat-resistance, cold-resistance, dry-resistance, moisture-resistance.



Application of High Low Temperature Test Equipment

High Low Temperature Thermal Cycle Laboratory Test Equipment used is for testing material heat, cold, dry resistance, humidity resistance.Suitable for electronics, electrical appliances,Communications, instrumentation, vehicles, plastic products, metal, food, chemical,building materials, medical, aerospaceand other products.



Product Highlights of High Low Temperature Test Equipment

Safety protection External material A3 steel plate4 mm), galvanized coating( 0.2 mm),Prevent static electricity,safer
Easy Operation Programmable color display touch screen controller.
Flexible approach for data collection and recording(RS-232 /RS-485 interface, PC Link, LAN,network,USB,Mobile APP)
High reliability Refrigerating unit is French TECUMSEH compressor
Free of Charge 2 pieces of adjustable and removable shelves
Video tutorial,testing software,etc.
After-sales Service 3 Years Warranty,Lifelong Follow-up Services,engineers on site service,Until the problem is solved



Main Technical Parameter

product size

Model

TH-100

Internal dimension (mm)

400*500*500

Overall dimension (mm)

860*1050*1620


Temperature and Humidity

Temperature range -20ºC ~+150 ºC
Temperature fluctuations ± 0.5 ºC
Temperature deviation ± 2.0 ºC
Temperature Resolution ± 0.001 ºC
Humidity range 20% ~ 98% RH
Humidity deviation ± 2.5% RH
Humidity Resolution ± 1%RH
Heating rate 3 ºC / min
Cooling rate 1 ºC / min


Product Details

Controller programmable color display touch screen controller
PC Link with software, R-232 interface
Temperature Sensor PTR Platinum Resistance PT100Ω/MV A-class
Humidity sensor Dry and wet bulb sensor
Heating system Independent Nichrome electronic heating system
Cooling system French TECUMSEH compressor
Humidification system External isolation, stainless steel surface evaporation humidifier
Dehumidification system Evaporator
Water supply system Automatic water supply, Water purification system, Water saving
Circulatory system Cold resistance and low noise centrifugal wind wheel
Exterior material Steel Plate with protective coating
Interior material SUS304 stainless steel
Insulation window Double thermo stability silicone rubber sealing
Standard configuration 1 Cable hole (Φ 50,) cover, 2 sets of shelf, 2 protector tubes, 1 overflow water tube,1 copy of operating specification
Timing Function 0.1~999.9 (S,M,H) settable
Power Supply AC220V 50HZ
Ambient Temperature 5ºC~+40 ºC ≤85% RH
Standard IEC60068-2-1;IEC60068-2-2;GB/T2423.1-2001; GB/T2423.2-2001

High Low Temperature Humidity Testing Equipment / Humidity Conditioning Chamber 0



Key Features of High Low Temperature Test Equipment

  • Temperature control and display unit
  • Humidity control and display unit
  • Programmable color LCD touch screen controller
  • Mechanical compression refrigeration system
  • Build-in water tank & automatic water supply
  • USB and Ethernet
  • Adjustable and removable sample shelves
  • Safety protection system
  • Temperature accuracy 0.1℃
  • Different models



Design and Construction of High Low Temperature Test Equipment



Test Area

Material of the test cabinet is high quality SUS304 stainless steel.

Test hole (Φ 50mm, Φ125mm), sealed with silicone screw plug.

Temperature sensor Pt100 platinum

Humidity sensor dry and wet bulb

2 pieces of adjustable and removable shelves



Air Circulation

3 Air circulation fans in the workroom of the chamber.

The real wall of test area equipped with chip-type wind board.

Air flowing from top of wind board which control air direction return to air inlet to achieve air circulation.



Cooling System

Mechanical compression refrigeration system

Refrigerating unit is French TECUMSEH compressor.

Two cascade compressor

Environment friendly refrigerant R404a for first stage,

R23 for the second stage



Humidity System

External isolation, stainless steel surface evaporation humidifier

Automatic water supply



Control Panel

PLC controller

Programmable color display touch screen controller.

Programs reach to 999 groups and 999 sections

RS-232 /RS-485 interface, PC Link, LAN network



Large Viewing Window

Interior lighting

Window coated with conducting film to protect it from frost.

Size is 250*300mm W*H.



Packing & Shipping

  • Export Standard Wooden Box
  • Can be used for Sea, Air, Railway, Truck transportation
  • Package size: 2.55CBM, gross weight: 310kg

High Low Temperature Humidity Testing Equipment / Humidity Conditioning Chamber 1
