380V 50Hz Environmental Testing Equipment IEC60529 IPX3 IPX4 Rainfall Test Lab Equipment

380V 50Hz Environmental Testing Equipment IEC60529 IPX3 IPX4 Rainfall Test Lab Equipment

Product Details:

Place of Origin: China
Brand Name: LIB
Certification: CE,ROHS,ISO17025
Model Number: R-800

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Packaging Details: Wooden cases standard export package
Delivery Time: 5-8days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,Paypal
Supply Ability: 180Sets/ Quarter
Get Best Price Contact Now

Detail Information

Oscillating Tube Radius: 400mm Spraying Hole Diameter: φ0.4mm
Standard: IEC 60529, ISO20653 Maximum Noise: 65 DBA
Power Supply: 380V 50Hz Swing Angle Of Oscillating Tube: 0 ~ ±180° (Adjustable)
High Light:

high pressure test chamber

,

water ingress testing equipment

Product Description



LIB Environmental IEC60529 IPX3 IPX4 Rainfall Test Lab Equipment

♦ Basis information of LIB Environmental IEC60529 IPX3 IPX4 Rainfall Test Lab Equipment

LIB Environmental IEC60529 IPX3 IPX4 Rainfall Test Lab Equipment can perform tests in accordance with IEC60529, and IPX1 IPX2 IPX3 IPX4 protection code. The chambers built with the water-tightness of sealed components such as a headlamp, Power connector. A waterproof power connector in the test room can easily supply electricity to the specimens.

♦ Application of LIB Environmental IEC60529 IPX3 IPX4 Rainfall Test Lab Equipment

 LIB Environmental IEC60529 IPX3 IPX4 Rainfall Test Lab Equipment built with a water re-circulation system that reduced water use and a series of water pipes. The incorporated rotating turntable can promote even spray of water over the surface of the products under testing. The automatic water supply ensures an adequate supply of water and automatic testing. All models are upgraded to programmable controller and Ethernet access that provides simple operation and control. Various size and configuration to suit many types of test conditions.

♦ Characteristics of LIB Environmental IEC60529 IPX3 IPX4 Rainfall Test Lab Equipment

1. Combined one chamber to do IPx1 IPx2 IPx3 IPx4 IP Rating tests

2. Capacity of 729 liters and 2700 liters, standard, and Cu

3. Protection against drip, spraying and splashing water

4. Control and adjust the water flow

5. Automatic water supply

6. Programmable color display touch screen controller

7. USB and Ethernet can download test data

8. A viewing window with wiper view clearly

9. Safety protection system

10. CE mark

♦ Main parameters of LIB Environmental IEC60529 IPX3 IPX4 Rainfall Test Lab Equipment

Name

LIB Environmental IEC60529 IPX3 IPX4 Rainfall Test Lab Equipment

Model

R-800C

R-1200C

Internal Dimensions (mm)

900*900*900

1400*1400*1400

Overall Dimensions (mm)

1120*1460*1660

1600*1950*2100

Interior Volume (L)

720

2740

Drip tray size (mm)

600*600

900*900

Spraying Hole Diameter

φ0.4mm

Hole Spacing

50 mm

Swing Angle of Oscillating Tube

0 ~ ±180° (Adjustable)

Turntable Rotation Speed

1r/min (Adjustable)

Oscillating Tube Radius

400mm

600mm

Water Pressure Control

Flowmeter

Controller

Programmable color LCD touch screen controller Ethernet connection, PC Link

Water supply system

Water tank, booster pump, Automatic water supply, Water purification system

Safety Device

Over-temperature Protection; Over-current Protection;

Water Shortage Protection; Earth leakage Protection; Phase Sequence Protection

Exterior Material

Steel Plate with a protective coating

Interior Material

SUS304 stainless steel

Observation Window

Double layer insulating glass with wiper

Power Supply

380V 50Hz

Maximum Noise

65 dBA

Environmental Conditional

5℃~+35 ℃ ≤85% RH

Standard

IEC 60529, ISO20653

♦FAQ

1. Can you ship quickly?

-- Our delivery period is 3-21 days. Some of the hot-selling types of equipment are in stock and can be shipped within 1-3 days.

2. How long is the warranty period?

-- Warranty period is 3 years, free service for the life

3. What are the payment methods?

-- Payment methods are T/T, Paypal, L/C, VISA

4. Is there a door to door service?

-- Yes, there is the door to door service. We will arrange a one-stop service.

5. How do you calibrate the equipment?

--We have our own calibration and third-party calibration such as ISO17025.

6. What is the packaging?

-- Standard export wooden box packaging, solid and firm.

7. What are the modes of transportation?

- Air, sea, rail, multimodal transport.

8. Can I install and debug calibration on-site?

-- Yes, we can send technicians and engineers to the customer site for installation, commissioning and calibration.

9. Can you send engineers to our company?

--Yes, sure. We will communicate in advance to facilitate the bringing of tools and components.

10. Can we come to your factory to study and train?

-- Welcome to our factory for study and training, we provide this service free of charge.

11. Do you have an agent?

-- Currently, we have agents in Europe, Asia, North America, South Africa, and can provide sales and technical services.

12. How to provide after-sales service?

-- At first, our test chambers are produced based on 20 years product lifetime. Normally once test chambers have problems, we judge the problems, and send spare parts to our customers, and teach them how to change new parts by email or video. Within 3 years, all spare parts and shipping costs (by DHL, TNT, and FedEx) paid by our company LIB.

If customers need our engineers' on-site service, the company only needs to pay the ticket accommodation to our engineers, service is for free.

♦Main details of  LIB Environmental IEC60529 IPX3 IPX4 Rainfall Test Lab Equipment

380V 50Hz Environmental Testing Equipment IEC60529 IPX3 IPX4 Rainfall Test Lab Equipment 0

1. Drip Tray

The drip tray is made of stainless steel, and the drip holes are evenly distributed.

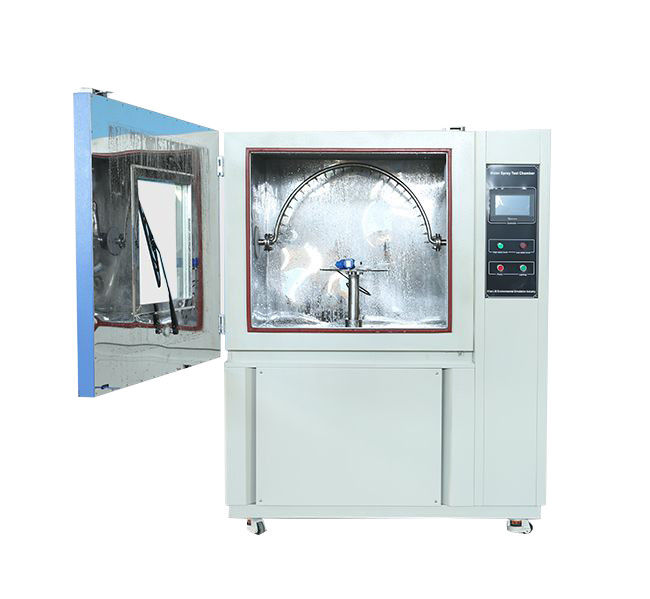

2. Oscillating Tube

Oscillating tube is made of stainless steel, spray nozzle is detachable special nozzle.

Oscillating tube range can be reached to ±45°, ±60°, ±90°, ±180°

380V 50Hz Environmental Testing Equipment IEC60529 IPX3 IPX4 Rainfall Test Lab Equipment 1

3. Controller

PID programmable color touch screen controller, network connection computer.

Can edit 120 programs 20 segments..

LIB also can preset the program into the controller based on user testing requirements.

The set system language is English for standard.

4. Build-in lighting

The built-in waterproof LED lighting inside the workroom makes it clear to observe the test specimen. The light can be turned on and off at the control panel button.
