Standard IP6X Dust Control Equipment Dust Resistance IP Test Device ROHS
Product Details:
| Place of Origin: | China |
| Brand Name: | LIB |
| Certification: | CE,ISO17025,ROHS |
| Model Number: | DI-1500 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Packaging Details: | Wooden cases standard export package |
| Delivery Time: | 5-14days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram,Palpay |
| Supply Ability: | 160 Sets/ Quarter |
|
Detail Information |
|||
| Normal Wire Diameter: | 50um | Normal Width Of A Gap Between Wire: | 75um |
|---|---|---|---|
| Standard: | IEC 60529,ISO 20653 | Fight Time: | 0~99H59M |
| Specimen Power Outlet: | Dust-proof Socket 16A | Temperature Range: | Ambient ~ +50℃ |
| High Light: | sand testing machine,dust testing equipment |
||
Product Description

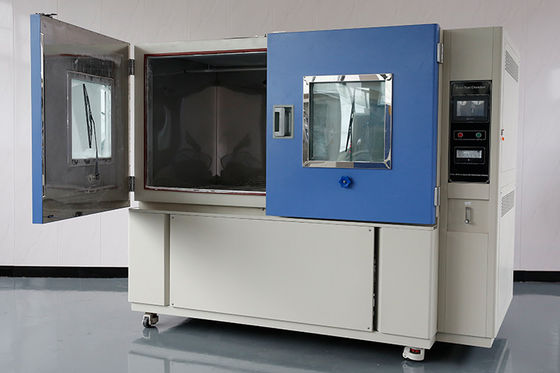

Standard IP6X Sand Dust Controlled Test Cabinets Dust Resistance IP Test Device
Standard IP6X Sand Dust Controlled Test Cabinets Dust Resistance IP Test Device to be tested for dustproof performance and IP dustproof grade: Communication products, Automobile parts.such as automobile rearview mirror, automobile acoustics, automobile electronics, automobile lighting, automobile lamps, motorcycle lamps, motorcycle rearview mirror, Outdoor lighting and signal devices.
1. IEC60529, ISO20653 standard performed
2. Internal illumination in the test room
3. Viewing window with wiper
4. Build-in power interface and vacuum system for specimens
5. USB and Ethernet
6. CE mark
7. Dust blowing through the special wind tunnel and air outlet
8. Multi-language interface
|
Name |
IP6X Sand Dust Controlled Test Cabinets Dust Resistance IP Test Device |
|||
|
Model |
DI-800 |
DI-1000 |
DI-1500 |
DI-2000 |
|
Internal Dimension (mm) |
800*1000*1000 |
1000*1000*1000 |
1000*1500*1000 |
1000*2000*1000 |
|
Overall Dimension (mm) |
1040*1450*1960 |
1200*1450*1960 |
1250*1900*1960 |
1300*2400*1960 |
|
Temperature Range |
Ambient ~ +50℃ |
|||
|
Humidity Range |
< 30% RH |
|||
|
Normal Wire Diameter |
50um |
|||
|
Nominal Width of a Gap Between wires |
75um |
|||
|
Fight Time |
0 ~ 99H59M |
|||
|
Blowing Time |
0 ~ 99H59M |
|||
|
Specimen Power Outlet |
Dust-proof socket 16A |
|||
|
Vacuum System |
Equipped with a pressure gauge, air filter, pressure regulator, connecting tube |
|||
|
Maximum Noise |
65 dBA |
|||
|
Environmental Conditional |
5℃～+35 ℃ ≤85% RH |
|||
|
Door Lock |
Electromagnetic lock |
|||
|
Safety Device |
Over-temperature Protection; Over-current Protection; Earth Leakage Protection；Phase Sequence Protection |
|||
|
Observation Window |
Interior lighting, double-layer thermostability silicone rubber sealing |
|||
|
Standard configuration |
Sample shelf, dust wiper, talcum powder(5kgs) |
|||
|
Power Supply |
380V 50Hz |
|||
|
1. Workroom The internal material is 304 stainless steel, mirror surface, rust-proof, high temperature and corrosion resistance;
2. Viewing window Double-layer tempered glass, specially designed seal, with good impact resistance and prevention of sand and dust leakage.
3. Controller PID programmable color touch screen controller, network connection computer. Can edit 120 programs 20 segments. LIB also can preset the program into the controller based on user testing requirements.
4. Vacuum System for Specimen Bottom of dust chamber is fitted with vacuum pump, a pressure gauge, air filter, pressure regulator, connecting tube which one side to connect pump, one side connect to test specimen. |
1. At first, our test chambers are produced based on 20 years product lifetime.
2. If the customer needs our engineer on-site service, they only need to pay the ticket accommodation to our Engineers, service is for free.
3. If products still can't use after our engineers' repair, we will produce a new test chamber (same as the old one) to our customers with no charge.
1. Seal chamber with waterproof plastic film. Protect chamber from seawater corrosion.
2. Buffer foam is placed in the four corners of the chamber.
3. Standard wood export packaging.
Gross weight: 600kgs~
Package size: 2100*1400*2300 mm
It can be used for Sea, Air, Railway, Truck, and multimodal transport.
1. Can you ship quickly?
-- Our delivery period is 3-21 days. Some of the hot-selling equipments are in stock and can be shipped within 1-3 days.
2.What are the payment methods?
-- Payment methods are T/T, Paypal, L/C, VISA
3. Is there a door to door service?
-- Yes, there is door to door service. We will arrange a one-stop service.
4. How do you calibrate the equipment?
--We have our own calibration and third-party calibration such as ISO17025.
5. Can I install and debug calibration on site?
-- Yes, we can send technicians and engineers to the customer site for installation, commissioning and calibration.
6. Can you send engineers to our company?
--Yes, sure. We will communicate in advance to facilitate the bringing of tools and components.
7. Can we come to your factory to study and train?
-- Welcome to our factory for study and training, we provide this service free of charge.
8. Do you have an agent?
-- Currently we have agents in Europe, Asia, North America, South Africa, and can provide sales and technical services.
Our main products included temperature and humidity test chambers, Corrosion salt chambers, Accelerated weathering chambers, IP dust&rain chambers, Ozone test chamber, Noxious gas SO2 H2S chambers.
