Indsutrial UV Weathering Test Chamber For Materials Testing 65 DBA Maximum Noise

Indsutrial UV Weathering Test Chamber For Materials Testing 65 DBA Maximum Noise

Product Details:

Place of Origin: China
Brand Name: LIB
Certification: CE,ROHS,ISO-17025
Model Number: UV-SI-260

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: 1
Packaging Details: Wooden Cases Standard Export Package
Delivery Time: 5-14 Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,Paypal
Supply Ability: 410Sets
Get Best Price Contact Now

Detail Information

Bandwidth: 290~400mm Irradiance Control: 0.3~20 W/㎡
Distance Of Specimen And Lamp: 50mm Maximum Noise: 65 DBA
Specimen Capacity: 56 Pieces Irradiation Source: Fluorescent UV Lamps (8) - 40 W
High Light:

uv weather resistance test chamber

,

accelerated uv testing equipment

Product Description

UV Light Accelerated Weather Proofing Tester for Materials Testing

► Description Of UV Light Accelerated Weather Proofing Tester for Materials Testing

UV Light Accelerated Weather Proofing Tester for Materials Testing Accelerated weathering is the simulation of the damaging effects of long term exposure of coatings, materials, and products to outdoor conditions. There are a number of different types of outdoor conditions accelerated weathering addresses, including wind, rain, icing, sand and dust, and of course, UV exposure.

► Advantages Of UV Light Accelerated Weather Proofing Tester for Materials Testing

1. Fluorescent UV lamps (8) – 40 W
2. Black Panel Temperature (BPT) at controlled, BPT 30~70℃
3. Temperature from Ambient to +90℃
4. Build-in water tank and automatic water supply
5. Programmable color display touch screen controller
6. Ethernet and USB
7. Easy to mount samples
8. Sample holders and casters are standard
9. Safety protection system
10. CE and RoHS compliance

► Parameter Of UV Light Accelerated Weather Proofing Tester for Materials Testing

Name UV Light Accelerated Weather Proofing Tester for Materials Testing
Model UV-260 UV-SI-260

Internal Dimension (mm)

452*1170*500 450*1170*500

Overall Dimension (mm)

680*1300*1500 680*1300*1500

Specimen Holder Size(mm)

75*150

Controller

Programmable color LCD touch screen controller
Ethernet connection, PC Link,USB

Temperature Range

Ambient ~ 90 ℃ ±2℃

Black Panel Temperature (BPT)

35 ~ 80 ℃

Bandwidth

290 ~ 400nm

Irradiance Control

N/A

0.3~20 W/㎡(340nm/313nm)

Standard

ISO4892-1,ISO4892-3, ASTM G154, ASTM D4329, ASTM D458, ASTM C125, ASTM C1442, ASTM C1519, ASTM C793, ASTM D1148, ASTM D3424, ASTM D3451, ASTM D410, ASTM D481, ASTM D657, ASTM D6662, ASTM D750, ASTM D904, GM 9125P, ISO 29664

Water Spray Cycle

1~9999H59M (Adjustable)

Distance of Specimen and lamp

50mm

Power Supply

380V 50Hz

Maximum Noise

65 dBA

► Other Details Of UV Light Accelerated Weather Proofing Tester for Materials Testing

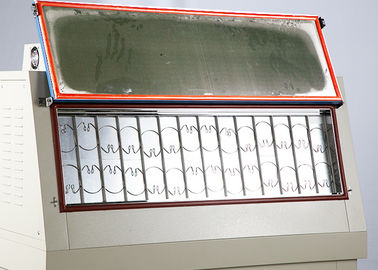

Indsutrial UV Weathering Test Chamber For Materials Testing 65 DBA Maximum Noise 0
1. Sample Self
Flat specimen holders, aluminum panels with rings.
Each specimen size is 75mm * 150mm, can hold 56 pieces.
Special sample holder can be customized
2. Controller
PID programmable color touch screen controller, network connection computer. Can edit 100 programs 20 segment.
LIB also can preset program into the controller based on user testing requirements.The set system language is English for standard.

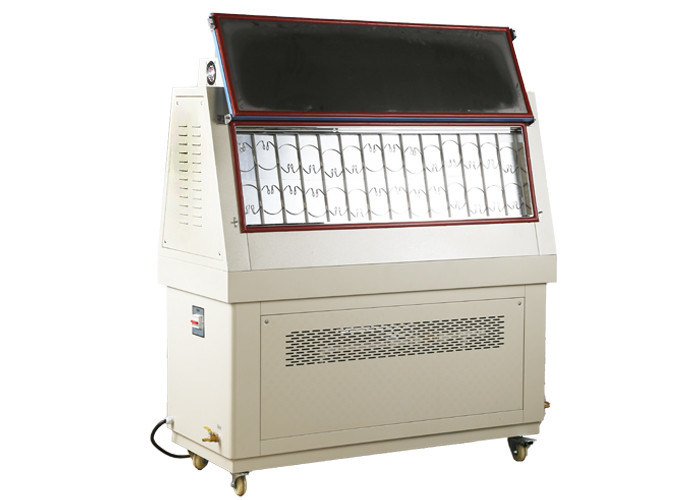

Indsutrial UV Weathering Test Chamber For Materials Testing 65 DBA Maximum Noise 1

3. UV Lamp
UVA 340 nm and UVB 313 nm fluorescent UV lamps are available for the UV Test. The chamber is equipped with total of 8 lamps, each 40W.
Easy to change lamps

4. Water Spray
The water spray pipe is equipped with ten nozzles, the diameter of the nozzle is 0.5mm, the settlement is 0.8 ~ 1.0mm / 80cm2 / H, and the flow rate is 0.3L / min, which simulates outdoor moisture damage to the material.



► Standards



There are a number of standards which include accelerated weathering requirements.

1. ASTM G151, Standard Practice for Exposing Nonmetallic Materials in Accelerated Test Devices that Use Laboratory Light Sources
2. ASTM G154 testing, Standard Practice for Operating Fluorescent Light Apparatus for UV Exposure of Non-Metallic Materials. ASTM G154 testing uses fluorescent light sources to simulate UVA and UVB
3. ASTM G155 Practice for Operating Xenon Arc Light Apparatus for Exposure of Non- Metallic Materials. ASTM G155 testing uses xenon arc UV light sources to simulate exposure to natural sunlight.
4. GB/T 14522 – Artificial Weathering Test Method for Plastics, Coatings, and Rubber Materials used for Machinery Industrial Products – Fluorescent UV Lamps
5. SAE J2020, Accelerated Exp. of Automotive Exterior Materials Using a Fluorescent UV/Condensation Apparatus
6. MIL-STD-810 Section 505.5 –Solar Radiation



► Packaging and Delivery

1. packing:Wooden cases standard export package

2. Price terms: EXW, FOB,CIF Shanghai or Shenzhen.
3. Payment terms: L/C. Western Union. Paypal. T/T,
4. Sample lead time: 3-8 days
5. Mass production time: 10-15 days depending on the order qty
6. Delivery method time: By air, by sea or combined transportation,
7. Door to door service with Express: Fedex, DHL, UPS, EMS



► FAQ



1. Can I install and debug calibration on site?
-- Yes, we can send technicians and engineers to the customer site for installation, commissioning and calibration.



2. Can you send engineers to our company?
--Yes, sure. We will communicate in advance to facilitate the bringing of tools and components.

3. Can we come to your factory to study and train?
-- Welcome to our factory for study and training, we provide this service free of charge.



4. Do you have an agent?
-- Currently we have agents in Europe, Asia, North America, South Africa, and can provide sales and technical services.



5. Can you ship quickly?

-- Our delivery period is 3-21 days. Some of the hot-selling equipments are in stock and can be shipped within 1-3 days.



6. How long is the warranty period?
-- Warranty period is 3 years, free service for life
