Product Description

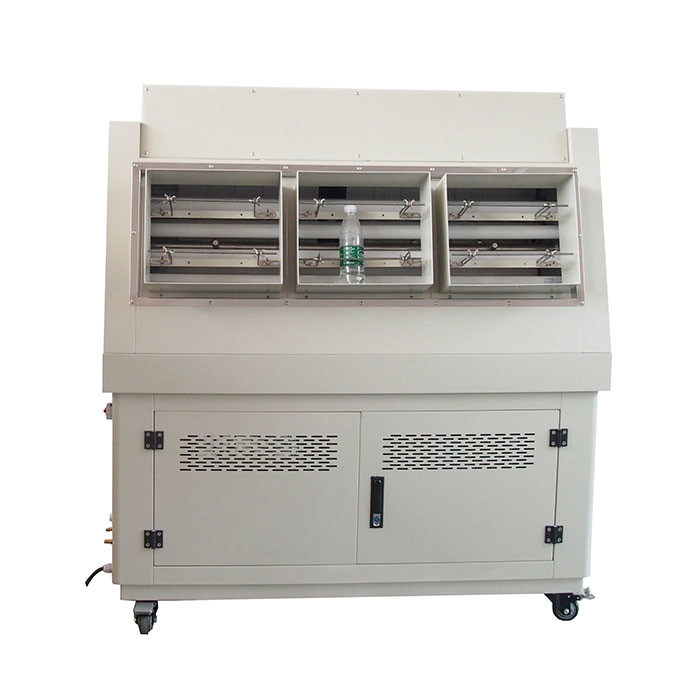

UV Weathering Test Chamber



Description


UV weathering test chamber is widely used to evaluate the weather resistance of materials, and can provide the best sunshine uv,to simulate the sun, rain spray and condensation resulting damage to test the materials by exposure to sunlight with moisture and temperature.



UV aging weathering test chamber apply to dyestuff chemical leather shoe material outdoor supplies building materials Home testing organization research and quality control other industries



Technical Specification

Name

UV Weathering Test Chamber

Model

UV-260

UV-SI-260

Internal Dimension (mm)

452*1170*500

450*1170*500

Overall Dimension (mm)

680*1300*1500

680*1300*1500

Specimen Holder Size(mm)

75*150

Controller

Programmable color LCD touch screen controller
Ethernet connection, PC Link,USB

Temperature Range

Ambient ~ 90 ℃ ±2℃

Black Panel Temperature (BPT)

35 ~ 80 ℃

Bandwidth

290 ~ 400nm

Irradiance Control

N/A

0.3~20 W/㎡(340nm/313nm)

Standard

ISO4892-1,ISO4892-3, ASTM G154, ASTM D4329, ASTM D458, ASTM C125, ASTM C1442, ASTM C1519, ASTM C793, ASTM D1148, ASTM D3424, ASTM D3451, ASTM D410, ASTM D481, ASTM D657, ASTM D6662, ASTM D750, ASTM D904, GM 9125P, ISO 29664

Water Spray Cycle

1~9999H59M (Adjustable)

Distance of Specimen and lamp

50mm

Power Supply

380V 50Hz

Maximum Noise

65 dBA



Design Details


ISO4892-1 Uv Light Accelerated Weathering Tester LCD touch screen controller 0 ISO4892-1 Uv Light Accelerated Weathering Tester LCD touch screen controller 1
8 UVA/UVB Lamp 2D or 3D Custom sample shelf



Features


1.Alarm and protection: water-breaking protection,overloading protection,security door protection,over-temperature protection switch .

2.According with many testing standards. The operator set any testing program

3.Controlled by touch screen with friendly windows, user can check any parameter during test

4.uv aging test apparatus real-time collect and store data

5.UV weathering test chamber can select Ethernet interface, the user can tele-control the machine through enternet.

6.Control the temperature automatically with the high precise Pt 100 temperature sensor of black board.



Standards


UV accelerated weathering test chamber meets the standard test

■EN 927-6

Paints and varnishes - Coating materials and coating systems for exterior wood - Part 6: Exposure of wood coatings to artificial weathering using fluorescent UV and water.

■ISO 11997-2

Paints and varnishes - Determination of resistance to cyclic corrosion conditions - Part 2: Wet (salt fog)/dry/humidity/UV light.

■ISO 16474-3

Paints and varnishes - Methods of exposure to laboratory light sources - Part 3: Fluorescent UV lamps.

■ISO 4892-3

Plastics - Methods of exposure to laboratory light sources - Part 3: Fluorescent UV-lamps.

■EN 1062-4

Paints and varnishes - Coating materials and coating systems for exterior masonry - Part 4: Preconditioning of exterior coatings to UV radiation and water in apparatus.

■SAE J2020

Accelerated Exposure of Automotive Exterior Materials Using a Fluorescent UV and Condensation Apparatus.

ISO4892-1 Uv Light Accelerated Weathering Tester LCD touch screen controller 2
