Environmental UV Aging Test Chamber With UVA 340 UVB 313 Lamp

Environmental UV Aging Test Chamber With UVA 340 UVB 313 Lamp

Product Details:

Place of Origin: China
Brand Name: LIB
Certification: CE,ROHS,ISO17025
Model Number: UV-SI-260

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Packaging Details: Wooden Cases Standard Export Package
Delivery Time: 5-14 Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,Paypal
Supply Ability: 410Sets
Get Best Price Contact Now

Detail Information

Application: Light Fixture, Plastic Case UV Lamp: UVA 340,UVB 313
BPT: 35℃~80℃ Irradiance Control: 0.3~20 W/㎡
Irradiation Source: Fluorescent UV Lamps (8) - 40 W Bandwidth: 290 ~ 400nm
High Light:

Environmental UV Aging Test Chamber

,

UVA 340 UV Aging Test Chamber

,

UVB 313 accelerated aging chamber

Product Description

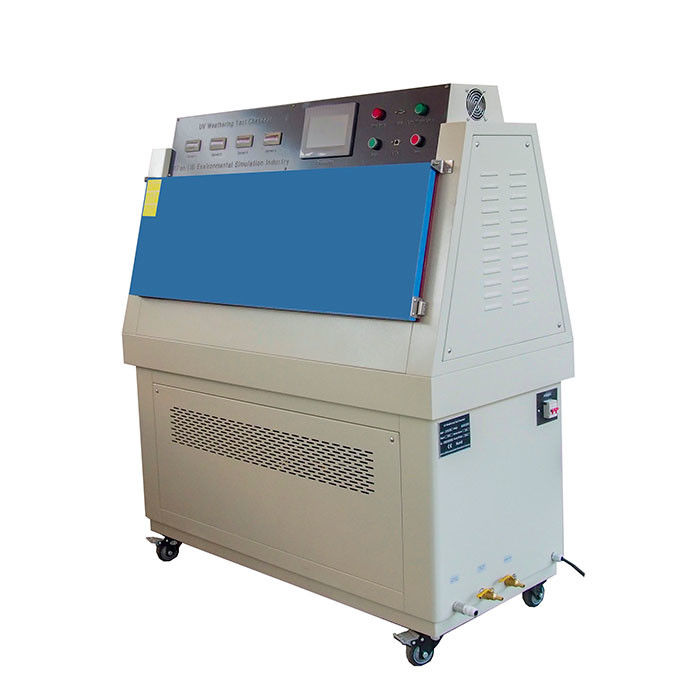

Environmental UV Aging Test Chamber



Description


Environmental uv aging test chamber uses UVA-340, UVB-313, or UVA-351 fluorescent bulbs for a variety of applications. The touch screen provides simple operation and control in several languages.



UV aging test chamber has patented irradiance ports for safe calibration not offered on competitive fluorescent UV testers.


Technical Specification

Name

Environmental UV Aging Test Chamber

Model

UV-260

UV-SI-260

Internal Dimension (mm)

452*1170*500

450*1170*500

Overall Dimension (mm)

680*1300*1500

680*1300*1500

Specimen Holder Size(mm)

75*150

Controller

Programmable color LCD touch screen controller
Ethernet connection, PC Link,USB

Temperature Range

Ambient ~ 90 ℃ ±2℃

Black Panel Temperature (BPT)

35 ~ 80 ℃

Bandwidth

290 ~ 400nm

Irradiance Control

N/A

0.3~20 W/㎡(340nm/313nm)

Standard

ISO4892-1,ISO4892-3, ASTM G154, ASTM D4329, ASTM D458, ASTM C125, ASTM C1442, ASTM C1519, ASTM C793, ASTM D1148, ASTM D3424, ASTM D3451, ASTM D410, ASTM D481, ASTM D657, ASTM D6662, ASTM D750, ASTM D904, GM 9125P, ISO 29664

Water Spray Cycle

1~9999H59M (Adjustable)

Distance of Specimen and lamp

50mm

Power Supply

380V 50Hz

Maximum Noise

65 dBA


Design Details


Environmental UV Aging Test Chamber With UVA 340 UVB 313 Lamp 0 Environmental UV Aging Test Chamber With UVA 340 UVB 313 Lamp 1
Programmable Controller UV Lamp and Black Panel(BPT)




Characteristic


LIB UV resistant test chamber

LIB use QUV lamp, easy to replace, easy to buy

Provides high amounts of UV exposure to the test samples

Correlates to traditional test methods

UV aging test chamber execute programmable cycles

Spray, dew, temperature, humidity



Standards


●ASTM G154

ASTM G154 UV test chamber,Standard Practice for Operating Fluorescent Light Apparatus for UV Exposure of Nonmetallic Materials

●DIN EN 12224

Geotextiles and geotextile-related products - Determination of the resistance to weathering

●DIN EN 1297

Flexible sheets for waterproofing - Bitumen, plastic, and rubber sheets for roofing - Method of artificial ageing by long term exposure to the combination of UV-radiation, elevated temperature and water

●DIN EN 13523-10

Coil coated metals - Test methods - Part 10: Resistance to fluorescent UV light and water condensation



Environmental UV Aging Test Chamber With UVA 340 UVB 313 Lamp 2
