IEC60529 IPX8 Test Equipment Universal Testing Machine
Product Details:
| Place of Origin: | china |
| Brand Name: | LIB |
| Certification: | IEC60529,CE,RoHS, |
| Model Number: | IPX7 IPX8 Test Chamber |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Packaging Details: | Wooden cases standard export package |
| Delivery Time: | 3-16 days ( check if have stock) |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram,paypal |
| Supply Ability: | 360 sets / quarter |
|
Detail Information |
|||
| Method Name: | IPX8 Test Equipment | Standard: | IEC60529 |
|---|---|---|---|
| Usage: | Universal Testing Machine,Auto Testing Machine,Textile Testing Instrument,Rain Water Spray Test Chamber,Lab And Medical Test | Testing Time: | 30 Min |
| Warranty: | 3 Years | Power: | Electronic,220V |
| High Light: | IEC60529 IPX8 Test Equipment,ss304 IPX8 Test Equipment,IEC60529 rain spray test chamber |
||
Product Description
Description

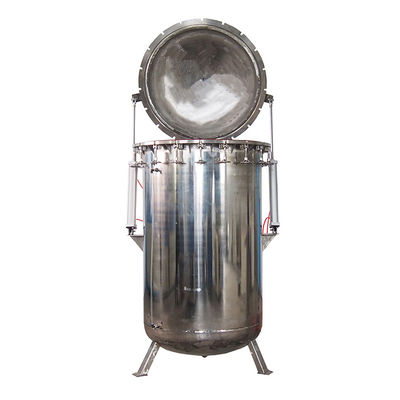

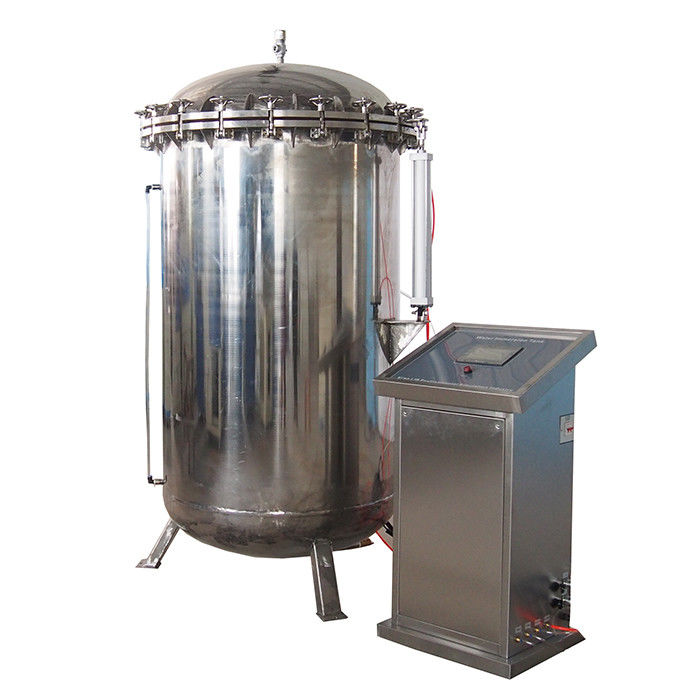

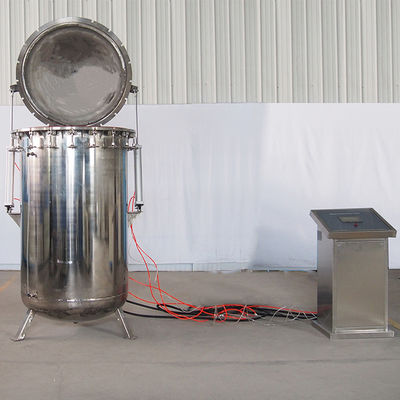

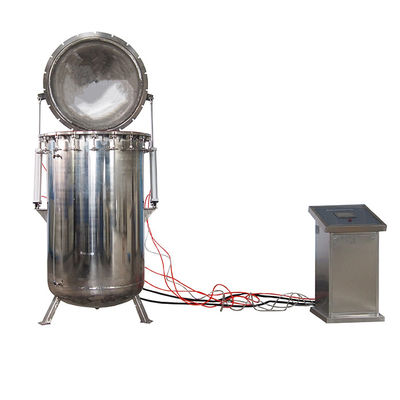

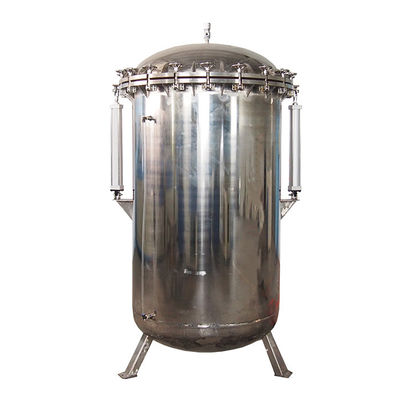

IPX8 test equipment used to test anti-rain and water-proof performance for products, the products such as steam locomotive lamps, wiper performance, waterproof bands, motorcycle instruments, defense industry, navigation systems, missiles, radar cone top, aerospace industry etc.
Main Technical Parameter
|
Name |
IPX8 Test Equipment |
|
Internal dimension |
Diameter 600mm *Height 1500mm. |
|
Chamber material |
SUS#304, thickness 2.5mm |
|
Water depth |
Simulate 50m depth by air compressor |
|
Water pressure |
Ambient to 0.5MPa, pressure gauge accuracy 0.25 degree |
|
Timer |
0 ~ 99min, 99sec |
|
Sample lift device |
Portable stainless steel basket |
|
Water level display |
Water pipe with scale |
|
Open mode |
pneumatic lift with safety lock. |
|
Protection device |
Pressure protection and anti-explosive device, water drain and pressure release device |
|
Safety protection |
Power overload protection, short circuit protection, grounding protection, alarm display |
|
Nominal power |
3500W |
|
Power Supply |
AC380V 50HZ |
Configuration
|
|
|
|
Test Area |
Footstand |
|
|
|
|
Control Panel |
Safe Lock |
Introduction
1.IPX7 water test chamber is applied for workshop.lab.etc to test Waterproof arade test IPX7 and IPX8
2. IPX8 Test duration: continuous immersion in water.Depth 0-30M or 0-50M specified by manufacturer
3.Humanization design,45 degree bevel,easy operation.
4.ipx7 test equipment equip safe valve is to prevent the misoperation and decompression
5.Test time:0-999mins. It can decompress the air pressure and stop air pressure supply.
Types of IPX Rain Spray Test Chamber
IPX1/2 vertical drop test equipment (with rotating machine and tilt sample samples machine);
IPX3/4 automatic arranging the pouring water test equipment (with automatic turntable);
IPX3/4 handheld drench water test equipment (with lift stents);
IPX5/6 hosing test equipment (D 6.3 mm, D 12.5 mm nozzle);
IPX7/8 and the waterproof ipx7 test equipment (with water temperature control and 10 atmospheric pressure adjustable);
IPX9k,The high pressure and high temperature testing chamber
