ISO20653 IPX4 Test Chamber Electronic Electrical Products
Product Details:
| Place of Origin: | China |
| Brand Name: | LIB |
| Certification: | CE,ROHS, |
| Model Number: | R-1200 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Packaging Details: | Wooden cases standard export package |
| Delivery Time: | 3-10 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram,Paypal |
| Supply Ability: | 140 Sets/ Quarter |
|
Detail Information |
|||
| Type: | IPX3 Test IPX4Test | Standard: | IEC 60529, ISO20653 |
|---|---|---|---|
| Water System: | Water Circulation System | Interior Material: | SUS304 Stainless Steel |
| Application: | Lamps, Electric Cabinets; | Controller: | Programmable Controller |
| High Light: | ISO20653 IPX4 Test Chamber,Electronic IPX4 Test Chamber,ISO20653 IPX4 Chamber |
||
Product Description

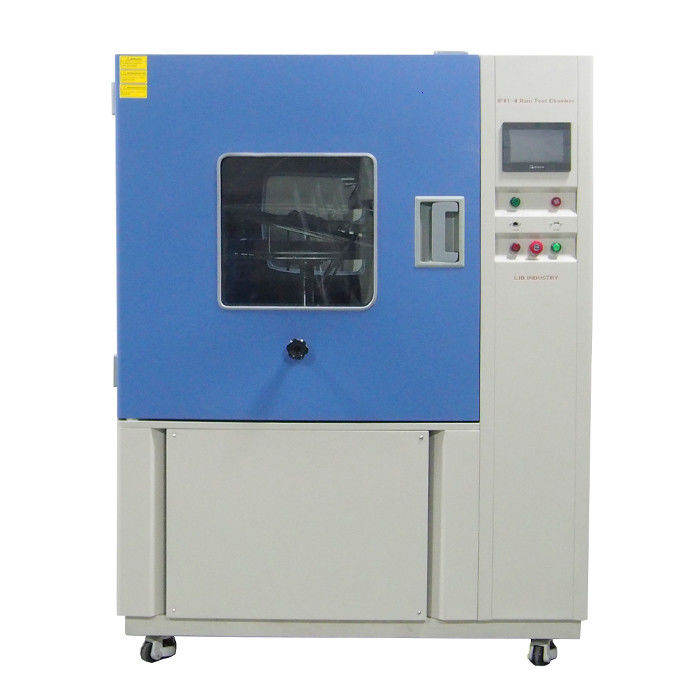

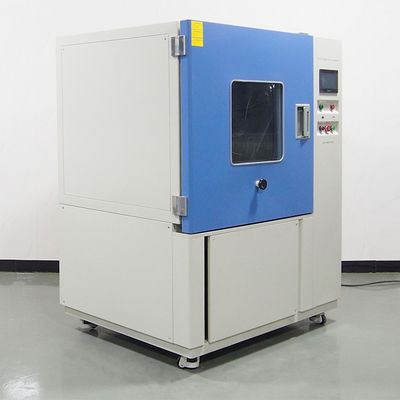

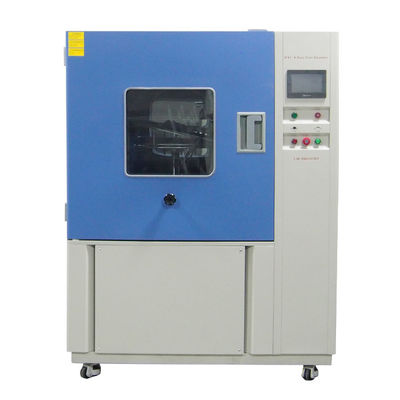

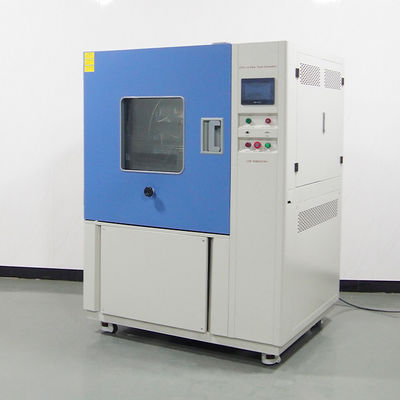

IPX4 Test Chamber
IPX4 test chamber is for testing electronic and electrical products, lamps, electric cabinets, electrical components, automobiles, motorcycles and their parts and components’ physical and other related properties under simulated climatic conditions.
After the test, ip water proof chamberis judged whether the performance of the product meets the requirements, so as to facilitate the design, improvement, verification and factory inspection of the product.
Main Parameters
|
Name |
IPX4 Test Chamber |
|
|
Model |
R-800 |
R-1200 |
|
Internal Dimensions (mm) |
900*900*900 |
1400*1400*1400 |
|
Overall Dimensions (mm) |
1120*1460*1660 |
1600*1950*2100 |
|
Oscillating Tube Radius |
0 ~ ±180° (Adjustable) |
600mm |
|
Swing Angle of Oscillating Tube |
φ0.4mm |
|
|
Turntable Rotation Speed |
1r/min (Adjustable) |
|
|
Water Pressure Control |
Flowmeter |
|
|
Controller |
Programmable color LCD touch screen controller Ethernet connection, PC Link |
|
|
Build-in Water Tank(mm) |
370*375*950 |
|
|
View Window Size(mm) |
475*475 |
|
|
Water supply system |
Water tank, booster pump, Automatic water supply, Water purification system |
|
|
Power Supply |
380V 50Hz |
|
|
Maximum Noise |
65 dBA |
|
|
Environmental Conditional |
5℃～+35 ℃ ≤85% RH |
|
|
Standard |
IEC 60529, ISO20653 |
|
Standards Compliant
Rain test chamber meet IEC 60529: 2013 Degrees of protection provided by enclosures (IP Code), test for second characterics numerial 3 and 4.
Details
|
|

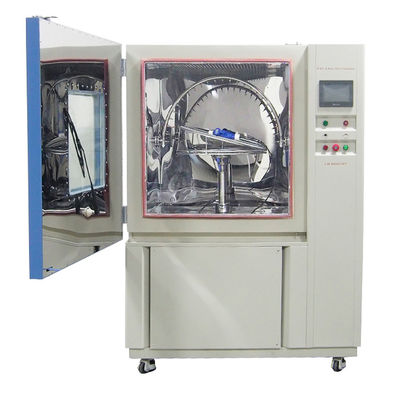

| Oscillating Tube | Turntable |
■ Oscillating Angle
IPX3: spray ±60° from vertical line to each side,
IPX4: spray ±180° from vertical line to each side,
■ Oscillating Speed
IPX3: 2*120° for 4s
IPX4: 2*360° for 12s
