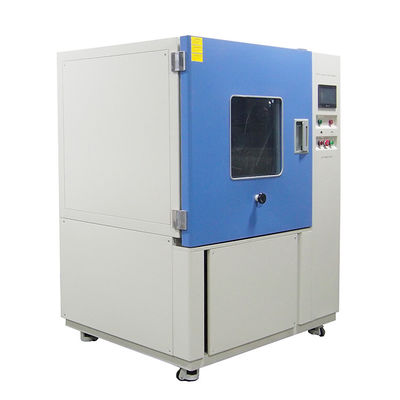

Laboratory IP Code IPX4 Waterproof Testing Machine For Electric Cabinets

Laboratory IP Code IPX4 Waterproof Testing Machine For Electric Cabinets

Product Details:

Place of Origin: China
Brand Name: LIB
Certification: CE,ROHS,
Model Number: R-1200

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Packaging Details: Wooden cases standard export package
Delivery Time: 3-10 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,Paypal
Supply Ability: 140 Sets/ Quarter
Get Best Price Contact Now

Detail Information

Application: Lamps, Electric Cabinets; Type: IPX3 Test IPX4Test
Standard: IEC 60529, ISO20653 Water System: Water Circulation System
Interior Material: SUS304 Stainless Steel Controller: Programmable Controller
High Light:

IPX4 Waterproof Testing Machine

,

IP Code Waterproof Testing Machine

,

IPX4 waterproof tester machine

Product Description

Description


IPX4 waterproof tester with IPX34 is used to simulating the lighting, auto parts,household appliances and other products in condition of moisture or rain,to see the influence of water to the products.Through this can test the resistance to the rain penetration and moisture proof ability of products.



waterproof IPX4 tester is used for the testing of IPX3 and IPX4.



Main Parameters




Name

Laboratory IP Code IPX4 Waterproof Tester

Model

R-800

R-1200

Internal Dimensions (mm)

900*900*900

1400*1400*1400

Overall Dimensions (mm)

1120*1460*1660

1600*1950*2100

Oscillating Tube Radius

0 ~ ±180° (Adjustable)

600mm

Swing Angle of Oscillating Tube

φ0.4mm

Turntable Rotation Speed

1r/min (Adjustable)

Water Pressure Control

Flowmeter

Controller

Programmable color LCD touch screen controller Ethernet connection, PC Link

Build-in Water Tank(mm)

370*375*950

View Window Size(mm)

475*475

Water supply system

Water tank, booster pump, Automatic water supply, Water purification system

Power Supply

380V 50Hz

Maximum Noise

65 dBA

Environmental Conditional

5℃~+35 ℃ ≤85% RH

Standard

IEC 60529, ISO20653



Test sample


IPX3 ipx4 tester with water proof functions, such as electronic appliances, lamps, electrical cabinets, electrical components, car, motorcycle, electrical products (such as automotive instrument, all kinds of switches, micro motors, etc.)

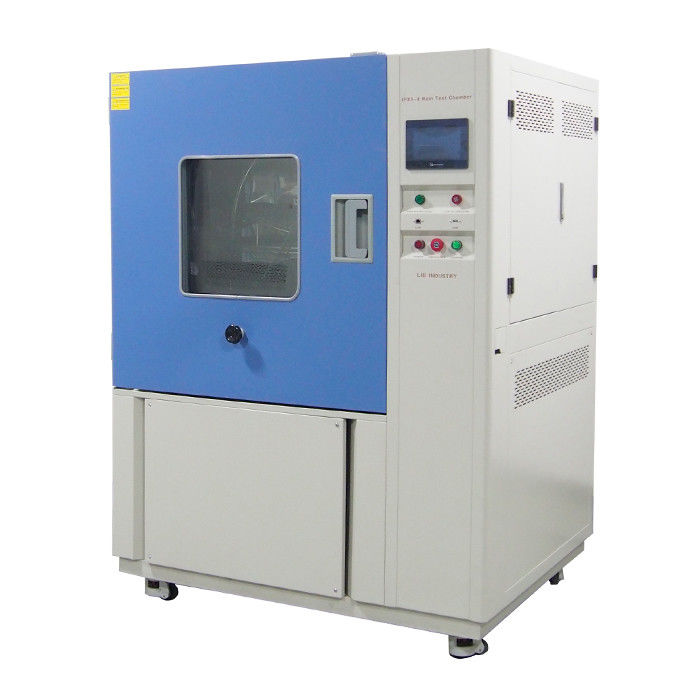

Laboratory IP Code IPX4 Waterproof Testing Machine For Electric Cabinets 0





Details

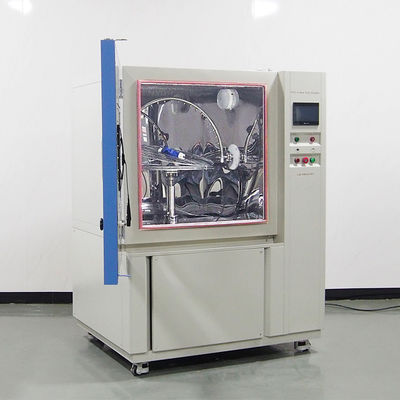

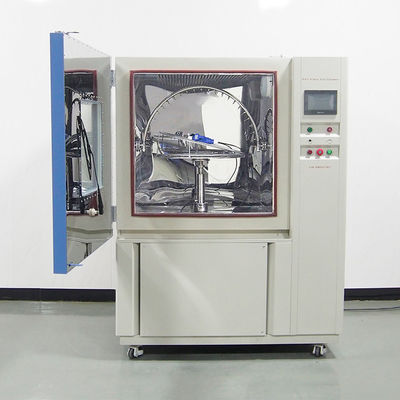

Laboratory IP Code IPX4 Waterproof Testing Machine For Electric Cabinets 1 Laboratory IP Code IPX4 Waterproof Testing Machine For Electric Cabinets 2

Test Area

Automatic Water Inlet



◆Ipx4 rain proof tester size of the oscillating tube:R200, R400, R600, R800, R1000, R1200, R1400, R1600mm.

◆Optional,stainless steel

◆Needle hole:Φ0.4mm

◆Included angle of two holes:IPX3: 120°; IPX4: 180°

◆Pendulum angle:IPX3: 120°(±60°); IPX4: 350°(±175°)

◆Raining speed

IPX3: 4 s/time(2×120°);

IPX4: 12 s/time(2×350°);

◆Water flow:1-10L/min adjustable
