UVA 340 UV Weathering Test Chamber Accelerated Aging Chamber
Product Details:
| Place of Origin: | China |
| Brand Name: | LIB |
| Certification: | CE,RoHS, |
| Model Number: | UV-SI-260 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Packaging Details: | Wooden Box standard export package |
| Delivery Time: | 3-12 days |
| Payment Terms: | T/T, D/P, D/A, L/C, Western Union, MoneyGram,paypal |
| Supply Ability: | 140 sets / quarter |
|
Detail Information |
|||
| UV Lamp: | UVA 340,UVB313 | Temperature Range: | Ambient~90℃ ±2℃ |
|---|---|---|---|
| Black Panel Temperature: | BPT 30~80℃ | UV Wavelength: | 290 ~ 400nm |
| Water Cycle: | Water Spray Cycle System | Humidity Range: | ≥95％R.H ±2%R.H |
| High Light: | UVA 340 UV Weathering Test Chamber,UVA 340 Accelerated Aging Chamber,UVB313 Accelerated Aging Chamber |
||
Product Description
UVA 340 UV Accelerated Aging Chamber
Description
UV accelerated aging chamber for Plastic Products Big Size can provide reliable aging test data to make the exact prediction of products’ weathering fastness(ageing resistance),which is conducive to sift and optimize the formula.
UV aging chamber is used in many industries, such as: paint, inks, resin, plastics, printing and packaging, adhesives, auto and motorcycle industry, cosmetics, metal, electronic, electroplating, medicine,etc.
Specification
| Name | UV Accelerated Aging Chamber | |
|
Model |
UV-260 |
UV-SI-260 |
|
Internal dimensions (mm) |
450*1170*500 |
450*1170*500 |
|
Overall dimensions (mm) |
680*1300*1500 |
680*1300*1500 |
|
Capacity of test specimens |
48 pieces Individual specimen size is 75mm * 150mm |
48 pieces Individual specimen size is 75mm *150mm |
|
Controller |
Programmable color display touch screen controller |
Programmable color display touch screen controller |
|
Temperature range |
Ambient~90℃ ±2℃ |
Ambient~90℃ ±2℃ |
|
Humidity range |
≥95％R.H ±2%R.H |
≥95％R.H ±2%R.H |
|
Black Panel Temperature |
BPT 30~80℃ |
BPT 30~80℃ |
|
Irradiation Source |
Fluorescent UV lamps (8) - 40 W |
Fluorescent UV lamps (8) - 40 W |
|
UV wavelength |
290 ~ 400nm |
290 ~ 400nm |
|
Irradiance Control |
N/A |
0.3 ~ 20 W/㎡(340 nm / 313 nm) |
|
Water Spray |
Spraying water |
Spraying water |
|
Distance of Specimen and lamp |
50mm |
50mm |
|
Nominal power |
5000W |
5500W |
|
Power Supply |
380V 50HZ |
380V 50HZ |
Design Details
 |
|

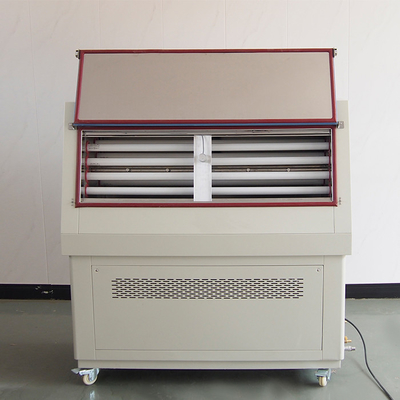

| Sample Shelf | 8 UV Lamp |
|
|
| Programmable controller | Automatic water inlet |
Characteristics
1.UV accelerated aging chamber for Plastic Products Big Size is designed according to uses’ operation , it’s easy to operate, safe and reliable.
2.The thickness of specimen installation is adjustable and the specimen installation is fast and convenient.
3.The door rotating up does not interfere with the operation and the tester takes a very small space only.
4.It’s unique condensation system can be contented by tap water.
5.The heater is under the container rather than in the water, which is long life, easy to maintain.
6.UVA340 UV chamber has truckles, convenient to move.
