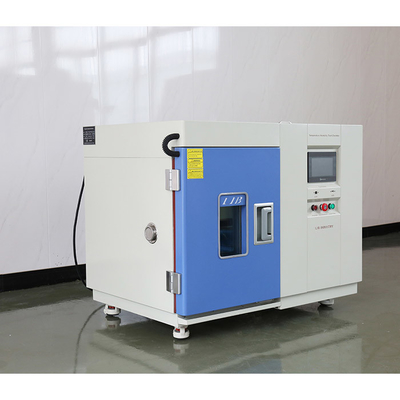

Temperature Climatic Benchtop Environmental Chamber LCD Touch Screen

Temperature Climatic Benchtop Environmental Chamber LCD Touch Screen

Product Details:

Place of Origin: China
Brand Name: LIB
Certification: RoHS,CE
Model Number: TH-50

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Packaging Details: Wooden cases standard export package
Delivery Time: 3-14 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,paypal
Supply Ability: 180 sets / quarter
Get Best Price Contact Now

Detail Information

Name: Small Environmental Chamber Low Type: -20℃/-40℃/70℃
Temperature Range: -20℃ ~+150 ℃ Warranty: 36 Monthes
Humidity Range: 20%~98% Controller: Programmable LCD Touch Screen
High Light:

Climatic Benchtop Environmental Chamber

,

LCD Benchtop Environmental Chamber

,

Touch Screen benchtop humidity chamber

Product Description

Description


Small environmental chamber with adjustable temperature is available as standard products in a variety of sizes to suit your needs. LIB INDUSTRY environmental test chamber are often used for steady-state stability testing, basic temperature cycling and accelerated stress testing. In keeping with the needs of today's lab,



Specifications


●Temperature range:-85℃.-40℃.-20℃~150℃
(low temperature -40 ℃,-85℃ suitale for high low temperature chamber)
​●Humidity range:30%~95%RH
​●Inner tank capacity:50L, 80L





Name Benchtop Temperature Climatic Small Environmental Chamber
Model TH-50
Internal dimension (mm) 320*350*450
Overall dimension (mm) 800*1050*950
Temperature range -20℃ ~+150 ℃
Low type Ⅰ: -40℃ Ⅱ:-70℃
Humidity range 20% ~ 98% RH
Temperature fluctuations ± 0.5 ℃
Temperature deviation ± 2.0 ℃
Humidity deviation ± 2.5% RH
Heating rate 3 ℃ / min
Cooling rate 1 ℃ / min
Temperature Sensor PTR Platinum Resistance PT100Ω/MV A-class
Temperature Resolution ± 0.001 ℃
Humidity sensor Dry and wet bulb sensor
Power Supply AC220V 50HZ
Environmental conditional 5℃~+40 ℃ ≤85% RH



Equipment Characteristics

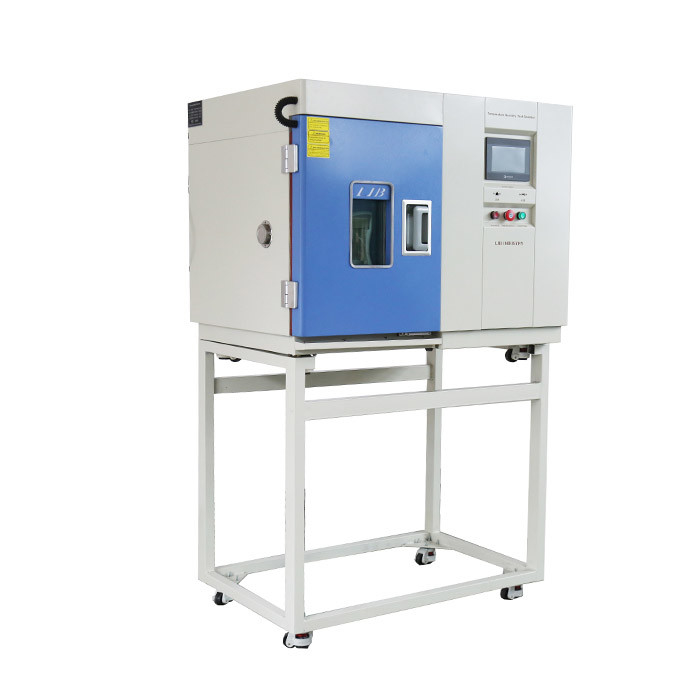

Temperature Climatic Benchtop Environmental Chamber LCD Touch Screen 0

LIB designed these temperature and humidity test chamber to have a compact exterior that maximizes the interior workspace.



Features


1. Vertical or horizontal structure, compact design, small size, fast heating and cooling.
2. Small environmental chamber use of English touch controller easy to operate a communication connection function ,equip APP,pclink,USB, Multiple languages
3. Door can be based on the work of testing needs to change the opening direction, the right place at the table directly online testing.
4. Suitable for R & D units, office buildings, production line production line testing of high and low temperature testing requirements.

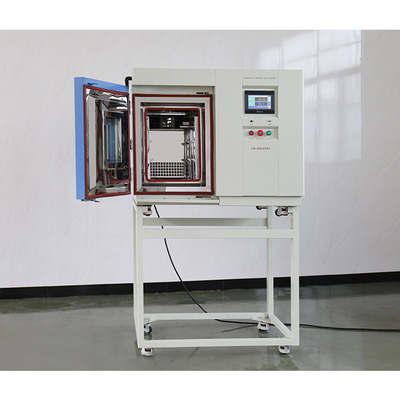

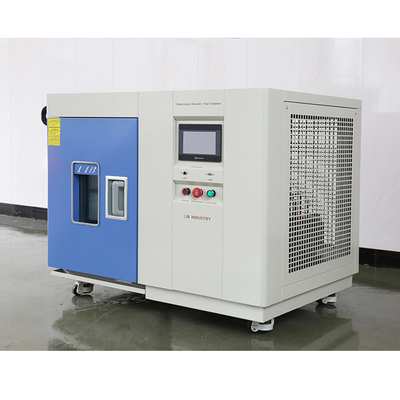

Temperature Climatic Benchtop Environmental Chamber LCD Touch Screen 1 Temperature Climatic Benchtop Environmental Chamber LCD Touch Screen 2
