Artificial Environmental Constant Temperature Chamber R-232

Artificial Environmental Constant Temperature Chamber R-232

Product Details:

Place of Origin: China
Brand Name: LIB
Certification: CE,RoHS
Model Number: TH-225

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Packaging Details: Wooden Box standard export package
Delivery Time: 3-14 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, paypal,MoneyGram,
Supply Ability: 180 sets / quarter
Get Best Price Contact Now

Detail Information

Name: Constant Temperature Chamber Low Type: -20℃/-40℃/-60℃/-70℃/-86℃
Humidity Range: 10% - 98% RH Temperature Range: -20℃ ~+150 ℃
Exterior Material: A3 Steel Plate Controller: PLC,PC Link, R-232 Interface,USB,APP
High Light:

Environmental Constant Temperature Chamber

,

Artificial Constant Temperature Chamber

,

R-232 Constant Temperature Chamber

Product Description

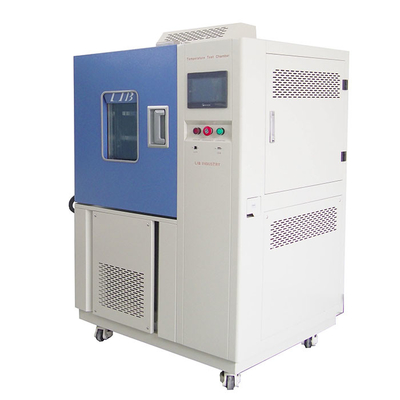

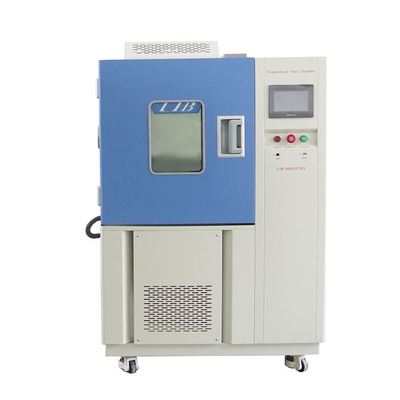

Artificial Environmental Constant Temperature Chamber



Description


Artificial Environmental Constant Temperature Chamber offers the full range of comfort, reliability and safety. Thanks to active humidity control from 20 % to 95 % rh and unsurpassed homogeneity of temperature and humidity over the entire interior, it is ideally suited for environmental testing, environmental simulation, accelerated service life tests and 85/85 tests according to IEC 60068-2-67 and IEC 60068-2-78.

Main Technical Parameter




Name

 Artificial Environmental Constant Temperature Chamber

Model

TH-225

Internal Dimension (mm)

500*600*750

Overall Dimension (mm)

960*1150*1860

Temperature Range (℃)

A: -20℃ ~+150 ℃ B:-40℃ ~+150 ℃ C:-70℃ ~+150 ℃

Humidity Range (R.H)

20% ~ 98% RH

Temperature fluctuations

± 0.5 ℃

Temperature deviation

± 2.0 ℃

Humidity Deviation

± 2.5% RH

Heating Rate

3 ℃ / min

Cooling Rate

1 ℃ / min

Interior Volume

500 liters

Controller

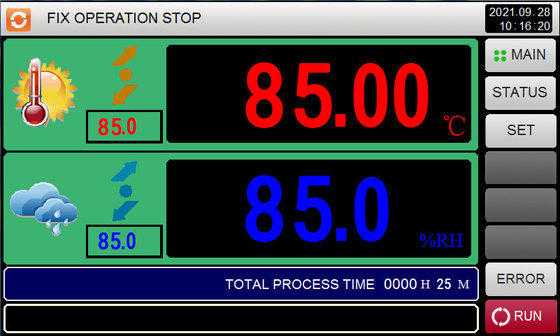

Programmable color LCD touch screen controller, Multi-language interface, Ethernet , USB

Cooling System

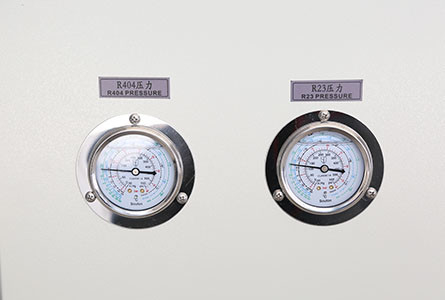

Mechanical compression refrigeration system

Interior Material

SUS304 stainless steel

Maximum Noise

65 dBA

Power Supply

380V


Deatil

Artificial Environmental Constant Temperature Chamber R-232 0 Artificial Environmental Constant Temperature Chamber R-232 1
water purification system PT-100 Sensor




Features


1. Artificial humidity environmental chamber graceful appearance, Blue and gray galvanized coating for aesthetic antistatic.

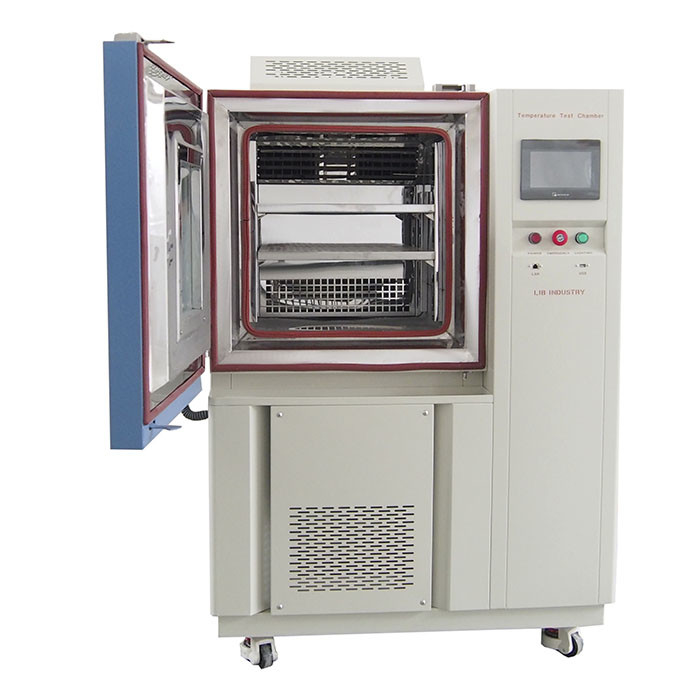

2.Rectangular double-paned viewing window for the observation of sample under test,with interior lights.

3. Double-layer-insulated airtight doors, able to insulate the internal temperature effectively.

4. Water supply system that is externally connectable, convenient for refilling water into the humidifying pot and automatically recyclable.



Ambient conditions


Artificial humidity test chamber ambient temperature 10 °C to 30 °C

Set Up The distance between the wall and the rear of the appliance must be at least 15 cm. The clearance from the ceiling must not be less than 20 cm and the side clearance from walls or nearby appliances must not be less than 5 cm.
