800LTR -40℃ Humidity High Low Temperature Test Chamber Lab Use

800LTR -40℃ Humidity High Low Temperature Test Chamber Lab Use

Product Details:

Place of Origin: China
Brand Name: LIB
Certification: CE,ROHS
Model Number: TH-800

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Packaging Details: Wooden Cases Standard Export Package
Delivery Time: 3-14 Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,PayPal
Supply Ability: 120 Sets/Quarterly
Get Best Price Contact Now

Detail Information

Name: High Low Temperature Chamber Temperature Range: -20°C~+150°C
Humidity Range: 20%~98% Heating Rate: 3 ℃ / Min
Low Type: -20°C / -40℃ / -70℃ Power Supply: 220V 50Hz ( 380V 50Hz)
High Light:

800LTR High Low Temperature Test Chamber

,

-40C High Low Temperature Test Chamber

,

800LTR high and low temperature test chamber

Product Description

Description

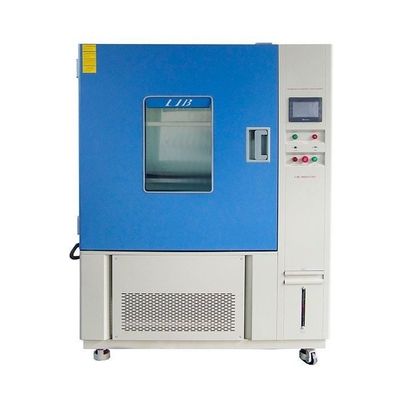

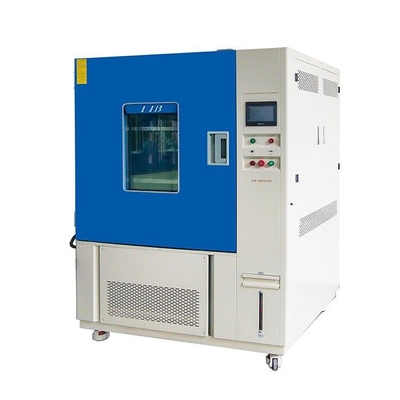

TH-800 -40℃ Humidity High Low Temperature Chamber is suitable for high and low temperature environment, storage, transportation, and use of adaptive trials in electrical, electronics, instrumentation other products, parts and materials;



Environmental test chamber especially suitable for high temperature, low temperature resistance, humidity cycling test in fiber industry, LCD, crystals, inductors, PCB, battery, computers, mobile phones and other products.



Specific Parameters




Product Name

TH-800 -40℃ Humidity High Low Temperature Chamber

Model TH-100 TH-225 TH-500 TH-800 1000L
Internal Dimension (mm) 400*500*500 500*600*750 700*800*900 800*1000*1000 1000*1000*1000
Interior Volume 100L 225L 500L 800L 1000L
Temperature Range

A : -20℃ ~ +150 ℃

B : -40℃ ~ +150 ℃

C: -70℃ ~ +150 ℃

Temperature Fluctuation ± 0.5 ℃
Temperature Deviation ± 2.0 ℃
Humidity Range

20% ~ 98% RH

Humidity Deviation ± 2.5% RH
Cooling Rate 1 ℃ / min
Heating Rate 3 ℃ / min
Exterior Material Steel Plate with protective coating
Interior Material SUS304 stainless steel
Observation Window Interior lighting, double-layer thermo stability silicone rubber sealing
Environmental Conditional 5℃~+35 ℃ ≤85% RH





Details

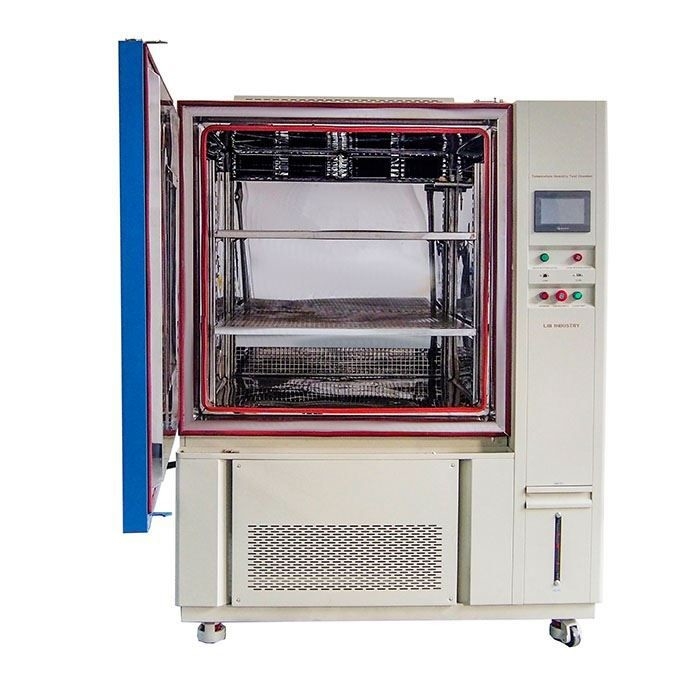

800LTR -40℃ Humidity High Low Temperature Test Chamber Lab Use 0 High Low Temperature Chamber from Weiberare essentially double walled equipments that feature an inner bladder made up of high grade SUS 304 stainless steel plates and an outer bladder made up of plastic coated A3 steel plates.



Features


1. High Low Temperature Chamber adopt two stage refrigeration compressor, environmental protection refrigerant.



2. Easy operation, available for both fixed value test and programmable test.



3. Available for customized design and provide various options to meet different test requirements.



4. Equip USB,PC Link,available to computer remote control.



5. Fog-free observation window and interior light to view product under test.

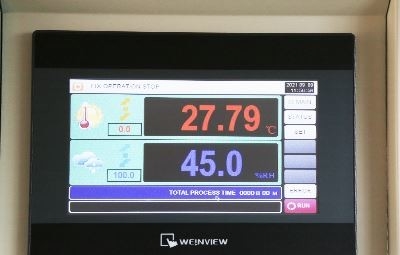

6. Humidity chamber adopted programmable controller
