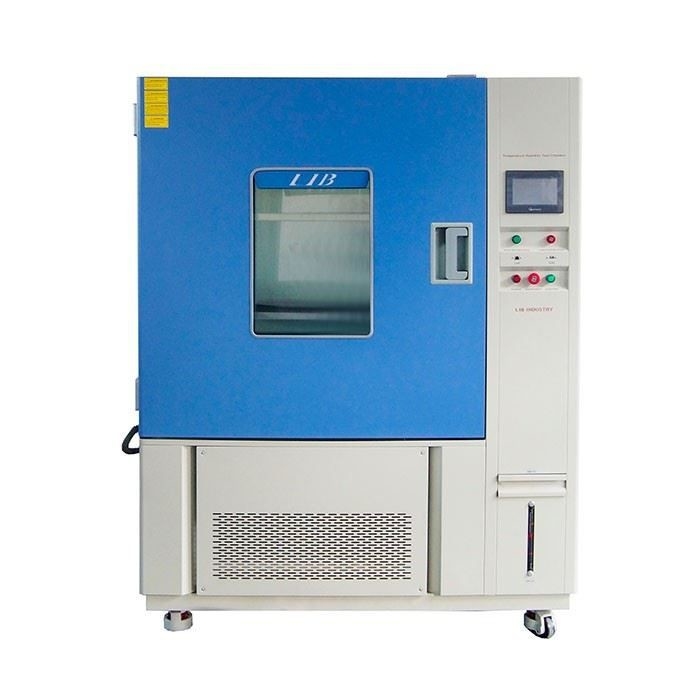

225L Environmental Aging Humidity Temperature Test Chamber Machine

225L Environmental Aging Humidity Temperature Test Chamber Machine

Product Details:

Place of Origin: China
Brand Name: LIB INDUSTRY
Certification: CE,ROHS
Model Number: TH-225

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Packaging Details: Wooden Cases Standard Export Package
Delivery Time: 3-14 Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,PayPal
Supply Ability: 120 Sets/Quarterly
Get Best Price Contact Now

Detail Information

Name: Humidity Test Chamber Low Type: -20°C / -40℃ / -70℃
Humidity Range: 20%~98% Temperature Range: -20°C~+150°C
Heating Rate: 3 ℃ / Min Power Supply: 220V 50Hz ( 380V 50Hz)
High Light:

225L Humidity Temperature Test Chamber

,

Aging Humidity Temperature Test Chamber

,

225L temperature and humidity chamber

Product Description

Description


225L Environmental Aging Humidity Test Chamber in Stock introduces products to increasing levels of relative humidity to determine a product’s ability to operate in certain environments. Humidity testing chamber will signal any design flaws that might lead to common humidity issues such as electrical failures, swelling of materials, change in surface condition, deterioration of optical equipment, corrosion, oxidation and accelerated wear on moving pieces. Humidity testing can be completed by using the direct condensation and indirect effect.



▶Temperature range up to +150°C

▶9+model sizes (50 to 1000 litres volume)

▶Humidity range:20% ~ 98% RH



Specific Parameters




Product Name

225L Environmental Aging Humidity Test Chamber

Model TH-100 TH-225
Internal Dimension (mm) 400*500*500 500*600*750
Interior Volume 100L 225L
Temperature Range

A : -20℃ ~ +150 ℃

B : -40℃ ~ +150 ℃

C: -70℃ ~ +150 ℃

Temperature Fluctuation ± 0.5 ℃
Temperature Deviation ± 2.0 ℃
Humidity Range

20% ~ 98% RH

Humidity Deviation ± 2.5% RH
Cooling Rate 1 ℃ / min
Heating Rate 3 ℃ / min
Exterior Material Steel Plate with protective coating
Interior Material SUS304 stainless steel
Observation Window Interior lighting, double-layer thermo stability silicone rubber sealing
Environmental Conditional 5℃~+35 ℃ ≤85% RH





Details

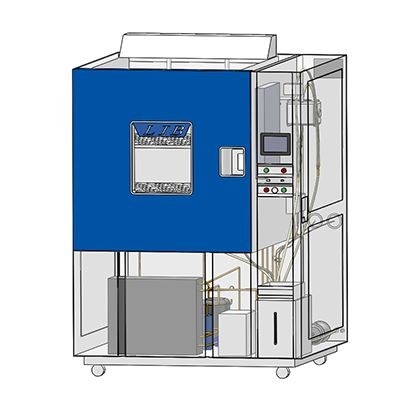

225L Environmental Aging Humidity Temperature Test Chamber Machine 0 225L Environmental Aging Humidity Temperature Test Chamber Machine 1



Test Hole

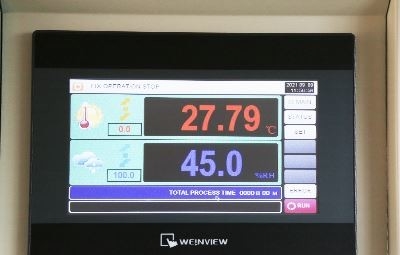

Programmable Controller



Service


Humidity Test Chamber

3 Years Warranty, Lifelong Follow-up Services. We have a professional after-sales team, if you have any questions during operation, we will supply solutions to you with 24 hours.



Performance


1.Compact design and quite operation.

3.Three different size models are available to suit user’s need.Corrosion resistance stainless steel chamber.

3.window with wire heater and lighting provides a clear view of samples in the environmental chamber, beneficial for during testing.Cable port for introduction of external probes or wires.

4. 50mm diameter cable port comes standard on the left side of the unit.

5. Additional 50mm or 80mm diameter cable ports, custom ordered. (optional)

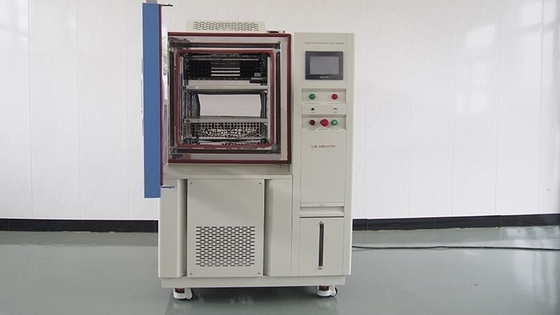

                  225L Environmental Aging Humidity Temperature Test Chamber Machine 2
