IP5X Dustproof Sand Dust Testing Chamber PC Link 380V 50HZ
Product Details:
| Place of Origin: | China |
| Brand Name: | LIB |
| Certification: | IEC60529,CAS,Rohs,CE |
| Model Number: | DI-800 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Packaging Details: | Wooden cases standard export package |
| Delivery Time: | 3-14days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram,paypal |
| Supply Ability: | 360 sets / quarter |
|
Detail Information |
|||
| Name: | Sand Dust Testing Chamber | Overall Dimensions (mm): | 800*1000*1000 |
|---|---|---|---|
| Temperature Range: | Ambient To +50℃ | Normal Wire Diameter: | 50um |
| Normal Width Of A Gap Between Wire: | 75um | Standard: | IEC60529,ISO20653 |
| High Light: | Sand Dust Test Chamber IP5X,PC Link Dust Sand Test Chamber,Dustproof Sand Test Chamber |
||
Product Description

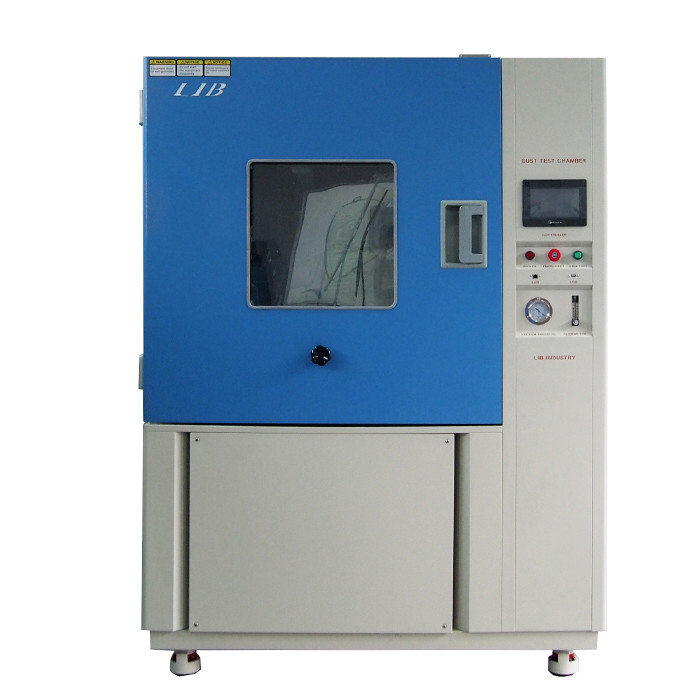

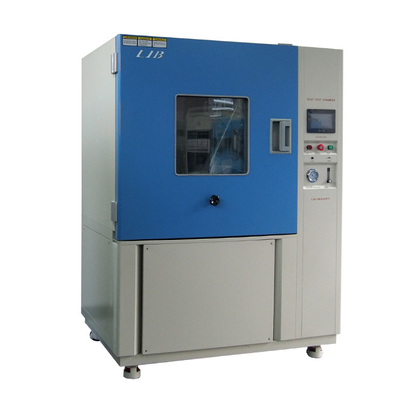

IP5X Dustproof Sand Dust Testing Chamber
Description
The IP Sand Dust Testing Chamber is a test equipment that uses manual simulation of the sand and dust environment to test the dustproof ability of the specimen and assess the dustproof ability of the specimen in this environment.
In addition to providing a non-laminar flow of vertical circulation of dust, and its circulating dust gas flow, on, stop, automatic timing or continuous control, can be: dust blowing, dust reduction, temperature and other performance tests, is the ideal IP5X dustproof test device.
Main Technical Parameter
| Name | IP5X Dustproof Sand Dust Testing Chamber | |
| Model | DI-800 | |
| Internal dimensions (mm)8 | 800*1000*1000 | |
| Overall dimensions (mm) |
1040*1450*1960 |
|
| Temperature range | Ambient to +50℃ | |
| Relative Humidity | <30%RH | |
| Normal wire diameter | 50um | |
| Normal width of a gap between wire | 75um | |
| The Talcum powder amount | 2kg ~ 4kg/m3 | |
| Fight time | 0 ~ 99H59M | |
| Fan cycle time | 0 ~ 99H59M | |
| Specimen power outlet | Dust-proof socket AC220V 16A | |
| Controller | programmable color display touch screen controller | |
| PC Link, R-232 interface | ||
| Vacuum system | Equipped with a pressure gauge, air filter, pressure regulator, connecting tube | |
| Circulating fan | Enclosed alloy low-noise motor, multi-vane centrifugal fan | |
| Heating system | Independent Nichrome electronic heating system | |
| Exterior material | Steel Plate with protective coating | |
| Interior material | SUS304 stainless steel | |
| Safety System | Electric leakage, short circuit, Over-temperature, motor overheating Over-current protection/ Power failure memory function for controller | |
| Power supply | 380V 50HZ | |
Details
 |
|
|

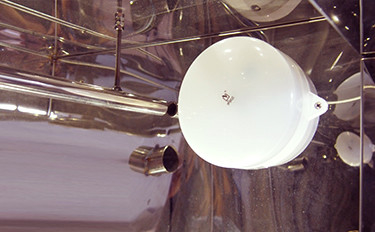

Test Area |
pressure gage |
|
|
|

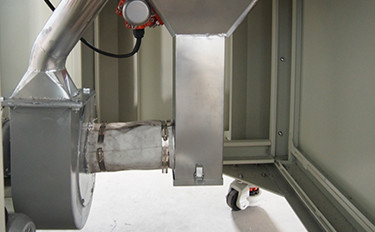

Dust cycle |
LAN and USB |
|
|
Features
IP5X,IP6X dustproof test device structure and characteristics
1. Dustproof test device is all imported stainless steel inner tank, stainless steel outer box shell or A3 plate spray plastic outer box shell, and the appearance is beautiful and generous.
2. The clever air duct structure of the IP sand and dust test box has a small deviation in temperature and sand and dust concentration.

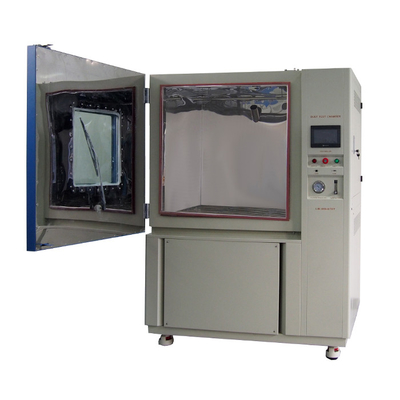

3. The door of the IP5X-IP6XIP5X dustproof test device is equipped with an observation window, which can easily observe the test status of the test sample.
4. The IP sand and dust test chamber system is simple to operate, easy to install and maintain.
