UVA 340 UVB 313 Ultraviolet Uv Aging Chamber For Sterilization
Product Details:
| Place of Origin: | China |
| Brand Name: | LIB |
| Certification: | CE,ROHS,ISO17025 |
| Model Number: | UV-SI-260 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Packaging Details: | Wooden Cases Standard Export Package |
| Delivery Time: | 5-14 Days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram,Paypal |
| Supply Ability: | 410Sets |
|
Detail Information |
|||
| Product Name: | Uv Aging Chamber | UV Lamp: | UVA 340，UVB 313 |
|---|---|---|---|
| BPT: | 35℃～80℃ | Irradiance Control: | 0.3~20 W/㎡ |
| Irradiation Source: | Fluorescent UV Lamps (8) - 40 W | Usage: | Sterilization |
| High Light: | UVA 340 Uv Aging Chamber,UVB 313 Uv Aging Chamber,UVA 340 ultraviolet aging chamber |
||
Product Description

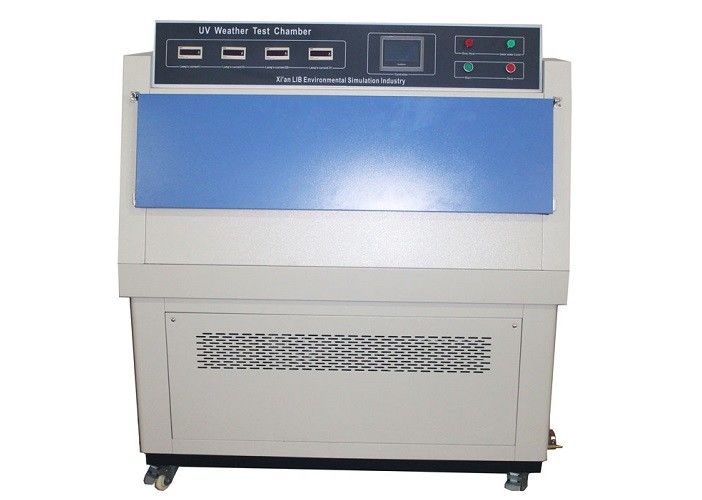

UVA 340 UVB 313 Ultraviolet Uv Aging Chamber For Sterilization
Description
The Uv Aging Chamber simulates the ability of the test material to withstand ultraviolet ray under a certain period of time under simulated ultraviolet light radiation, and accelerates the aging test chamber to simulate the environment of the transport container that is exposed to sunlight, in order to test the degree of resistance of the product in it. For the preparation of product materials, the reference of chemical raw materials.
Technical Specification
|
Name |
UVA 340 UVB 313 Ultraviolet Uv Aging Chamber For Sterilization |
|
|
Model |
UV-260 |
UV-SI-260 |
|
Internal Dimension (mm) |
452*1170*500 |
450*1170*500 |
|
Overall Dimension (mm) |
680*1300*1500 |
680*1300*1500 |
|
Specimen Holder Size(mm) |
75*150 |
|
|
Controller |
Programmable color LCD touch screen controller |
|
|
Temperature Range |
Ambient ～ 90 ℃ ±2℃ |
|
|
Black Panel Temperature (BPT) |
35 ～ 80 ℃ |
|
|
Bandwidth |
290 ~ 400nm |
|
|
Irradiance Control |
N/A |
0.3~20 W/㎡(340nm/313nm) |
|
Standard |
ISO4892-1,ISO4892-3, ASTM G154, ASTM D4329, ASTM D458, ASTM C125, ASTM C1442, ASTM C1519, ASTM C793, ASTM D1148, ASTM D3424, ASTM D3451, ASTM D410, ASTM D481, ASTM D657, ASTM D6662, ASTM D750, ASTM D904, GM 9125P, ISO 29664 |
|
|
Water Spray Cycle |
1~9999H59M (Adjustable) |
|
|
Distance of Specimen and lamp |
50mm |
|
|
Power Supply |
380V 50Hz |
|
|
Maximum Noise |
65 dBA |
|
Design Details
 |
|
| Programmable Controller | UV Lamp and Black Panel(BPT) |
Characteristic
LIB UV resistant test chamber
LIB use QUV lamp, easy to replace, easy to buy
Provides high amounts of UV exposure to the test samples
Correlates to traditional test methods
Standards
●ASTM G154
ASTM G154 UV test chamber,Standard Practice for Operating Fluorescent Light Apparatus for UV Exposure of Nonmetallic Materials
●DIN EN 12224
Geotextiles and geotextile-related products - Determination of the resistance to weathering
●DIN EN 1297
Flexible sheets for waterproofing - Bitumen, plastic, and rubber sheets for roofing - Method of artificial ageing by long term exposure to the combination of UV-radiation, elevated temperature and water
●DIN EN 13523-10
Coil coated metals - Test methods - Part 10: Resistance to fluorescent UV light and water condensation
