Durable Xenon Weathering Test Chamber 35 - 150 W/㎡ Irradiance Range ASTM G155 Standard

China Durable Xenon Weathering Test Chamber 35 - 150 W/㎡ Irradiance Range ASTM G155 Standard supplier
Durable Xenon Weathering Test Chamber 35 - 150 W/㎡ Irradiance Range ASTM G155 Standard supplier Durable Xenon Weathering Test Chamber 35 - 150 W/㎡ Irradiance Range ASTM G155 Standard supplier Durable Xenon Weathering Test Chamber 35 - 150 W/㎡ Irradiance Range ASTM G155 Standard supplier Durable Xenon Weathering Test Chamber 35 - 150 W/㎡ Irradiance Range ASTM G155 Standard supplier

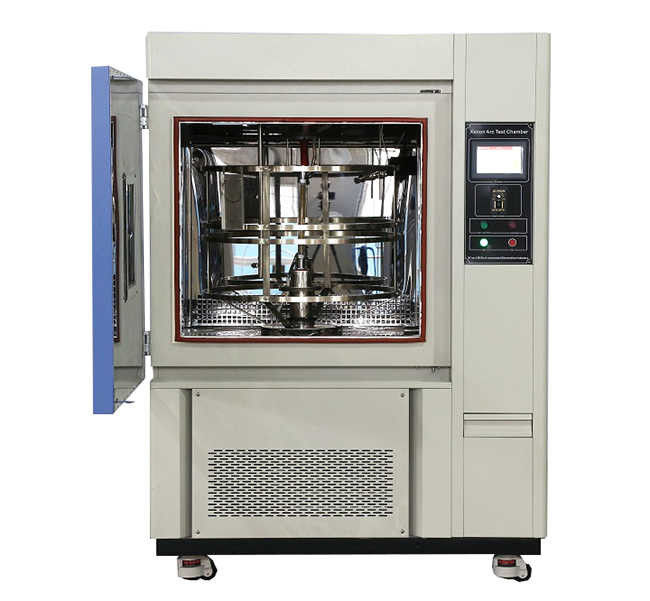

Large Image :  Durable Xenon Weathering Test Chamber 35 - 150 W/㎡ Irradiance Range ASTM G155 Standard

Product Details:

Place of Origin: China
Brand Name: LIB
Certification: CE,ROHS
Model Number: XL-S-750

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Packaging Details: Wooden Cases Standard Export Package
Delivery Time: 5-14 Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,Paypal
Supply Ability: 410Sets
Contact Now
Detailed Product Description
Irradiance Range: 35~150 W/㎡ Bandwidth Measurement: 300nm~400nm (340nm Or 420nm)
Chamber Temperature Range: Ambient ~ 100 ℃ ±2℃ Black Panel Temperature: BPT 35 ~ 85 ℃ ±2℃
Specimen Capacity: 42pcs Chamber Type: Rotating Holder
High Light:

xenon arc weatherometer

,

accelerated weathering chamber



Sunshine Xenon Arc Weather Ometer for Sale Xenon Chamber

♦ Production Induction for Sunshine Xenon Arc Weather Ometer for Sale Xenon Chamber

Accelerated weathering xenon arc test chamber reproduce weathering damage by sunlight, temperature, humidity and water spray. Weatherometer xenon weathering test chambers are utilized in textiles, dyes, leather, plastics, paints, coatings, automotive interior parts, electrotechnics, color building materials. To perform weathering test, color fastness tests, aging test, hardening test, softening test, crack.

Precise measure and control of parameters including irradiance, relative humidity, chamber temperature and black panel temperature and water spray.

XL Series xenon weathering test chamber can place 42 pieces of specimens, are upgrade to programmable controller and Ethernet access. Their reliable performance and low purchase price make these products very competitive.

♦ Advantages for Sunshine Xenon Arc Weather Ometer for Sale Xenon Chamber

1. Water-cooled Xenon arc lamp
2. Total 42 pieces of specimens capacity
3. Measurement and control of Irradiance: 340nm, 420nm or 300-400 nm, 280-800nm
4. Measurement and control of Black Panel Temperature( BPT)
5. Measurement and control of Chamber Temperature
6. Measurement and control of relative humidity
7. Programmable color display touch screen controller Ethernet & USB
8. Sample holders and casters are standard
9. Safety protection system
10. CE markTheir reliable performance and low purchase price make these products very competitive.

♦ Main Parameter for Sunshine Xenon Arc Weather Ometer for Sale Xenon Chamber

Name Sunshine Xenon Arc Weather Ometer for Sale Xenon Chamber
Model

XL-S-750

Internal Dimension (mm)

950*950*850mm

Overall Dimension (mm)

1300*1420*1800mm

Specimen Holder Size(mm)

95*200

Specimen Capacity

42pcs

Chamber Type

Rotating Holder

Irradiation Source

1 piece of 4500w water-cooled xenon arc lamp with inner quartz and outer borosilicate filter

Irradiance Range

35~150 W/㎡

Bandwidth Measurement

300nm~400nm (340nm or 420nm)

Black Panel Temperature

BPT 35 ~ 85 ℃ ±2℃

Water Spray Cycle

1~9999H59M (Adjustable)

Controller

Programmable color LCD touch screen controller

Water supply system

Automatic water supply  Water purification system

Radiometer

UV Radiometer, Tolerance: ±5%

Thermal Insulation

Polyurethane foam and insulation cotton

Observation Window

Interior lighting, double-layer thermo stability silicone rubber sealing

Power Supply

AC380V 50Hz

Maximum Noise

65 dBA

Standard ASTM G155

♦ Main Details for Sunshine Xenon Arc Weather Ometer for Sale Xenon Chamber

Durable Xenon Weathering Test Chamber 35 - 150 W/㎡ Irradiance Range ASTM G155 Standard 0Durable Xenon Weathering Test Chamber 35 - 150 W/㎡ Irradiance Range ASTM G155 Standard 1

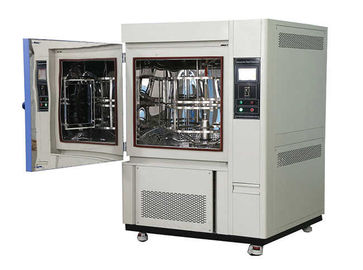

1. Rotating Specimen Holder

Inside there is a rotating specimen holder, which rotates around the xenon lamp,so that the irradiance received by the specimen is relatively uniform during the test. Total can mount 42 pieces of specimen.



2. Controller

PID programmable color touch screen controller, network connection computer.

Can edit 100 programs 20 segment.

LIB also can preset program into the controller based on user testing requirements.

The set system language is English for standard.

Durable Xenon Weathering Test Chamber 35 - 150 W/㎡ Irradiance Range ASTM G155 Standard 2Durable Xenon Weathering Test Chamber 35 - 150 W/㎡ Irradiance Range ASTM G155 Standard 3

3. Viewing Window

Double layer insulating glass 8cm thickness, made of tempered glass.

The conductive film is located on the interior glass to prevent window frosting, built-in LED light for the work room lighting ;can clearly observe samples.

The light control button is located below the controller.

4. Cooling System

After the liquid refrigerant absorbs the heat of the cooled object in the evaporator, it is vaporized into low-temperature and low-pressure steam, sucked by the compressor, compressed into high-pressure high-temperature steam



Durable Xenon Weathering Test Chamber 35 - 150 W/㎡ Irradiance Range ASTM G155 Standard 4
