ISO6270-2 Condensate Climate Test Chamber Humidity Temperature

Description


LIB INDUSTRY Condensate climate test chamber designed and manufactured,comply with ISO 6270-1: 2017, ASTM D4585 and BS 3900-F9 test standards. The machine will be used to evaluate the moisture resistance of the coating system and its similar products in the high humidity environment of continuous condensation.



The condensation test machine simulates rain and dew damage to the coating by producing continuous condensation on the surface of the sample under test.



ISO6270-2 Standard


condensation environmental machine

Paints and Varnishes- Determination of resistance to humidity-

Part 2: Condensation (in cabinet exposure with heated water reservoir)



Technical Specification

Name Condensate Climate Test Chamber
Model ATH-100A
Internal Dimension (mm) 400*500*500 D*W*H
Overall Dimension (mm) 900*1050*1620 D*W*H
Temperature Range (℃) 10℃ ~ +60 ℃
Humidity range 95%RH ~ 100%
Cooling Rate 1°C / min
Heating Rate 3°C/ min
Testing room roof Slope shape designed, to avoid condensate drop on samples
Sample shelf 1pc sample shelf + 1pc round bar
Water trough Build-in water trough in testing room
Controller

Programmable color LCD touch screen controller

Ethernet connection, USB port

Temperature Sensor PTR Platinum Resistance PT100Ω/MV A-class
Humidity sensor Dry and wet bulb sensor
Air circulation Centrifugal wind fan
Water supply system Automatic water supply; Water purification system
Exterior material Steel Plate with protective coating
Standard configuration Dia50mm port on left side, with plug





Details

ISO6270-2 Condensate Climate Test Chamber Humidity Temperature 0 ISO6270-2 Condensate Climate Test Chamber Humidity Temperature 1

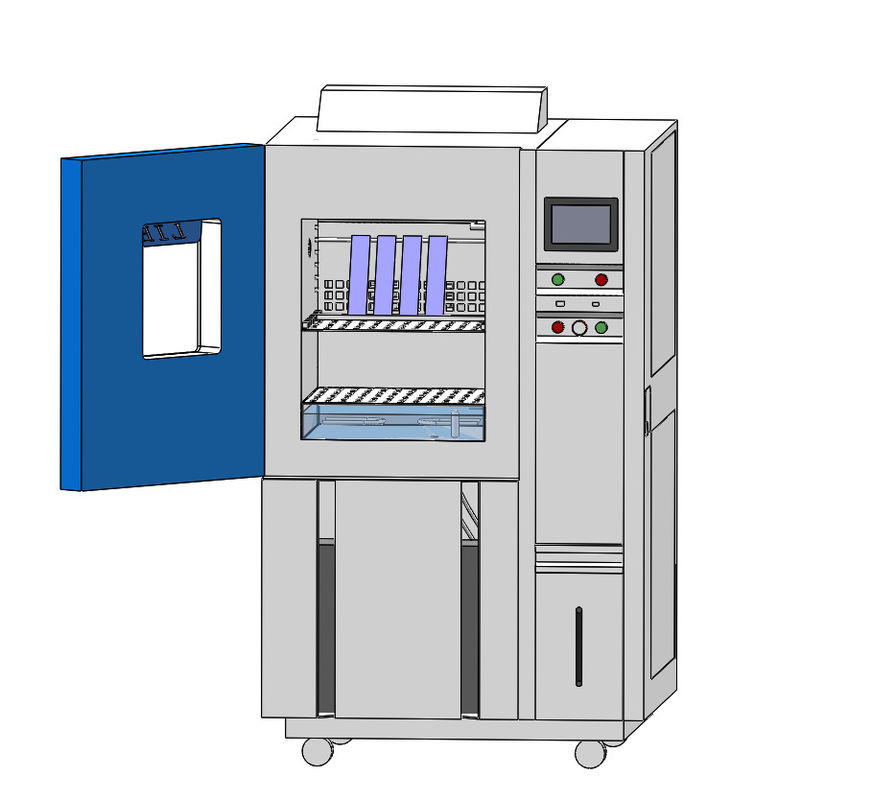

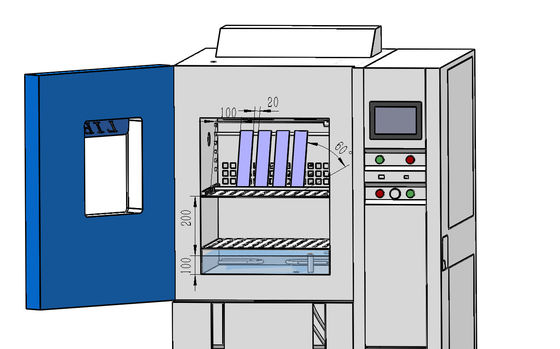

Workroom

●The internal material is 304 stainless steel, mirror surface, corrosion resistance

●Rust-proof to high and low temperature and moisture corrosion;

●●Nice ruggedness and long life.

Water drain hole at side of workroom

●Top of testing room with pressure relief vent

●Slope shape designed, to avoid condensate drop on samples

Viewing Window

●Condensate huimidity Test Chamber

●Double layer insulating glass 8cm thick.

●Window made of tempered glass.

●The conductive film is located on the interior glass to prevent window frosting.

●Built-in LED light for the work room lighting ;can clearly observe samples.

●The light control button is located below the controller.



ISO6270-2 Condensate Climate Test Chamber Humidity Temperature 2 ISO6270-2 Condensate Climate Test Chamber Humidity Temperature 3
