Mechanical R23 LCD 1000L Low Temperature Chamber

Mechanical R23 LCD 1000L Low Temperature Chamber

Product Details:

Place of Origin: China
Brand Name: LIB
Certification: CE,ROHS
Model Number: TH-1000

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Packaging Details: Wooden Cases Standard Export Package
Delivery Time: 5-14 Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,Paypal
Supply Ability: 210 Sets/Quarter
Get Best Price Contact Now

Detail Information

Product Name: High And Low Temperature Chamber Temperature Range: -70 Degree ~ +150 Degree
Humidity Range: 10%~98% Cooling Rate: 1 ℃ / Min
Heating Rate: 3 ℃ / Min Controller: Programmable Color LCD Touch Screen Controller
High Light:

1000L Low Temperature Chamber

,

LCD Low Temperature Chamber

,

R23 Low Temperature Chamber

Product Description

Mechanical R23 LCD 1000L Low Temperature Chamber

1000L High And Low Temperature Chamber

Description



1000L High and low temperature chamber are capable of simulating a wide range of temperature or temperature and humidity conditions.

1000L workspace will accept equipment,These humidity test chambers are designed with a compact exterior that maximizes the interior workspace.



Equipment Types
Temperature Only
Temperature & Humidity
Cascade Refrigeration System



Main Parameter

Name 1000L High And Low Temperature Chamber
Model TH-100 TH-1000
Internal Dimension (mm) 400*500*500 1000*1000*1000
Overall Dimension (mm) 860*1050*1620 1550*1550*2110
Interior Volume 100L 1000L
Heat load 1000W
Temperature Range

A : -20℃ ~ +150 ℃

B : -40℃ ~ +150 ℃

C: -70℃ ~ +150 ℃

Temperature Fluctuation ± 0.5 ℃
Temperature Deviation ± 2.0 ℃
Humidity Range 20% ~ 98% RH
Humidity Deviation ± 2.5% RH
Cooling Rate 1 ℃ / min
Heating Rate 3 ℃ / min
Cooling system Mechanical compression refrigeration system
Refrigerating unit French TECUMSEH compressor
Refrigerant R404A, R23
Heating Element Nichrome heater
Controller Programmable color LCD touch screen controller


Ethernet connection, PC Link





Main Details

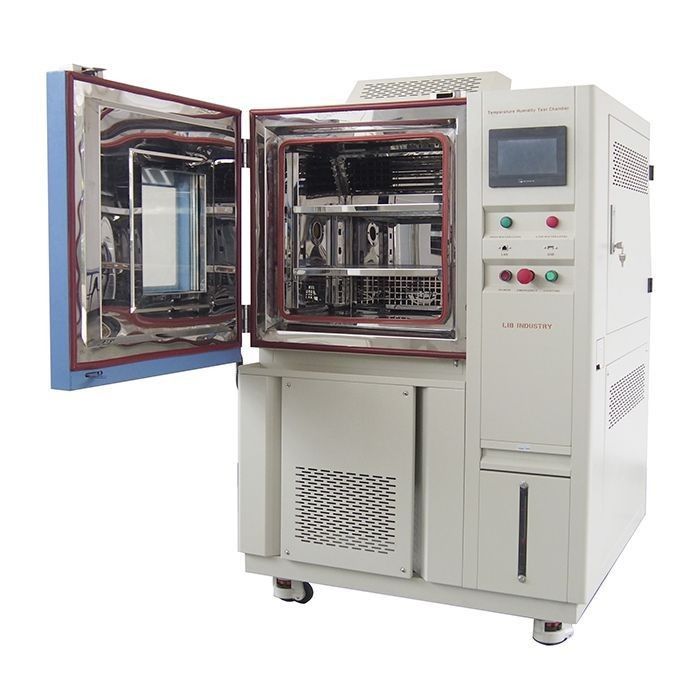

Mechanical R23 LCD 1000L Low Temperature Chamber 0

Test Area and Sample Hoder

Made of SUS 304 stainless-steel with thickness 2.5 mm.
Have ability to made much more thickness to meet customer test sample size.

Test Hole
Test hole (Φ 50mm, Φ125mm), sealed with silicone screw plug.

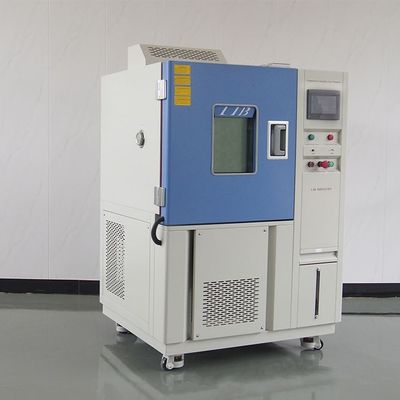

Mechanical R23 LCD 1000L Low Temperature Chamber 1
Control Panel
Programmable color display touch screen controller, PC Link, R-232 interface
Program: 100 groups in 999 sections
Automatic Feed and Drain System
Meet the requirements of automation equipment, simple and convenient,



Features


Vapor-tight interior liners of 100% continuously welded stainless steel
Humidity capable models constructed of 100% non-corroding parts and have a low-water protection system
Open-air low mass nichrome wire heating elements
Cascade refrigeration system with hermetic compressor
PT100 sensor for temperature measurement
Humidity Generator (in humidity models)
In humidity models-dry capacitance type humidity sensor
Silent centrifugal fan



Product Inspection
LIB products are oriented to the global market, with customers in Asia, Europe, North America, South America, Oceania and Africa.

In order to ensure the quality of the products, the efficient performance of the equipment and the customer experience, we will conduct strict multi-dimensional inspection of the products before leaving the factory.

There are mainly factory acceptance inspections and third party inspections.



Hot-Sale Products

Small Temperature Chamber Thermal Cycling Test Equipment
Salt Spray Corrosion Test Chamber Xenon Arc Test Chamber

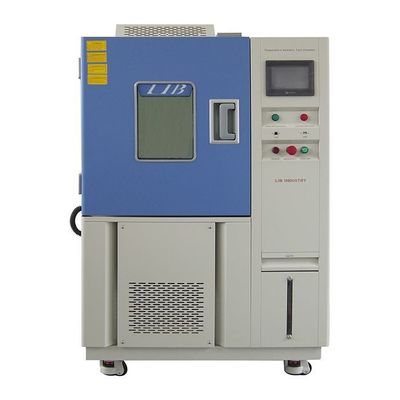

Mechanical R23 LCD 1000L Low Temperature Chamber 2
