Waterproof IPX7 IPX8 Test Equipment Immersion Cylinder / Immersion Tank

Product Description

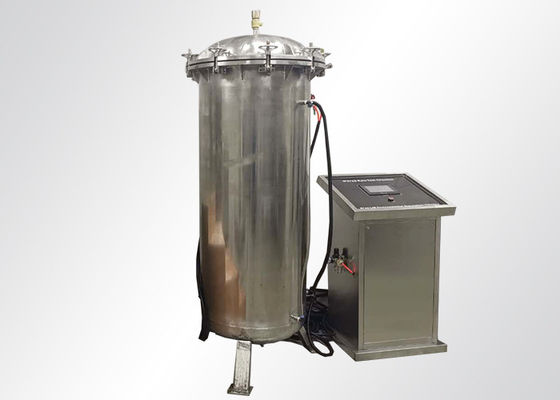

Waterproof IPX7 IPX8 Test Equipment Immersion Cylinder, Immersion Tank

Description of Immersion TankTest Equipment

Waterproof IPX7 IPX8 Test Equipment Immersion Cylinder, Immersion Tank is suitable for electrical products, lamps, electrical cabinets, electrical components, communications products, automobiles, motorcycles and spare parts, outdoor lighting and signal devices and other products to do waterproof performance testing and IP waterproof rating test.

Main Technical Parameter of Immersion TankTest Equipment

Item	Specification
Internal dimension	Diameter 600mm *Height 1500mm.
Chamber material	SUS#304, thickness 2.5mm
Water depth	Simulate 50m depth by air compressor
Water pressure	Ambient to 0.5MPa, pressure gauge accuracy 0.25 degree
Timer	0 ~ 99min, 99sec
Sample lift device	Portable stainless steel basket
Water level display	Water pipe with scale
Open mode	pneumatic lift with safety lock.
Protection device	Pressure protection and anti-explosive device, water drain and pressure release device
Safety protection	Power overload protection, short circuit protection, grounding protection, alarm display
Nominal power	3500W
Power Supply	AC380V 50HZ





IPX7

Method name: Short time immersion test.

Test equipment and conditions: Immersion tank. The dimensions shall be such that the sample shall be placed in the immersion tank at a distance of at least 1m from the bottom of the sample to the surface of the water. The distance from the top of the sample to the water surface should be at least 0.15m.

Testing time: 30 min.



IPX8

Method name: Continuous diving test.

Test equipment, test conditions and test time: The severity shall be higher than IPX 7 as agreed by the buyer and the seller.

Note: Many outdoor electronics also emphasize the ability to float.

Production & Commisioning

*Check Specification,Prepare& Check Raw Material

*Sheet Metal Production

*Coating

*Assembly

*Finished Product

*Commissioning

*Testing

Packaging & Shipping

1.Export Standard Wooden Box

2.Covered with air bubble film before put them into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.

3.Can be used for Sea, Air, Railway, Truck transportation

FAQ
1. Are your company a trading one or a factory?
Factory ,200years focusing on test instruments field,11 years exporting experience.

2. After an order is placed, when to deliver?
Generally about 20 workdays, If we have finished products, we can arrange shipment within 3 workdays.
Please be aware that our production lead times depend on specific items and item quantities.

3. What about the warranty with after - sales services?
36 months warranty.
After the warranty, the professional after-sale service team will provide perfect technical support,and help customer solve problems encountered while using our product, handles guest problems and complaints in a professional and timely.

4. What about the services and product' quality?
Service: OEM service,Design service,Buyer lable service.
Quality: Each instruments must be carried out 100% quality examination and test, the finished products must through a third party calibration institutions before shipping and delivery goods.

5. How to install and training?
If the products is easy to install and training, customers can learn the operation and maintenance manual to installation and use.
If the products is hard to use, customers can come LIB factory to learn how to installation and use. And our engineers have a passport, we can go to overseas.

Service

• Provide test solution

If you are end user, you have some test samples need environmental testing, you are not clear the tests, please contact us to get test solution. Will response

within 10 hours after got your requests.

If you are trading dealer, you got request from your customers, please let us know, our team will response you to send test solution for you.

If you want to participate in bidding, our company will send you full brochure with best price for you win the tender.



• Send specification and quotation

If you are interested in some models, you want to get specifications and quote, don’t hesitate to contact our elite team to get brochure and best price.

Will offer you one-stop service including machine, transportation, and installation, calibration, and spare parts…etc



• To be our agent

We welcome you to be our agent in countries to promote LIB test chambers to get win-win.Agent price, service

will support for you.



• Warranty & After Sales Service

3 Years Warranty, Lifelong Follow-up Services. We have a professional after-sales team, if you have any questions during operation, we will supply solutions to you with 24 hours.
