Dynamic Corrosion 1000PPHM Ozone Test Chamber

Dynamic Corrosion 1000PPHM Ozone Test Chamber

Product Details:

Place of Origin: China
Brand Name: LIB
Certification: CE,ROHS,ISO17025
Model Number: OC-250

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Packaging Details: Wooden cases standard export package
Delivery Time: 3-10 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,Paypal
Supply Ability: 180 Sets/ Quarter
Get Best Price Contact Now

Detail Information

Ozone Concentration: 1~1000PPHM Gas Sensor: Ozone Gas Sensor
Ozone Generator: Silent Discharge Type Ozone Generator Standard: ISO1431;ASTM 1149;IEC 60903 ;IEC60811-403;JIS K6259;ASTM D1171
Sample Holder: Static + Dynamic Combined Sample Holder Name: Ozone Corrosion Test Equipment
High Light:

1000PPHM Ozone Test Chamber


Dynamic Ozone Test Chamber


1000PPHM corrosion test equipment

Product Description

Description of Ozone Corrosion Test Equipment


1000PPHM Dynamic Ozone Corrosion Test Equipment is simulates and strengthens the ozone conditions in the atmosphere to test the ozone aging resistance and aging crack test of non-metallic materials and organic materials, such as paints, rubber, plastics,etc.


Technical Specifications of Ozone Corrosion Test Equipment


Name 1000PPHM Dynamic Ozone Corrosion Test Equipment
Model OC-250 OC-500 OC-800 OC-010
Internal Dimension (mm) 600*600*700 700*800*900 800*1000*1000 1000*1000*1000
Overall Dimension (mm) 960*1150*1860 1180*1350*2010 1280*1550*2110 1500*1550*2110
Interior Volume (L) 250 500 800 1000
Temperature Range 0℃ ~ +100 ℃
Temperature Fluctuation ± 0.5 ℃
Temperature Deviation ± 2.0 ℃
Humidity Range 30% ~ 98% RH
Humidity Deviation ± 2.5% RH
Cooling Rate Ambient ~ 0℃ within 20 min
Ozone Concentration 1~1000PPHM
Sample Holder Rotate Speed 0~10 r/min
Airflow Rate 0 ~ 60L/min
Clamps Tensile Stretch 5%~35%
Controller Programmable color LCD touch screen controller,Ethernet connection, PC Link
Standard ISO1431;ASTM 1149;IEC 60903 ;IEC60811-403;JIS K6259;ASTM D1171
Environmental Conditional 5℃~+35 ℃ ≤85% R




































Parameter of Ozone Corrosion Test Equipment

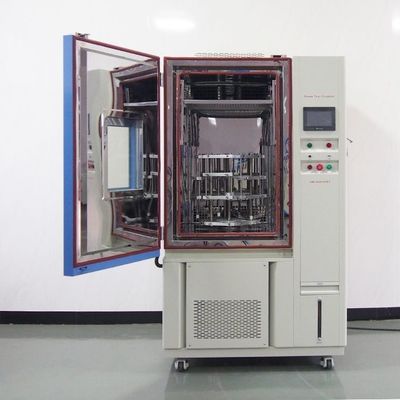

Dynamic Corrosion 1000PPHM Ozone Test Chamber 0
Dynamic + static sample rack, Customize the flat shelf to put larger test pieces Simple operation of the control screen, can connect to the computer,

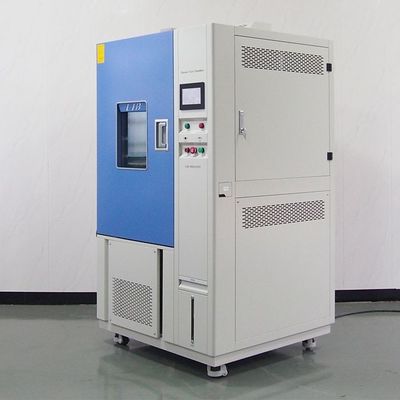

Dynamic Corrosion 1000PPHM Ozone Test Chamber 1
Can adjust the sample holder according to the sample, support custom sample holder Ozone probe, waterproof and high temperature resistant, high precision



Features of Ozone Corrosion Test Equipment


1.Touch panel controller, simple and friendly menu

2.Uniform exposure of all specimens using a rotating carousel

3.highly stable ozone concentration levels

4. Integrated ozone destructor with built-in safety interlocks

5. Ozone resistant wetted materials

6. ozone aging test equipment with 4 castors

7 Best after sales service: 3 year free parts maintenance.

8 Meet international test standards.

9 Rubber corrosion test equipment customization is available


Our Service of Ozone Corrosion Test Equipment


We have design staff, technical crew, QC team and package group, After-sales service group

We now have strict excellent regulate procedures for each process.

We experienced in for Thermal shock tester , Solar Radiation Uv Accelerated Weathering Tester , Salt Fog Humidity Chamber, Ozone Test Equipment.
