• CE 25PPM SO2 H2S CO2 Noxious Gas Test Chambers Gas Test Equipment
  • CE 25PPM SO2 H2S CO2 Noxious Gas Test Chambers Gas Test Equipment
  • CE 25PPM SO2 H2S CO2 Noxious Gas Test Chambers Gas Test Equipment
CE 25PPM SO2 H2S CO2 Noxious Gas Test Chambers Gas Test Equipment

CE 25PPM SO2 H2S CO2 Noxious Gas Test Chambers Gas Test Equipment

Product Details:

Place of Origin: China
Brand Name: LIB
Certification: CE,RoHS,ISO17025
Model Number: SO-800

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Packaging Details: Wooden cases standard export package
Delivery Time: 5-14 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 360 sets / quarter
Get Best Price Contact Now

Detail Information

Name: Noxious Gas Test Equipment Volume: 100L, 250L, 500L, 800L, 1000L, And More
Temperature: 0℃ To +80℃ Humidity: 30% To 98% RH
Ozone Concentration: 25+/-5 PPM Internal Dimensions: 1000*1000*1000(mm)
High Light:

SO2 H2S CO2 Noxious Gas Test Chambers

,

25PPM SO2 Gas Test Equipment

,

CE H2S CO2 Gas Test Equipment

Product Description

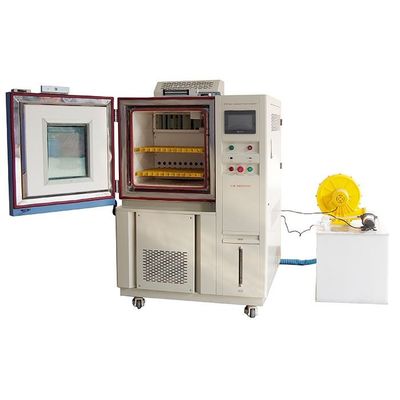

CE 25PPM SO2 H2S CO2 Noxious Gas Test Chambers Gas Test Equipment

Description of Noxious Gas Test Equipment

CE 25PPM SO2 noxious gas test equipment suitable for large electrical and electronic and other products, spare parts and materials in a variety of toxic (harm) gas airtight no light exposure test products containing toxic gas concentration (harm) of air environment, simulation in toxic (harm) gas under the condition of bad environment quality of products, parts and materials for stringent requirements and the analysis of the change.



CE 25PPM SO2 aging test chamber using a variety of gases, under a certain temperature and relative humidity environment to accelerate corrosion of materials or products, reproduce the damage degree of materials or products in a certain time range.



Standards of Noxious Gas Test Equipment

1.IEC 68-2-60 Test Method: Corrosion Test of Artificial Low Concentration Contaminated Gas,

2.EN 60068: Liquid mixed gases corrosion test

3.DIN 50018:sulfur dioxide test in saturated environment



Technical Specification of Noxious Gas Test Equipment

Name CE 25PPM SO2 Noxious Gas Test Equipment
Model SO-800 SO-1000
Internal dimensions (mm) 800*1000*1000 1000*1000*1000
Overall dimensions (mm) 1470*1520*2315 1670*1520*2315
Temperature range 15 ºC ~+80 ºC
Humidity range 30%~98% R.H
Temperature fluctuation ±0.5℃
SO2 concentration 25 ±5 ppm
Controller Programmable color display touch screen controller
  PC Link with software, R-232 interface
Interior material Glass fiber reinforced plastics
Exterior material Steel Plate with protective coating
Standard IEC 60068-2-42
Power & voltage AC 380V 50HZ



Detail of Noxious Gas Test Equipment

CE 25PPM SO2 H2S CO2 Noxious Gas Test Chambers Gas Test Equipment 0
Test Area Gas Cycle and Sensor
CE 25PPM SO2 H2S CO2 Noxious Gas Test Chambers Gas Test Equipment 1
SO2 Exhaust Device Automatic Inlet and Exhaust System



Gas Concentration

SO2:0.1~200ppm (10~200000ppb)

CO2:0.1~20ppm (100~20000ppb)

NO2:0.1~20ppm (100~20000ppb)

H2S:0.01~200ppm (10~200000ppb)

CL2:0.01~20ppm (10~20000ppb)



Features of Noxious Gas Test Equipment

1. Noxious gas test equipment,closed circulation laboratory is easier to save gas

2. After the experiment, SO2 gas will enter the toxic gas treatment box through the removal of Qigong energy, and then be discharged into the nature.

3.CO2 noxious gas test mahcine adopts international advanced technology, which can completely handle the gas after the test to the national standard, and discharge it into the natural environment, which is environmentally friendly and safe

4.Safety: simple operation, easy to use, safe, there will be no harmful gas residue, to ensure the personal safety of staff, while protecting the natural environment



CE 25PPM SO2 H2S CO2 Noxious Gas Test Chambers Gas Test Equipment 2
