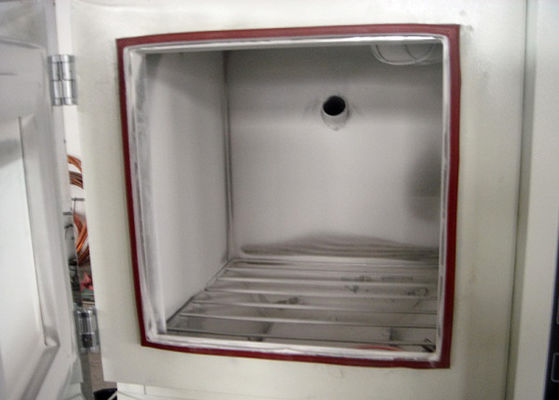

Laboratory 380V 50HZ Sand And Dust Test Chamber 1500 Liters / 2000 Liters
|Place of Origin:||China|
Payment & Shipping Terms:
|Minimum Order Quantity:||1 Set|
|Price:||USD2290 ~ USD1100 / SET|
|Packaging Details:||Wooden cases standard export package|
|Payment Terms:||L/C, D/A, D/P, T/T, Western Union, MoneyGram,paypal|
|Supply Ability:||360 sets / quarter|
|Overall Dimensions (mm):||1200*1450*1960||Temperature Range:||Ambient To +50℃|
|Normal Wire Diameter:||50um||Normal Width Of A Gap Between Wire:||75um|
|Standard:||IEC60529,ISO20653||The Talcum Powder Amoun:||2kg ~ 4kg/m3|
sand testing machine,
dust testing equipment
Sand Dust Ingress Protection Test Equipment for Quality Assurance Laboratory
Sand Dust Ingress Protection Test Equipment for Quality Assurance Laboratory, test chamber that simulates the climate and environment with sand and dust to carry out dust proof test and sand blowing test on samples.This product is suitable for all kinds of automobile parts to do dust and dust test, test parts include lights, meters, electrical dust cover, steering system, door locks, etc.
|Internal dimensions (mm)8||1000*1000*1000|
|Overall dimensions (mm)||
|Temperature range||Ambient to +50℃|
|Normal wire diameter||50um|
|Normal width of a gap between wire||75um|
|The Talcum powder amount||2kg ~ 4kg/m3|
|Fight time||0 ~ 99H59M|
|Fan cycle time||0 ~ 99H59M|
|Specimen power outlet||Dust-proof socket AC220V 16A|
|Controller||programmable color display touch screen controller|
|PC Link, R-232 interface|
|Vacuum system||Equipped with a pressure gauge, air filter, pressure regulator, connecting tube|
|Circulating fan||Enclosed alloy low-noise motor, multi-vane centrifugal fan|
|Heating system||Independent Nichrome electronic heating system|
|Exterior material||Steel Plate with protective coating|
|Interior material||SUS304 stainless steel|
|Safety System||Electric leakage, short circuit, Over-temperature, motor overheating Over-current protection/ Power failure memory function for controller|
|Power supply||380V 50HZ|
Larger capacity of 1500 liters and 2000 liters.
Standard and custom.
Suitable for large and more quantity products
Dust blowing through special wind tunnel and air outlet
Constant dust concentration
2 viewing windows with wipers
2 doors with tight seal
Programmable color LCD touch screen controller
USB and Ethernet
Strong stainless steel specimen shelves
Build -in power interface and vacuum system for specimens
Internal illumination in test room
Safety protection system
CE mark, ISO17025 calibration
Easy to operate
Dust collection section is located on bottom of test chamber.
A heater fixed into test chamber to keep dust dry.A viewing window with a manually controlled wiper.
The air velocity for the blowing of dust is controlled by a dust blowing mechanism that includes a motor and blower combination
- Equipment structure takes up stainless steel plate plus (41090) power for hull painting. It not only has good profile, but also has fine corrosion resistance.
- It has advanced and innovative control theory, it integrates three control systems of PLC, HMI and SOC in fine way. Control is correct by 100%, and you can experience the novel control feeling;
- It utilizes most powerful and reliable PLC and special modules in the industry circle. 50 programs and 2500 steps are provided for user to make setting/storage and running;
- It utilizes protection module for safe voltage, the withstand voltage can reach 500V. After energizing the equipment, the equipment will not be burned and it can protect the equipment by 100%.
- It has automatic safety protection switch, which has high sensitivity, can detect any state, cut off protection and give alarm in shortest time and assure safety of the personnel and equipment;
- It has air supply and circulating system, which can avoid dead angle of air flow in the chamber and improve the uniformity degree of product temperature and humidity.
Warranty & After Sales Service
3 Years Warranty, Lifelong Follow-up Services. We have a professional after-sales team, if you have any questions during operation, we will supply solutions to you with 24 hours.
How to Service?
- At first, our test chambers are produced based on 20 years product lifetime. Normally once test chambers have problems, we judge the problems, and send spare parts to our customers, and teach them how to change new parts on by email or video. Within 3 years, all spare parts and shipping cost (by DHL, TNT, and FedEx) paid by our company LIB.
- If customers need our engineers on site service, the company only need pay the ticket accommodation to our engineers, service is for free.
- If Products still can't use after our engineers repair, we will produce a new test chamber (same as the old one) to our customers with no charge.
- You can contact our local service center in overseas market to get service and product.
