Electromagnetic Lock Sand Testing Equipment Sand Dust IP Test Chamber IEC 60529

China Electromagnetic Lock Sand Testing Equipment Sand Dust IP Test Chamber IEC 60529 supplier
Electromagnetic Lock Sand Testing Equipment Sand Dust IP Test Chamber IEC 60529 supplier Electromagnetic Lock Sand Testing Equipment Sand Dust IP Test Chamber IEC 60529 supplier Electromagnetic Lock Sand Testing Equipment Sand Dust IP Test Chamber IEC 60529 supplier

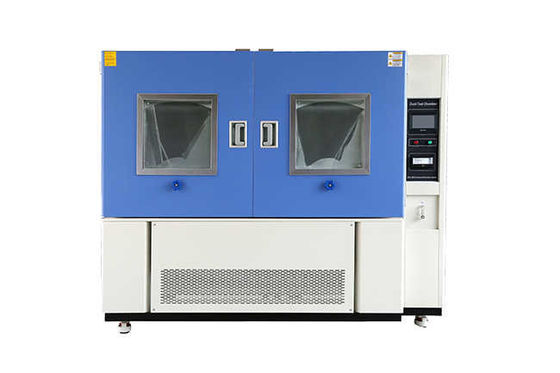

Large Image :  Electromagnetic Lock Sand Testing Equipment Sand Dust IP Test Chamber IEC 60529

Product Details:

Place of Origin: China
Brand Name: LIB
Certification: CE,ROHS
Model Number: DI-1500

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Packaging Details: Wooden Cases Standard Export Package
Delivery Time: 5-14 Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,Paypal
Supply Ability: 120Sets
Contact Now
Detailed Product Description
Normal Wire Diameter: 50um Nominal Width Of A Gap Between Wires: 75um
Fight Time: 0 ~ 99H59M Specimen Power Outlet: Dust-proof Socket 16A
Door Lock: Electromagnetic Lock Standard: IEC 60529, ISO 20653
High Light:

sand testing machine

,

dust testing equipment



Sand Dust IP Test Chamber IEC 60529 Test Equipment


♦ Application of Sand Dust IP Test Chamber IEC 60529 Test Equipment

Dust IP test equipment are made for the simulation of dust and sand conditions. These dust IP test chambers are used to test the exposure of test the exposure of automotive and electronic components under extreme environmental conditions in order to validate product seal.Dust ingress test methods included IEC60529, ISO20653 and many others.


♦ Introduction of Sand Dust IP Test Chamber IEC 60529 Test Equipment

IP5X IP6X Sand and Dust IP Test Chamber are capacity of 800 liters 1000 liters, 1500 liters, 2000 liters and larger volume. Considering that some specimens are small and large, so we designed and produced different size and configuration.

Dust IP test equipment are made for the simulation of dust and sand conditions. These dust IP test chambers are used to test the exposure of test the exposure of automotive and electronic components under extreme environmental conditions in order to validate product seal.Dust ingress test methods included IEC60529, ISO20653 and many others.

The airflow circulates upward from the bottom, blowing the dust circulation,forcing dust around the specimens. All models are upgrade to programmable controller and Ethernet access that provides simple operation and control.


♦Advantages of Sand Dust IP Test Chamber IEC 60529 Test Equipment

1. Capacity available 800 liters, 1000 liters, 1500 liters, 2000 liters
2. IEC60529, ISO20653 standard performed
3. IPX5 IPX6 IP Rating dust ingress test
4. IP68 IP54 IP55 dust and rain tests (our rain chambers available)
5. Internal illumination in test room
6. Strong stainless steel specimen shelves
7. Viewing window with wiper
8. Dust blowing through special wind tunnel and air outlet
9. Constant dust concentration
10. Programmable color LCD touch screen controller
11. Build -in power interface and vacuum system for specimens
12. Multi-language interface  USB and Ethernet
13. Standard and custom
14. CE mark


♦Main Parameter for Sand Dust IP Test Chamber IEC 60529 Test Equipment

Name

Sand Dust IP Test Chamber IEC 60529 Test Equipment

Model

DI-1500

DI-2000

Internal Dimension (mm)

1000*1500*1000

1000*2000*1000

Overall Dimension (mm)

1250*1900*1960

1300*2400*1960

Interior Volume (L)

1500

2000

Temperature Range

Ambient ~ +50℃

Humidity Range

< 30% RH

Normal Wire Diameter

50um

Nominal Width of a Gap Between wires

75um

Fight Time

0 ~ 99H59M

Blowing Time

0 ~ 99H59M

Specimen Power Outlet

Dust-proof socket 16A

Vacuum System

Equipped with a pressure gauge, air filter, pressure regulator, connecting tube

Controller

Programmable color LCD touch screen controller

Ethernet connection, PC Link

Door Lock

Electromagnetic lock

Exterior Material

A3 Steel Plate with protective coating

Interior Material

SUS304 stainless steel

Observation Window

Interior lighting, double-layer thermo stability silicone rubber sealing

Standard Configuration

Sample shelf, dust wiper, talcum powder(5kgs)

Power Supply

380V 50Hz

Maximum Noise

65 dBA

Standard

IEC 60529, ISO 20653


♦Main Details  for Sand Dust IP Test Chamber IEC 60529 Test Equipment

Electromagnetic Lock Sand Testing Equipment Sand Dust IP Test Chamber IEC 60529 0

1.Vacuum Pump

Vacuum pump is used to evacuate the test sample. There is a vacuum interface in the workroom, which can be directly connected to the sample.

2.Viewing Window

Double-layer tempered glass, specially designed seal, with good impact resistance and prevention of sand and dust leakage.

Electromagnetic Lock Sand Testing Equipment Sand Dust IP Test Chamber IEC 60529 1

3.Castor

Install 4 castors for ease moving, and with brakes function. Caster height adjustable.

4.Controller

PID programmable color touch screen controller, network connection computer.

Can edit 120 programs 20 segment.

LIB also can preset program into the controller based on user testing requirements.

The set system language is English for standard.

Electromagnetic Lock Sand Testing Equipment Sand Dust IP Test Chamber IEC 60529 2
