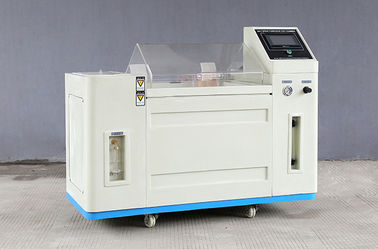

High Precision Salt Spray Corrosion Test Chamber For Surface Treatment Testing
|Place of Origin:||China|
Payment & Shipping Terms:
|Minimum Order Quantity:||1 Set|
|Packaging Details:||Wooden cases standard export package|
|Delivery Time:||5-14 days|
|Payment Terms:||L/C, D/A, D/P, T/T, Western Union, MoneyGram,paypal|
|Supply Ability:||360 sets / quarter|
|Internal Dimensions:||640*1000*500 (mm)||Temperature:||Ambient ～60℃|
|Usage:||Laboratory, University, Research Center||Warranty:||36 Months|
|Noise:||Less Than 65db||Application:||Salt Spray Corrosion Test Chamber,coating,Auto Parts|
salt fog test equipment,
salt mist test chamber
Standard 100L 210L 500L Salt Spray Corrosion Test Chamber For Surface Treatment Testing
●100L, 210L, 500L to 1000l, and more
●Anti-corrosion material glass fiber reinforced plastics to make chamber body durable
●Data collection and download to USB (option)
●Popular and factory price
●Equip automatic stir system
Standard 100L 210L 500L Salt Spray Corrosion Test Chamber For Surface Treatment Testing Implemented with hi- tech technology, Salt Spray Chamber brings forth an economical and highly effective solution for checking the corrosion resistance of a surface coating on the exposure to a salt environment. This is a time-tested product which is specifically engineered and developed for assessing the ability of the component to withstand corrosion due to atmospheric conditions. This inspection of the components ensures complete flexibility in the evaluation of real life weathering conditions.
Standard 100L 210L 500L Salt Spray Corrosion Test Chamber
|Temperature range||Ambient ～60℃|
|Humidity range||95% ~ 98% RH|
|Temperature fluctuations||+/- 0.5 ℃|
|Temperature deviation:||+/- 2.0 ℃|
|Test time||1~999 hours, settable|
|Spray deposition||1～2ml / 80cm2 · h|
|Spray type||Continuous / Periodic|
|Temperature Controller||LED display, P.I.D+S.S.R. microcomputer integrated controller|
|Temperature sensor||PT100Ω / MV A-class|
|Salt fog collected||Fog collector and fog measure cylinder|
|salt water filtration||Salt water filter near the suction tubes( Avoid the nozzle blockage)|
|Salt water preheating||Saturated air barrel|
|Spraying system||Atomizer tower and Spray nozzles (Fog is more fine and uniform distribution)|
|Interior /Exterior material||Glass fiber reinforced plastics|
|Standard configuration||Sample bracket / sample holder / spray nozzle / Fog collectors / measure cylinder|
|safety device||over-temperature protection, water shortage protection, over current protection, earth leakage protection|
|Sealing||Hydrostatic hood seal|
|Standard||ISO 3768/3769/3770, DIN50021-75, ASTM B-117, JIS H8502, IEC 68-2-11,IEC68-2-52, MIL-STD-750, ISO 9227|
|Power Supply||220V 50HZ|

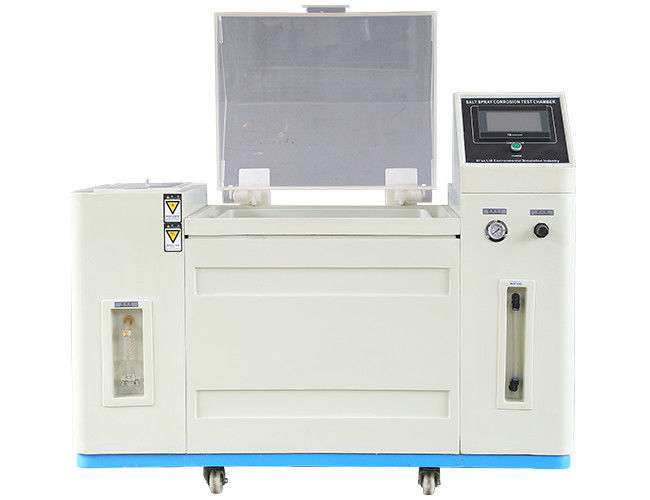

Fog chamber is made from glass fiber reinforced plastics,
Material is corrosion resistance, anti-aging, high strength.
Hydrostatic hood seal
Test specimen bracket / holder
Corrosion-resistant atomizer tower
Quartz spray nozzles.
2 fog collectors in cabinet
Spray deposition: 1～2ml / 80cm2 • h
Spray type: Continuous / Periodic
Fog is more fine and uniform distribution
Perform a variety of salt corrosion test.
Temperature control and display unit
Saturated barrel temperature control and display Unit
LED display, P.I.D+S.S.R. microcomputer integrated controller
Programmable color touch display controller (option)
Interior /Exterior material
Glass fiber reinforced plastics
Long service life
1.Automatic or manual adding water system, auto supplement water when lack of water, which ensure test will not be paused.
2.Temperature controller adopts digital display, PID control error ± 0.1 oc.
3.Double over heat protection and alarm when lack of water to ensure safety usage.
4.Test chamber uses steam direct heating mode, ensure fast heating and uniform to reduce standby time.
5.Precision glass nozzle is available to adjust fog and amount of fog.
▶Packed with export standard wooden case.
▶Strong packages can be used for sea, air, railway, truck transport and multimodal transport.
▶Quick ship, some models are in stock, ship in 1-3 days.
▶Provide door to door service for customers.
▶Package size: 1.7 m³, gross weight: 210kg
●Provide test solution
If you are end user, you have some test samples need environmental testing, you are not clear the tests, please contact us to get test solution. Will response
within 10 hours after got your requests.
If you are trading dealer, you got request from your customers, please let us know, our team will response you to send test solution for you.
If you want to participate in bidding, our company will send you full brochure with best price for you win the tender.
●Send specification and quotation
If you are interested in some models, you want to get specifications and quote, don’t hesitate to contact our elite team to get brochure and best price.
Will offer you one-stop service including machine, transportation, and installation, calibration, and spare parts…etc
●To be our agent
We welcome you to be our agent in countries to promote LIB test chambers to get win-win.Agent price, service
will support for you.
●Warranty & After Sales Service
3 Years Warranty, Lifelong Follow-up Services. We have a professional after-sales team, if you have any questions during operation, we will supply solutions to you with 24 hours.
Q:How to provide after sales service?
A:If customers need our engineers on site service, the company only need pay the ticket accommodation to our engineers, service is for free.
If Products still can't use after our engineers repair, we will produce a new test chamber (same as the old one) to our customers with no charge.
You can contact our local service center in overseas market to get service and product.
Q:Do you have an agent?
A:Currently we have agents in Europe, Asia, North America, South Africa, and can provide sales and technical services.
Q:Can we come to your factory to study and train?
A:Welcome to our factory for study and training, we provide this service free of charge.
Q:Can you send engineers to our company?
A:Yes, sure. We will communicate in advance to facilitate the bringing of tools and components
Q:Can I install and debug calibration on site?
A:Yes, we can send technicians and engineers to the customer site for installation, commissioning and calibration.
Q:What are the modes of transportation?
A:Air, sea, rail, multimodal transport.
Q:What is the packaging?
A:Standard export wooden box packaging, solid and firm.
Q:How do you calibrate the equipment?
A:We have our own calibration and third-party calibration such as ISO17025
Q:Is there a door to door service?
A:Yes, there is door to door service. We will arrange a one-stop service.
Q:What are the payment methods?
A:Payment methods are T/T, Paypal, L/C, VISA
Q:How long is the warranty period?
A:Warranty period is 3 years, free service for life
Q:Can you ship quickly?
A:Our delivery period is 3-21 days. Some of the hot-selling equipments are in stock and can be shipped within 1-3 days.
