Rubber Ozone Test Chamber Astm D1149 Ozone Testing Lab 250L 800L 1500L
Product Details:
| Place of Origin: | China |
| Brand Name: | LIB |
| Certification: | CE RoHS ISO17025 CSA |
| Model Number: | OC-500 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | USD9000 ~ USD25000 / SET |
| Packaging Details: | Wooden cases standard export package |
| Delivery Time: | 21 days ( check if have stock) |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 360 sets / quarter |
|
Detail Information |
|||
| Volume: | 100L, 250L, 500L, 800L, 1000L, And More | Temperature: | 0℃ To +100℃ |
|---|---|---|---|
| Humidity: | 30% To 98% RH | Ozone Concentration: | 1 To 1000PPHM |
| External Material: | Steel Plate With Protective Coating | Cooling Mode: | Air -cooled |
| Highlight: | ozone testing equipment,ozone test machine |
||
Product Description

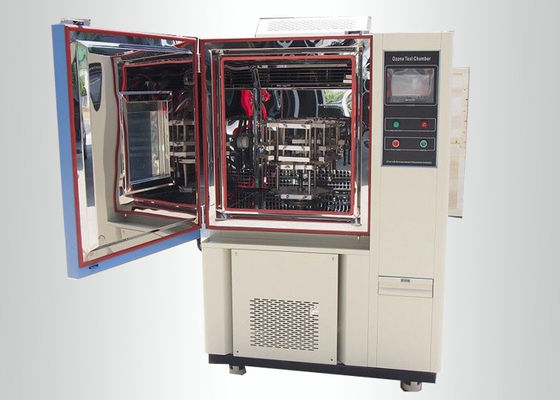

Astm D1149 Laboratory Rubber Ozone Test Chamber 250L 800L 1500L
Astm D1149 Laboratory Rubber Ozone Test Chamber 250L 800L 1500L is applicable for rubber or elastomer's resistance to ozone degradation. The elastomer samples are placed in a dynamic specimen holder in chamber that exposes them to ozone at concentration and duration specified by a testing specification or standard.
| Name | Astm D1149 Laboratory Rubber Ozone Test Chamber 250L 800L 1500L | ||
| Model | OC-250 | OC-500 | OC-1000 |
| Internal dimensions (mm) | 600*600*700 | 700*800*900 | 1000*1000*1000 |
| Overall dimensions (mm) | 960*1150*1860 | 1180*1350*2010 | 1400*1550*2110 |
| Capacity | 250 L | 500 L | 1000 L |
| Temperature range | 0℃～100℃ | ||
| Humidity range | 30% - 98％R.H | ||
| Temperature fluctuation | ±0.5℃ | ||
| Temperature deviation | ± 2.0 ℃ | ||
| Humidity deviation | ± 2.5% RH | ||
| Cooling rate | Ambient~ 0℃ within 20 min. | ||
| Ozone concentration: | 1～1000PPHM | ||
| Sample holder rotate speed: | 0~10 r/min | ||
| Airflow rate | 0 ~ 60L/min | ||
| Clamps tensile stretch : | 5%～35% | ||
| Exterior material | Steel Plate with protective coating | ||
| Interior material | SUS304 stainless steel | ||
| Standard | ASTM D 1149; IEC60811-403; ISO 1431; JIS K6259; ASTM D1171 | ||
- Automatic control and supply ozone gas
- Equipped with ozone generator
- Temperature from 0℃ to 100℃ Relative humidity from 30%~98％R.H
- Ozone concentrationcan be adjusted from 0 to1000PPHM
- Dynamic sample holder
ASTM D 1149; IEC60811-403; ISO 1431; JIS K6259; ASTM D1171
Test Area and Sampler Holder
Ozone test chamber is for testing of elastomers.
Test area is made of stainless-steel.
Equipped with dynamic sample holder.
(Static and dynamic holder as option)
Temperature Control
Mechanical compression refrigeration system
Refrigerating unit is French TECUMSEH compressor.
Environment friendly refrigerant
Temperature range: 0℃～100℃
Humidity Control
External isolation, stainless steel surface evaporation humidifier
Humidity range: 30% - 98％R.H
Ozone Generator
Ozone test chamber equipped with ozone generator to supply
ozone gas.
Automatic control and supply ozone gas.
Ozone concentration: 1～1000PPHM (Adjusted).
Control Operation
Programmable color display touch screen controller
Program: 100 groups in 999 sections; R-232 interface, PC Link
Measure, control and display Temperature, humidity and Ozone concentration.
Clamps tensile stretch can be sent on controller.
Ozone Exhaust Device
After completed ozone testing, click “Exha” button on controller
to exhaust ozone from test area to this exhaust device.
This absorbs ozone, to make workplace clean and safe.
Safety Protection
Humidifier dry-combustion protection
Over-temperature protection,
Over-current protection
Refrigerant high-pressure protection switch
Earth leakage protection
- Export Standard Wooden Box
- Can be used for Sea, Air, Railway, Truck transportation
- Package size: 3.3 m³, gross weight: 460kg
- Provide test solution
If you are end user, you have some test samples need environmental testing, you are not clear the tests, please contact us to get test solution. Will response
within 10 hours after got your requests.
If you are trading dealer, you got request from your customers, please let us know, our team will response you to send test solution for you.
If you want to participate in bidding, our company will send you full brochure with best price for you win the tender.
- Send specification and quotation
If you are interested in some models, you want to get specifications and quote, don’t hesitate to contact our elite team to get brochure and best price.
Will offer you one-stop service including machine, transportation, and installation, calibration, and spare parts…etc
- To be our agent
We welcome you to be our agent in countries to promote LIB test chambers to get win-win.Agent price, service
will support for you.
- Warranty & After Sales Service
3 Years Warranty, Lifelong Follow-up Services. We have a professional after-sales team, if you have any questions during operation, we will supply solutions to you with 24 hours.
