1000 Pphm Ozone Test Chamber Ozone Resistance Test For Rubber Ce Csa Iso Certification
Product Details:
| Place of Origin: | China |
| Brand Name: | LIB |
| Certification: | CE RoHS ISO17025 CSA |
| Model Number: | OC-250 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | USD9000 ~ USD25000 / SET |
| Packaging Details: | Wooden cases standard export package |
| Delivery Time: | 21 days ( check if have stock) |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 360 sets / quarter |
|
Detail Information |
|||
| External Material: | Steel Plate With Protective Coating | Cooling Mode: | Air -cooled |
|---|---|---|---|
| Standard: | CE RoHS CSA ISO17025 | Usage: | Laboratory, University, Research Center |
| Warranty: | 36 Months | Interior Material: | SUS 304# Stainless Steel |
| High Light: | ozone testing equipment,ozone test machine |
||
Product Description

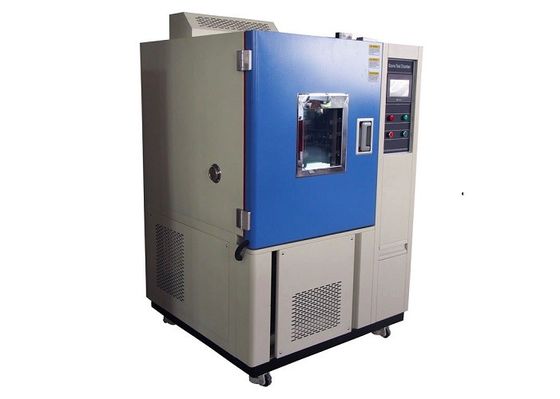

1000 Pphm Ozone Exposure Ozone Resistance Test Chamber Ce Csa Iso
1000 Pphm Ozone Exposure Ozone Resistance Test Chamber Ce Csa Iso is applicable for rubber or elastomer's resistance to ozone degradation. The elastomer samples are placed in a dynamic specimen holder in chamber that exposes them to ozone at concentration and duration specified by a testing specification or standard.
Products Parameters
| Name | 1000 Pphm Ozone Exposure Ozone Resistance Test Chamber Ce Csa Iso | ||
| Model | OC-250 | OC-500 | OC-1000 |
| Internal dimensions (mm) | 600*600*700 | 700*800*900 | 1000*1000*1000 |
| Overall dimensions (mm) | 960*1150*1860 | 1180*1350*2010 | 1400*1550*2110 |
| Capacity | 250 L | 500 L | 1000 L |
| Temperature range | 0℃～100℃ | ||
| Humidity range | 30% - 98％R.H | ||
| Temperature fluctuation | ±0.5℃ | ||
| Temperature deviation | ± 2.0 ℃ | ||
| Humidity deviation | ± 2.5% RH | ||
| Cooling rate | Ambient~ 0℃ within 20 min. | ||
| Ozone concentration: | 1～1000PPHM | ||
| Sample holder rotate speed: | 0~10 r/min | ||
| Airflow rate | 0 ~ 60L/min | ||
| Clamps tensile stretch : | 5%～35% | ||
| Exterior material | Steel Plate with protective coating | ||
| Interior material | SUS304 stainless steel | ||
| Standard | ASTM D 1149; IEC60811-403; ISO 1431; JIS K6259; ASTM D1171 | ||
Key Features
- Automatic control and supply ozone gas
- Equipped with ozone generator
- Temperature from 0℃ to 100℃ Relative humidity from 30%~98％R.H
- Ozone concentrationcan be adjusted from 0 to1000PPHM
- Dynamic sample holder
Standard
ASTM D 1149; IEC60811-403; ISO 1431; JIS K6259; ASTM D1171
Packages
- Export Standard Wooden Box
- Can be used for Sea, Air, Railway, Truck transportation
- Package size: 3.3 m³, gross weight: 460kg
Service
- Provide test solution
If you are end user, you have some test samples need environmental testing, you are not clear the tests, please contact us to get test solution. Will response
within 10 hours after got your requests.
If you are trading dealer, you got request from your customers, please let us know, our team will response you to send test solution for you.
If you want to participate in bidding, our company will send you full brochure with best price for you win the tender.
- Send specification and quotation
If you are interested in some models, you want to get specifications and quote, don’t hesitate to contact our elite team to get brochure and best price.
Will offer you one-stop service including machine, transportation, and installation, calibration, and spare parts…etc
- To be our agent
We welcome you to be our agent in countries to promote LIB test chambers to get win-win.Agent price, service
will support for you.
- Warranty & After Sales Service
3 Years Warranty, Lifelong Follow-up Services. We have a professional after-sales team, if you have any questions during operation, we will supply solutions to you with 24 hours.
