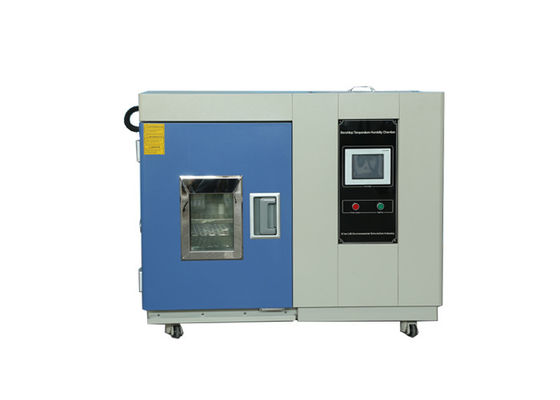

Control Humidity Cold Hot Temperature Chamber / Microclimate Benchtop Test Chamber

Control Humidity Cold Hot Temperature Chamber / Microclimate Benchtop Test Chamber

Product Details:

Place of Origin: China
Brand Name: LIB INDUSTRY
Certification: CAS.CE,RoHS
Model Number: TH-5

Payment & Shipping Terms:

Minimum Order Quantity: 1Set
Packaging Details: Standard Wooden Box,package size(mm):1170x960x1150
Delivery Time: 3-18 workday
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,Paypal
Supply Ability: 140Set/Quarter
Get Best Price Contact Now

Detail Information

Internal Dimension (mm): 320*350*450 Temperature Range: -20℃ ~+150 ℃
Low Type: Ⅰ: -40℃ Ⅱ:-70℃ Humidity Range: 20% ~ 98% RH
Temperature Resolution: ± 0.001 ℃ Environmental Conditional: 5℃~+40 ℃ ≤85% RH
High Light:

temperature and humidity test chamber

,

temp humidity chamber

Product Description

Control Humidity Cold Hot Temperature Chamber / Microclimate Benchtop Test Chamber

Control Humidity Cold Hot Temperature Chamber Microclimate Benchtop Test Chamber



Description

Temperature Chamber Microclimate Benchtop Test Chamber compact, portable and affordable, supply a large range of standard and custom temperature and climate test chambers to suit many types of environmental test conditions.Standard configuration including 2 adjustable trays,1 test hole with silicone screw plug,Multi - language color display.



Application

Temperature Chamber Microclimate Benchtop Test Chamber are mainly used to Aerospace products information electronic instrumentation materials electrical and electronic products are all kinds of electronic elements in the high and low temperature or damp and hot environment test its various performance indicators application field.Examples include cables, mobile phones, computers, screws, metals, aerospace parts, textiles, ceramics, portable power supplies, PV panels, etc.



Main Technical Parameter
Model TH-50
Internal dimension (mm) 320*350*450
Overall dimension (mm) 800*1050*950
Temperature range -20℃ ~+150 ℃
Low type Ⅰ: -40℃ Ⅱ:-70℃
Humidity range 20% ~ 98% RH
Temperature fluctuations ± 0.5 ℃
Temperature deviation ± 2.0 ℃
Humidity deviation ± 2.5% RH
Heating rate 3 ℃ / min
Cooling rate 1 ℃ / min
Temperature Sensor PTR Platinum Resistance PT100Ω/MV A-class
Temperature Resolution ± 0.001 ℃
Humidity sensor Dry and wet bulb sensor
Power Supply AC220V 50HZ
Environmental conditional 5℃~+40 ℃ ≤85% RH



Standard Features

Temperature control and display unit

Humidity control and display unit

2 pieces of adjustable and removable shelving.

Bottom install 4 castors for ease moving, and with brakes function

Viewing window with interior lighting

Programs reach to 999 groups and 999 sections

Test hole with silicone screw plug

Safety protection system

Can perform long time 85 °C/85 % RH tests

Temperature sensor PT-100 , Resolution: ± 0.001 ℃

                             Control Humidity Cold Hot Temperature Chamber / Microclimate Benchtop Test Chamber 0



Design and Construction

Control Humidity Cold Hot Temperature Chamber / Microclimate Benchtop Test Chamber 1

Test Area

Material of the test cabinet is high quality SUS304 stainless steel.

Test hole, sealed with silicone screw plug.

Temperature sensor Pt100 platinum

Humidity sensor dry and wet bulb

2 pieces of adjustable and removable shelves



Air Circulation

Air circulation fans in the workroom of the chamber.

The real wall of test area equipped with chip-type wind board.

Air flowing from top of wind board which control air direction return to air inlet to achieve air circulation.



Cooling System

Mechanical compression refrigeration system

Refrigerating unit is French TECUMSEH compressor.

Two cascade compressor

Environment friendly refrigerant R404a for first stage,

R23 for the second stage



Humidity System

External isolation, stainless steel surface evaporation humidifier

Automatic water supply



Safety Protection

Over temperature protection

Water shortage protection

Humidifier dry combustion protection

Refrigerant high pressure protection

Over current protection

Earth leakage protection



Our Services

3 Years Warranty, Lifelong Follow-up Services.

◆​Training how to install and operate the machine.

◆​Training how to maintain the machine.

◆​Response within 24 hours once got questions from customers.

◆​Send spare parts within 2 days after got notice.

◆​Engineers available to service machines overseas to install and commissioning.
