Stainless Steel Climatic Test Chamber Low Temperature High Humidity Controlled

Stainless Steel Climatic Test Chamber Low Temperature High Humidity Controlled

Product Details:

Place of Origin: china
Brand Name: LIB
Certification: CAS,Rohs,CE
Model Number: TH-100

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: USD2800 ~ USD19000 / SET
Packaging Details: Wooden cases standard export package
Delivery Time: 3-10 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,Paypal
Supply Ability: 360 sets / quarter
Get Best Price Contact Now

Detail Information

Low Type: -40℃/-70℃/ -86℃ Humidity Range: 20% ~ 98% RH
Overall Dimension (mm): 860*1050*1620 Humidity Deviation: ± 2.5% RH
Interior Material: SUS304 Stainless Steel Power Supply: 220V 50HZ
High Light:

temperature and humidity test chamber

,

temp humidity chamber

Product Description

Stainless Steel Climatic Test Chamber Low Temperature High Humidity Controlled

Testing Low Temperature High Humidity Controlled Climatic Chamber

Description



Testing Low Temperature High Humidity Controlled Climatic Chamber , Thermotron Humidity Chamberis suitable for the safety performance test of the electronic components to provide reliability test, product selection test, and through this equipment test, can improve product reliability and quality control of products.Temperature Humidity Climatic Test Chamber Price is applied to test the materials in heat-resistance, cold-resistance, dry-resistance, moisture-resistance. It is simple to operate and program easy to edit. It can show the set values and operative time.



Application



Testing Low Temperature High Humidity Controlled Climatic Chamber, Thermotron Humidity Chamber manufacturer is the perfect testing machine of electronic components, metal, chemical materials, automation components, communication module, national defense industry, aerospace industry, BGA, PCB substrate, electronic chip IC, semiconductor ceramic and high polymer materials.

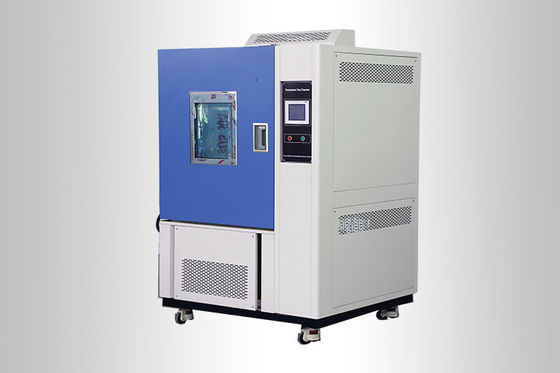

Stainless Steel Climatic Test Chamber Low Temperature High Humidity Controlled 0



Products Parameters
Model TH-100
Internal dimension (mm) 400*500*500
Overall dimension (mm) 860*1050*1620
Temperature range -20℃ ~+150 ℃
Low type Ⅰ: -40℃ Ⅱ:-70℃ Ⅲ: -86℃
Humidity range 20% ~ 98% RH
Temperature fluctuations ± 0.5 ℃
Temperature deviation ± 2.0 ℃
Humidity deviation ± 2.5% RH
Heating rate 3 ℃ / min
Cooling rate 1 ℃ / min
Controller Programmable color LCD touch screen controller
  PC Link, R-232 interface
Temperature Sensor PTR Platinum Resistance PT100Ω/MV A-class
Humidity sensor Dry and wet bulb sensor
Heater Nichrome heater
Cooling system Mechanical compression refrigeration system
Refrigerating unit French TECUMSEH compressor
Exterior material Steel Plate with protective coating
Interior material SUS304 stainless steel
Thermal insulation Polyurethane foam
Observation window Interior lighting , double-layer thermo stability silicone rubber sealing
Standard configuration 1 Cable hole (Φ 50,) with plug; 2 shelves
Timing Function 0.1~999.9 (S,M,H) settable
Power Supply 220V 50HZ
Environmental conditional 5℃~+40 ℃ ≤85% RH



Key Features
  • Temperature control and display unit
  • Humidity control and display unit
  • Programmable color LCD touch screen controller
  • Mechanical compression refrigeration system
  • Build-in water tank & automatic water supply
  • USB and Ethernet
  • Adjustable and removable sample shelves
  • Safety protection system
  • Temperature accuracy 0.1℃
  • Different models

Stainless Steel Climatic Test Chamber Low Temperature High Humidity Controlled 1

Advantages:



1. Different size chamber, from benchtops, reach-in to walk-in room
2. Various temperature range & humidity range
3. High stability of cooling system and humidity system
4. Data collection and download to USB
5. Popular and factory price
6. 3-Year warranty
7. Quick response within 24 hours



Design and Construction



Test Area

Material of the test cabinet is high quality SUS304 stainless steel.

Test hole (Φ 50mm, Φ125mm), sealed with silicone screw plug.

Temperature sensor Pt100 platinum

Humidity sensor dry and wet bulb

2 pieces of adjustable and removable shelves



Air Circulation

3 Air circulation fans in the workroom of the chamber.

The real wall of test area equipped with chip-type wind board. Air flowing from top of wind board which control air direction return to air inlet to achieve air circulation.



Cooling System

Mechanical compression refrigeration system

Refrigerating unit is French TECUMSEH compressor.

Two cascade compressor

Environment friendly refrigerant R404a for first stage,

R23 for the second stage



Humidity System

External isolation, stainless steel surface evaporation humidifier

Automatic water supply



Control Panel

PLC controller

Programmable color display touch screen controller.

Programs reach to 999 groups and 999 sections

RS-232 /RS-485 interface, PC Link, LAN network



Large Viewing Window

Interior lighting

Window coated with conducting film to protect it from frost.

Size is 250*300mm W*H.



Packing & Shipping
  • Export Standard Wooden Box
  • Can be used for Sea, Air, Railway, Truck transportation
  • Package size: 2.55CBM, gross weight: 310kg



Service



Provide test solution

If you are end user, you have some test samples need environmental testing, you are not clear the tests, please contact us to get test solution. Will response

within 10 hours after got your requests.

If you are trading dealer, you got request from your customers, please let us know, our team will response you to send test solution for you.

If you want to participate in bidding, our company will send you full brochure with best price for you win the tender.





Send specification and quotation

If you are interested in some models, you want to get specifications and quote, don’t hesitate to contact our elite team to get brochure and best price.

Will offer you one-stop service including machine, transportation, and installation, calibration, and spare parts…etc



To be our agent

We welcome you to be our agent in countries to promote LIB test chambers to get win-win.Agent price, service

will support for you.



Warranty & After Sales Service

3 Years Warranty, Lifelong Follow-up Services. We have a professional after-sales team, if you have any questions during operation, we will supply solutions to you with 24 hours.
