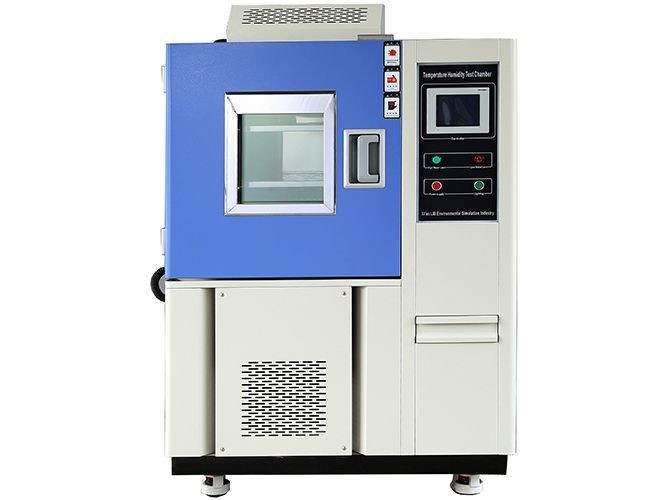

Laboratory Programmable Constant Humidity Chamber For Cell Battery RoHS

Laboratory Programmable Constant Humidity Chamber For Cell Battery RoHS

Product Details:

Place of Origin: China
Brand Name: LIB
Certification: RoHS,CE,ISO17025
Model Number: TH-1000

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: USD2680 ~ USD6800 / SET
Packaging Details: Wooden cases standard export package
Delivery Time: 3-14 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,paypal
Supply Ability: 180 sets / quarter
Get Best Price Contact Now

Detail Information

Low Type: -20℃/-40℃/-60℃/-70℃/-86℃ Temperature Range: -20℃ ~+150 ℃
Interior Material: SUS304 Stainless Steel(2.5mm) Usage: Temperature Humidity Test Chamber For Resisting Heat
Warranty: 36monthes Inner Size: Option,50L,80L,100L,125L,500L,800L,1000L
High Light:

temperature and humidity test chamber

,

temp humidity chamber

Product Description

Laboratory Programmable Constant Humidity Chamber For Cell Battery RoHS

Laboratory Programmable Constant Humidity Chamber For Cell battery

Advantage of Programmable Constant Humidity Chamber

▶Temperature range up to +150°C
▶9+model sizes (50 to 1000 litres volume)
▶Active humidity control 20% to 98% RH

Description of Programmable Constant Humidity Chamber

Laboratory Programmable Constant Humidity Chamber For Cell battery,Temperature and humidity test chambers are available as standard products in a variety of sizes to suit your needs. Our environmental test chambers are often used for steady-state stability testing, basic temperature cycling and accelerated stress testing.

Main Technical Parameter of Programmable Constant Humidity Chamber



Name

Laboratory Programmable Constant Humidity Chamber For Cell battery

Model

TH-1000

Internal dimension (mm)

1000*1000*1000

Overall dimension (mm)

1500*1550*2110

Temperature range

-20℃ ~+150 ℃

Low type

Ⅰ: -40℃ Ⅱ:-70℃ Ⅲ: -86℃

Humidity range

20% ~ 98% RH

Temperature fluctuations

± 0.5 ℃

Temperature deviation

± 2.0 ℃

Humidity deviation

± 2.5% RH

Heating rate

3 ℃ / min

Cooling rate

1 ℃ / min

Controller

Programmable color LCD touch screen controller



PC Link, R-232 interface

Temperature Sensor

PTR Platinum Resistance PT100Ω/MV A-class

Humidity sensor

Dry and wet bulb sensor

Heater

Nichrome heater

Cooling system

Mechanical compression refrigeration system

Refrigerating unit

French TECUMSEH compressor

Refrigerant

R404A, R23

Humidifier

External isolation, stainless steel surface evaporation humidifier

Dehumidification system

Evaporator

Air circulation

Centrifugal wind fan

Water supply system

Automatic water supply; Water purification system

Exterior material

Steel Plate with protective coating

Thermal insulation

Polyurethane foam

Observation window

Interior lighting , double-layer thermo stability silicone rubber sealing

Standard configuration

1 Cable hole (Φ 50,) with plug; 2 shelves

Timing Function

0.1~999.9 (S,M,H) settable



>>>Click here Send inquiry now, get more details!



Detail Description of Programmable Constant Humidity Chamber

Laboratory Programmable Constant Humidity Chamber For Cell Battery RoHS 0

Test Area

2pcs 2.5mm SUS304 stainless steel shelf;
Each shelf loads 50KGS;
Specimen shelf height can be adjustable;
Specimen shelf can be remove;
Punching design



Controller
Programmable color touch screen type 120 programs,
99 steps perprogram
RS232 for PC link
More option function:Multi-language display, PC link,USB, App



Cable hole
Internal diameters 50mm,
125mm or custom; Rubber sealing;
Stainless steel cover;
Supply power to workroom's specimen, to better finish testing Beautiful



View window
Double-layer insulating glass;
Lighting installed at the middle of glass (9W power );
Lighting button located at the bottom of controller;
Coated with conducing film to protect frosting;
User can see workroom clearly



Service

3 Years Warranty, Lifelong Follow-up Services. We have a professional after-sales team, if you have any questions during operation, we will supply solutions to you with 24 hours.

Packaging and Delivery



Wooden cases standard export package

1. Price terms: EXW, FOB,CIF Shanghai or Shenzhen.
2. Payment terms: L/C. Western Union. Paypal. T/T,
3. Sample lead time: 3-8 days
4. Mass production time: 10-15 days depending on the order qty
5. Delivery method time: By air, by sea or combined transportation,
Door to door service with Express: Fedex, DHL, UPS, EMS

FAQ

Q :How to provide after sales service?
A:If customers need our engineers on site service, the company only need pay the ticket accommodation to our engineers, service is for free.
If Products still can't use after our engineers repair, we will produce a new test chamber (same as the old one) to our customers with no charge.
You can contact our local service center in overseas market to get service and product.



Q: Do you have an agent?
A: Currently we have agents in Europe, Asia, North America, South Africa, and can provide sales and technical services.



Q: Can we come to your factory to study and train?
A: Welcome to our factory for study and training, we provide this service free of charge.



Q :How do you calibrate the equipment?
A We have our own calibration and third-party calibration such as ISO17025



Q: Is there a door to door service?
A :Yes, there is door to door service. We will arrange a one-stop service.



Q :What are the payment methods?
A :Payment methods are T/T, Paypal, L/C, VISA



Q:How long is the warranty period?
A :Warranty period is 3 years, free service for life
