Electronic Power Ozone Test Machine AC380V 50HZ High Efficiency For Tires

Electronic Power Ozone Test Machine AC380V 50HZ High Efficiency For Tires

Product Details:

Place of Origin: China
Brand Name: LIB
Certification: CE,RoHS,ISO17025
Model Number: OC-250

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: USD6800~ USD25000 / SET
Packaging Details: Wooden cases standard export package
Delivery Time: 3-14 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 360 sets / quarter
Get Best Price Contact Now

Detail Information

Warranty: 36 Months Interior Material: SUS 304 Stainless Steel
Exterior Material: Steel Plate With Protective Coating Controller : Programmable Color LCD Touch Screen Controller
Power: AC 380V±10% 50Hz Power & Voltage: AC380V 50HZ
High Light:

ozone testing equipment

,

ozone aging test chamber

Product Description

Electronic Power Ozone Test Machine AC380V 50HZ High Efficiency For Tires

Electronic Power Simulated Climatic Weathering Rubber Ozone Test Chamber For Tires

Standard of Weathering Rubber Ozone Test Chamber


√ ASTM D 1149
√ IEC60811-403
√ ISO 1431
√ JIS K6259
√ ASTM D1171


Description of Weathering Rubber Ozone Test Chamber


Electronic Power Simulated Climatic Weathering Rubber Ozone Test Chamber For Tires in the condition of ozone exposure,to simulate and measure rubber aging by means of ozone within a few days.


Electronic Power Simulated Climatic Weathering Rubber Ozone Test Chamber For Tires Built with dynamic and static sample holders and others in accordance with test method of ASTM D1149, IEX6006811-403, ISO1431, ASTM D1171.All models are upgrade to programmable controller and Ethernet access that provides simple operation and control.



Main Technical Parameter of Weathering Rubber Ozone Test Chamber
Name Electronic Power Simulated Climatic Weathering Rubber Ozone Test Chamber
Model OC-250 OC-500 OC-800 OC-010
Internal dimensions (mm) 600*600*700 700*800*900 800*1000*1000 1000*1000*1000
Overall dimensions (mm) 960*1150*1860 1180*1350*2010 1280*1550*2110 1500*1550*2110
Temperature range 0℃~100℃
Humidity range 30% - 98%R.H
Temperature fluctuation ±0.5℃
Temperature deviation ± 2.0 ℃
Humidity deviation ± 2.5% RH
Cooling rate Ambient~ 0℃ within 20 min.
Ozone concentration: 1~1000PPHM
Sample holder rotate speed: 0~10 r/min
Airflow rate 0 ~ 60L/min
Clamps tensile stretch : 5%~35%
Temperature Sensor PTR Platinum Resistance PT100Ω/MV A-class
Humidity sensor Dry and wet bulb sensor
Heater Nichrome heater
Cooling system Mechanical compression refrigeration system
Refrigerating unit French TECUMSEH compressor
Humidifier External isolation, stainless steel surface evaporation humidifier
Dehumidification system Evaporator
Air circulation Centrifugal wind fan

Safety device



Humidifier dry-combustion protection; over-temperature protection;

over-current protection; Refrigerant high-pressure protection; Water shortage protection,

Earth leakage protection;

Exterior material Steel Plate with protective coating
Interior material SUS304 stainless steel
Thermal insulation Polyurethane foam
Observation window Interior lighting , double-layer thermo stability silicone rubber sealing
Power & voltage: AC380V 50HZ
Standard ASTM D 1149; IEC60811-403; ISO 1431; JIS K6259; ASTM D1171
Design and Construction of Weathering Rubber Ozone Test Chamber

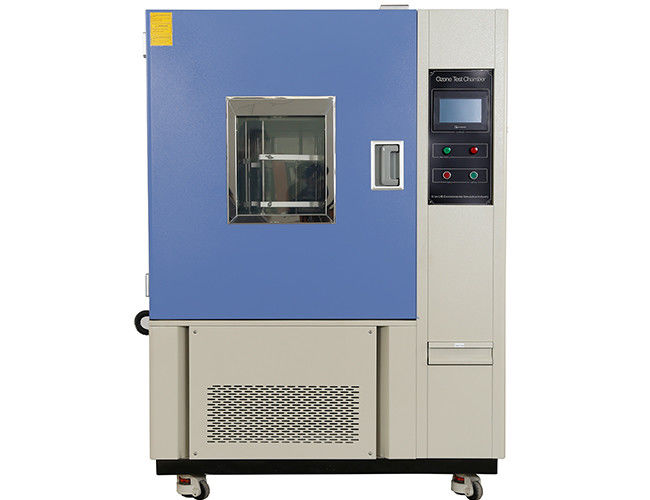

Electronic Power Ozone Test Machine AC380V 50HZ High Efficiency For Tires 0

1.Control Operation
Programmable color display touch screen controller
Program: 100 groups in 999 sections; RS-232 interface
PC Link with software.
Control Temperature, humidity and Ozone concentration on controller.
Turning the round button to control holder rotate speed and clamps tensile stretch.

2.Test area and sampler holder
Ozone test chamber is for testing of elastomers.
Test area is made of stainless-steel.
Equipped with dynamic sample holder.
Static + dynamic combined sample holder, can stretch samples, sample holder can 360° rotated, meet different test standards

3.PC Link

Ethernet for PC link
Easy for customers to operate on the computer
User-friendly downloading of data

Easy to monitor equipment anytime, anywhere

4.Gas Sensor
Detected the ozone gas concentration, High accuracy, easy to exchange



Features of Weathering Rubber Ozone Test Chamber



1.Automatic control and supply ozone gas

2.Equipped with ozone generator3.Temperature from 0℃ to 100℃

3.Relative humidity from 30%~98%R.H

4.Ozone concentration can be adjusted from 0 to 1000PPHM

5.Dynamic sample holder



Service

▶3 Years Warranty, Lifelong Follow-up Services.

▶we will supply solutions to you with 24 hours.

▶On site service

▶Video training service

Packaging and Delivery

1.packing:Wooden cases standard export package

2. Price terms: EXW, FOB,CIF Shanghai or Shenzhen.
3. Payment terms: L/C. Western Union. Paypal. T/T,
4. Sample lead time: 3-8 days
5. Mass production time: 10-15 days depending on the order qty
6. Delivery method time: By air, by sea or combined transportation,
7.Door to door service with Express: Fedex, DHL, UPS, EMS

FAQ

1.Can I install and debug calibration on site?
-- Yes, we can send technicians and engineers to the customer site for installation, commissioning and calibration.



2.Can you send engineers to our company?
--Yes, sure. We will communicate in advance to facilitate the bringing of tools and components.

3.Can we come to your factory to study and train?
-- Welcome to our factory for study and training, we provide this service free of charge.



4.Do you have an agent?
-- Currently we have agents in Europe, Asia, North America, South Africa, and can provide sales and technical services.



5.Can you ship quickly?

-- Our delivery period is 3-21 days. Some of the hot-selling equipments are in stock and can be shipped within 1-3 days.



6. How long is the warranty period?
-- Warranty period is 3 years, free service for life
