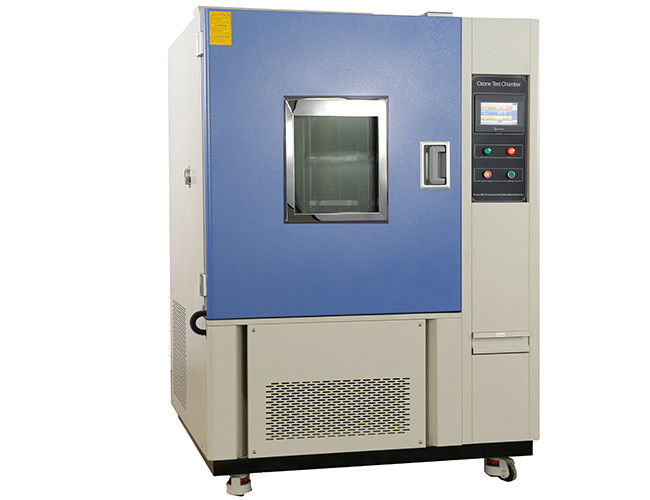

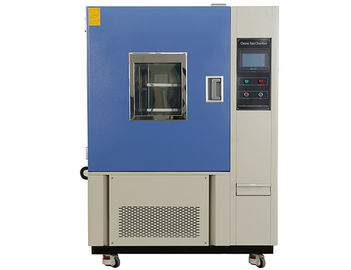

Aging Control Ozone Testing Equipment Steel Plate For Rubber Cracking

Aging Control Ozone Testing Equipment Steel Plate For Rubber Cracking

Product Details:

Place of Origin: China
Brand Name: LIB
Certification: CE,RoHS,ISO17025
Model Number: OC-250

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: USD6800~ USD25000 / SET
Packaging Details: Wooden cases standard export package
Delivery Time: 3-14 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 360 sets / quarter
Get Best Price Contact Now

Detail Information

Warranty: 36 Months Interior Material: SUS 304 Stainless Steel
Exterior Material: Steel Plate With Protective Coating Controller : Programmable Color LCD Touch Screen Controller
Power: AC 380V±10% 50Hz Ozone Concentration: 0~1000pphm Adjustable
High Light:

ozone testing equipment

,

ozone aging test chamber

Product Description

Aging Control Ozone Testing Equipment Steel Plate For Rubber Cracking

Laboratory Conditioning Stability Aging Control Ozone Corrosion Test Chamber For Rubber Cracking

Standard of Aging Control Ozone Corrosion Test Chamber


√ ASTM D 1149
√ IEC60811-403
√ ISO 1431
√ JIS K6259
√ ASTM D1171

Ozone Test Chamber Standard Type

1.Ozone generated by Ultraviolet rays
2.Customer-specific solutions (Tire, hose, belt,
rubber gloves,cable,PCB,etc.)
3.Providing selective static and dynamic testing mode

4.Accept customization


Description of Aging Control Ozone Corrosion Test Chamber

Laboratory Conditioning Stability Aging Control Ozone Corrosion Test Chamber For Rubber Cracking

*Providing precise and accurate ozone  concentration environment for rubber and polymer test.
*Wide ranges of ozone concentration (normal 0~1000pphm, or according to customer's request) can satisfy user's different requirements.



Laboratory Conditioning Stability Aging Control Ozone Corrosion Test Chamber For Rubber Cracking Widely applied to

(1) Accelerated ageing research

(2) Quality control and assurance tests and

(3) R&D laboratory formula experiments for cracking resistance.

Main Technical Parameter of Aging Control Ozone Corrosion Test Chamber
Name

Laboratory Conditioning Stability Aging Control Ozone Corrosion Test Chamber

Model OC-250 OC-500 OC-800 OC-010
Internal dimensions (mm) 600*600*700 700*800*900 800*1000*1000 1000*1000*1000
Overall dimensions (mm) 960*1150*1860 1180*1350*2010 1280*1550*2110 1500*1550*2110
Temperature range 0ºC~100ºC
Humidity range 30% - 98%R.H
Temperature fluctuation ±0.5ºC
Temperature deviation ± 2.0 ºC
Humidity deviation ± 2.5% RH
Cooling rate Ambient~ 0ºC within 20 min.
Ozone concentration: 1~1000PPHM
Sample holder rotate speed: 0~10 r/min
Airflow rate 0 ~ 60L/min
Clamps tensile stretch : 5%~35%



Standard Features of Aging Control Ozone Corrosion Test Chamber
Temperature Sensor PTR Platinum Resistance PT100Ω/MV A-class
Humidity sensor Dry and wet bulb sensor
Heater Nichrome heater
Cooling system Mechanical compression refrigeration system
Refrigerating unit French TECUMSEH compressor
Humidifier External isolation, stainless steel surface evaporation humidifier
Dehumidification system Evaporator
Air circulation Centrifugal wind fan
Safety device Humidifier dry-combustion protection; over-temperature protection;
over-current protection; Refrigerant high-pressure protection; Water shortage protection,
Earth leakage protection;
Exterior material Steel Plate with protective coating
Interior material SUS304 stainless steel
Thermal insulation Polyurethane foam
Observation window Interior lighting , double-layer thermo stability silicone rubber sealing
Power & voltage: AC380V 50HZ
Standard ASTM D 1149; IEC60811-403; ISO 1431; JIS K6259; ASTM D1171
Design and Construction of Aging Control Ozone Corrosion Test Chamber

Aging Control Ozone Testing Equipment Steel Plate For Rubber Cracking 0

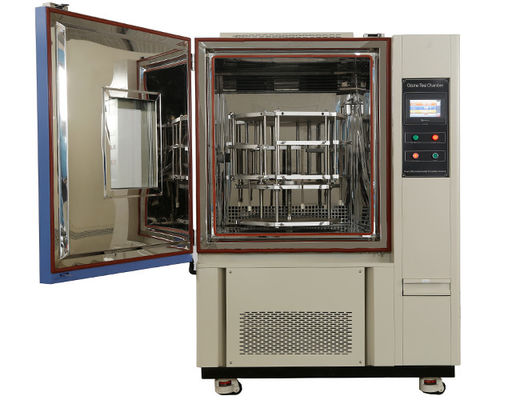

1.Test area and sampler holder

Ozone test chamber is for testing of elastomers.

Test area is made of stainless-steel.

Equipped with dynamic sample holder.

Static + dynamic combined sample holder, can stretch samples, sample holder can 360° rotated, meet different test standards

2.Control Operation

Programmable color display touch screen controller

Program: 100 groups in 999 sections; RS-232 interface

PC Link with software.

Control Temperature, humidity and Ozone concentration on controller.

Turning the round button to control holder rotate speed and clamps tensile stretch.

3.PC Link

Ethernet for PC link
Easy for customers to operate on the computer
User-friendly downloading of data

Easy to monitor equipment anytime, anywhere

Beautiful

4.Gas Sensor

Detected the ozone gas concentration, High accuracy, easy to exchange

Service

▶3 Years Warranty, Lifelong Follow-up Services.

▶we will supply solutions to you with 24 hours.

▶On site service

▶Video training service

Packaging and Delivery

1.packing:Wooden cases standard export package

2. Price terms: EXW, FOB,CIF Shanghai or Shenzhen.
3. Payment terms: L/C. Western Union. Paypal. T/T,
4. Sample lead time: 3-8 days
5. Mass production time: 10-15 days depending on the order qty
6. Delivery method time: By air, by sea or combined transportation,
7.Door to door service with Express: Fedex, DHL, UPS, EMS

FAQ

1.Can I install and debug calibration on site?
-- Yes, we can send technicians and engineers to the customer site for installation, commissioning and calibration.



2.Can you send engineers to our company?
--Yes, sure. We will communicate in advance to facilitate the bringing of tools and components.

3.Can we come to your factory to study and train?
-- Welcome to our factory for study and training, we provide this service free of charge.



4.Do you have an agent?
-- Currently we have agents in Europe, Asia, North America, South Africa, and can provide sales and technical services.



5.Can you ship quickly?

-- Our delivery period is 3-21 days. Some of the hot-selling equipments are in stock and can be shipped within 1-3 days.



6. How long is the warranty period?
-- Warranty period is 3 years, free service for life
