Electric Battery Steam Precision Industrial Drying Oven Heating Test Chamber

Electric Battery Steam Precision Industrial Drying Oven Heating Test Chamber

Product Details:

Place of Origin: China
Brand Name: LIB
Certification: CE
Model Number: O-225

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Packaging Details: Export Standard Wooden Box *Can be Used for Sea, Air, Railway, Truck and Multimodal Transport
Delivery Time: 5-10 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal
Supply Ability: 150Sets/ Quarter
Get Best Price Contact Now

Detail Information

Temperature Range: Ambient ~+400℃ Overall Dimension: 500*600*750
Overall Dimensions: 800*950*1000 Temperature Fluctuation: ±0.5℃
Temperature Deviation: ±2.0℃ Power Supply: AC220V 50HZ
High Light:

heating and drying ovens

,

high temperature drying oven

Product Description

Electric Battery Steam Precision Industrial Drying Oven Heating Test Chamber

Electric Battery Steam 300C Precision Industrial Drying Oven Heating Test Chamber



Description of Industrial Drying Oven



Desktop Electrothermal Hot Air Circulating Drying Oven Industrial Laboratory Oven Drying ovens are used to remove moisture content from coatings and various substrates. The drying process occurs through a variety of laboratory applications including sterilization of materials and equipment, evaporation, temperature testing and incubating. And also can customizable drying ovens.



Advantage of Temperature Industrial Drying Oven



*High temperature ranges have stages: Ambient to +250 C; Ambient to +400 °C; Ambient to +900 ℃

*Adopt corrosion resistant 316 steel plate ratio

*CE mark, ISO17025 calibration





 Main Technical Parameter of Industrial Drying Oven
Model O-100 O-225 O-500 O-800 O-1000
Internal Dimension (mm) 400*500*500 500*600*750 700*800*900 800*1000*1000 1000*1000*1000
Overall Dimension (mm) 750*880*850 800*950*1000 1100*1100*1300 1100*1450*1400 1300*1400*1400
Parameter Temperature Range Ambient ~+400 ℃
Temperature Fluctuation ± 0.5 ℃
Temperature Deviation ± 2.0 ℃
Heating Rate 6 ℃ / min
Controller Programmable color LCD touch screen controller
Ethernet connection, PC Link
Temperature Sensor PTR Platinum Resistance PT100Ω/MV A-class, accuracy 0.001℃
View Window Size(mm) 120*150
Air Circulation Centrifugal wind fan
Safety Device

Over-temperature Protection; Over-current Protection;

Refrigerant High-pressure Protection; Earth leakage Protection

Material Exterior Material Steel Plate with protective coating
Interior Material SUS304 stainless steel
Thermal Insulation Polyurethane foam (Refractory brick)
Observation Window Interior lighting, double-layer thermo stability silicone rubber sealing
Standard Configuration 2 shelves
Power Supply 380V 50Hz
Maximum Noise 65 dBA
Environmental Conditional 5℃~+35 ℃ ≤85% RH





Structures of Industrial Drying Oven



Electric Battery Steam Precision Industrial Drying Oven Heating Test Chamber 0

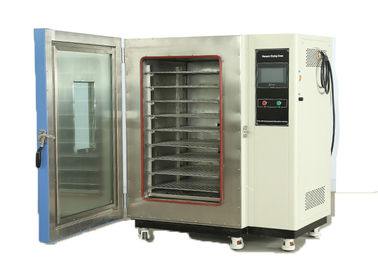

Work Room:

The internal material is 304 stainless steel, mirror surface, rust-proof to high and low temperature and moisture corrosion;
Nice ruggedness and long life.





 Electric Battery Steam Precision Industrial Drying Oven Heating Test Chamber 1

Sample Shelf



SUS316stainless steel punching sample shelf 2pcs;
Standard load of 50KGS for each layer of sample shelf;
The height of the shelf is adjustable and can be removed directly to facilitate the various sizes of test samples.
Conducive to the air circulation.



Special sample shelf can be customized



Electric Battery Steam Precision Industrial Drying Oven Heating Test Chamber 2

Air Circulation



The centrifugal fan is installed at the rear of the chamber body, and the air is uniformly distributed through the air outlet. Air circulation adopts air outlet at top and air return at bottom, and the wind speed and pressure are in compliance with the test standard, and the temperature is stabilized at the moment of switching. The high-quality centrifugal fan is used to strongly supply air circulation, making the temperature distribution in the test area uniform.







FAQ



Q: What are the payment methods?
-- Payment methods are T/T, Paypal, L/C, VISA, D/A, D/P,  Western Union, MoneyGram





Q: Can you ship quickly?
-- Our delivery period is 3-7 days. Some of the hot-selling equipments are in stock and can be shipped within 1-3 days.



Q: How long is the warranty period?
-- Warranty period is 3 years, free service for life.



Q: Is there a door to door service?
-- Yes, there is the door to door service. We will arrange a one-stop solution.



Q: What are the modes of transportation?
- Air, sea, rail, multimodal transport.



Q: Can I install and debug calibration on-site?
-- Yes, we can send technicians and engineers to the customer site for installation, commissioning and calibration.
