200 Degree 225 Liter Hot Air Circulating Oven Wire High Temperature Air Cycle Oven

200 Degree 225 Liter Hot Air Circulating Oven Wire High Temperature Air Cycle Oven

Product Details:

Place of Origin: China
Brand Name: LIB INDUSTRY
Certification: CE RoHS ISO17025 CSA
Model Number: O-225 Air Cycle Oven

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Packaging Details: Wooden cases standard export package
Delivery Time: 3-14 days ( check if have stock)
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,paypal
Supply Ability: 120sets / quarter
Get Best Price Contact Now

Detail Information

Application: Cable Environmental Testing Temperature Range: 100 ℃,100 ℃,300 ℃,500 ℃,800 ℃
Interior Volume: 100L/225L/500L Size: Standards And Customization
Warratny: 3 Years Warratny Name: Wire High Temperature Air Cycle Oven
High Light:

225 Liter Hot Air Circulating Oven

,

200 Degree Hot Air Circulating Oven

,

200c forced air circulation oven

Product Description

200 Degree 225 Liter Hot Air Circulating Oven Wire High Temperature Air Cycle Oven

Product Description


ASTM D 5423-93 100℃ Cable air oven aging test chamber is suitable for high polymer materials (plastic, plastic) and electrical insulation materials such as: wire and cable sheath, heat shrinkable sleeve, rubber test piece or PVC material and other insulation components of the heat resistance test.



Products Parameters

Name   200 Degree Air Circulation Wire High Temperature Air Cycle Oven
Model  O-100 O-225 O-500
Internal dimensions (mm) 400*500*500 500*600*750 700*800*900
Overall dimensions (mm) 750*880*850 800*950*1000 1100*1100*1300
Temperature range Ambient ~+250 ℃; ( Ambient ~+400 ℃; Ambient ~+900 ℃)
Temperature fluctuations ± 0.5 ℃
Temperature deviation ± 2.0 ℃
Heating rate

About 6 ℃ / min

Controller Programmable color display touch screen
Temperature Sensor PTR Platinum Resistance PT100
Heating system Independent Nichrome electronic heating element
Exterior material Steel Plate with Protective coating
Interior material SUS304 stainless steel
Timing Function 0.1~999.9 (S,M,H) settable



Advantage

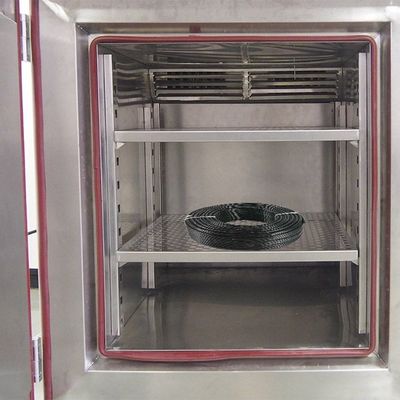

200 Degree 225 Liter Hot Air Circulating Oven Wire High Temperature Air Cycle Oven 0

Comply with the standard for air circulation



1.ASTM D 5423-9 standard for wire test aging oven



2.Natural ventilation system to ensure temperature uniformity.



3.Air circulation, the left and right into the return air to ensure uniformity of temperature,



4.Adjustable range of ventilation volume: 100-200 times / hour.



LIB INDUSTRY Air convection industrial oven for wire high temperature applications.

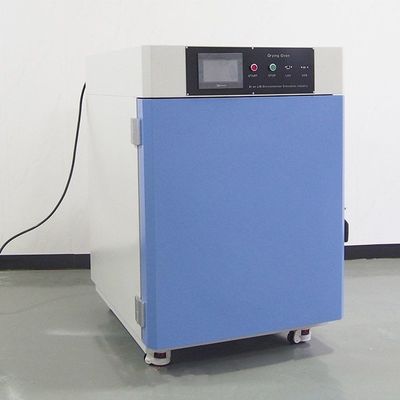

200 Degree 225 Liter Hot Air Circulating Oven Wire High Temperature Air Cycle Oven 1



More Details

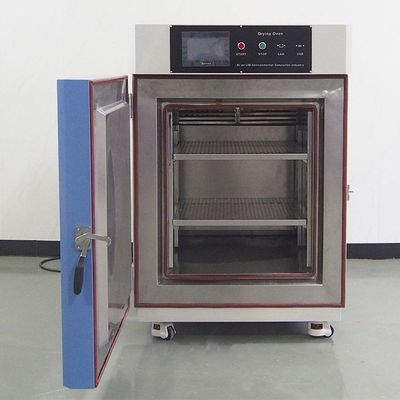

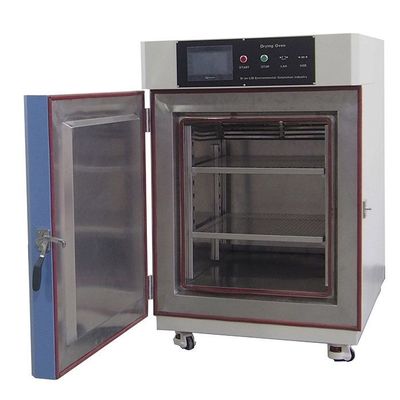

              200 Degree 225 Liter Hot Air Circulating Oven Wire High Temperature Air Cycle Oven 2             200 Degree 225 Liter Hot Air Circulating Oven Wire High Temperature Air Cycle Oven 3

Precision temperature controller provides accurate, stable conditions of constant temperature

Cable Heating aging drying oven,The air circulation system ,Meet the air circulation requirements in the standard



FAQ


1. Are you manufacturer?

we are manufacturer,We are a professional manufacturer of environmental test chamber



2.Do you offer after-sales service?

Every machine from our factory has 36 month warranty after shipment,LIB INDUSTRY support overseas installation services



3. Do you have agent or service office in my country?

Yes,We have agents and service centers in Asia, Europe, America and the Middle East
