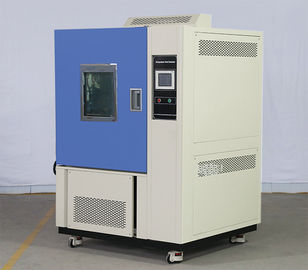

Calibration Climatic Temperature Humidity Test Chamber 1000W Heat Load
|Place of Origin:||China|
Payment & Shipping Terms:
|Minimum Order Quantity:||1 Set|
|Packaging Details:||Wooden Cases Standard Export Package|
|Delivery Time:||5-14 Days|
|Payment Terms:||L/C, D/A, D/P, T/T, Western Union, MoneyGram,Paypal|
|Heat Load:||1000W||Temperature Range:||A : -20℃ ～ +150 ℃ B : -40℃ ～ +150 ℃ C: -70℃ ～ +150 ℃|
|Cooling Rate:||1 ℃ / Min||Heating Rate:||3 ℃ / Min|
|Power Supply:||220V 50Hz / 380V 50Hz||Maximum Noise:||65 DBA|
temperature and humidity test chamber,
temp humidity chamber
Calibration Climatic Chamber Cold Temperature Aging Test Chamber Laboratory
►Introduction for Calibration Climatic Chamber Cold Temperature Aging Test Chamber Laboratory
39+ models floor type temperature humidity test chambers to suit many types of environmental test conditions. Our climate and humidity test chambers are available in a variety of sizes and configurations, ranging in size from 50Ltier to 3000Liter, including benchtops, floor type and walk-in. Floor types have more than 39 models to achieve various tests.
To perform temperature & humidity test, cold resistance test, thermal cycle test, ultra low temperature test, high temperature test, storage condition, and calibration function.
Standard and custom models to suit different test specimens.
►Application for Calibration Climatic Chamber Cold Temperature Aging Test Chamber Laboratory
Calibration Climatic Chamber Cold Temperature Aging Test Chamber Laboratory is also called environment testing machine, used to test various types of materials for their tolerances of heat, cold, dry, humidity. It is applied for quality inspection for all types of electronic products, electric appliance, and products from communication, instrument, automobile, plastic, metal, food, chemical, building materials, medical and aerospace industries.
►Advantages for Calibration Climatic Chamber Cold Temperature Aging Test Chamber Laboratory
1. Wide temperature/humidity ranges and volume selection
2. Temperature control and display unit
3. PID programmable color touch screen controller, network connection computer Multi-language interfaceUSB and Ethernet
4. A standard test hole, located at the left side of the work room
5. Water re-circulation system that reduced water use and a series of water pipes
6. Mechanical compression refrigeration system
7. Low temperature can cool down to -70℃
8. Long time to perform 85℃ 85%RH test
9. The Refrigerant can be replaced by R449A/R508B
10. CE mark
►Main Parameter for Calibration Climatic Chamber Cold Temperature Aging Test Chamber Laboratory
|Name||Calibration Climatic Temperature Aging Test Chamber Laboratory|
|Internal Dimension (mm)||400*500*500||500*600*750||700*800*900|
|Overall Dimension (mm)||860*1050*1620||960*1150*1860||1180*1350*2010|
A : -20℃ ～ +150 ℃ B : -40℃ ～ +150 ℃ C: -70℃ ～ +150 ℃
|Temperature Fluctuation||± 0.5 ℃|
|Temperature Deviation||± 2.0 ℃|
|Cooling Rate||1 ℃ / min|
|Heating Rate||3 ℃ / min|
|Heating Element||Nichrome heater|
|Controller||Programmable color LCD touch screen controller|
|Ethernet connection, PC Link|
|Temperature Sensor||PTR Platinum Resistance PT100Ω/MV A-class, accuracy 0.001℃|
|Air Circulation||Centrifugal wind fan|
Over-temperature Protection; Over-current Protection;
Refrigerant High-Pressure Protection; Earth leakage Protection
|Exterior Material||Steel Plate with protective coating|
|Thermal Insulation||Polyurethane foam and insulation cotton|
|Observation Window||Interior lighting, double-layer thermo stability silicone rubber sealing|
|Standard Confighration||1 Cable hole (Φ 50,) with plug; 2 shelves|
|Power Supply||220V 50Hz / 380V 50Hz|
|Maximum Noise||65 dBA|
|Environmental Conditional||5℃～+35 ℃ ≤85% RH|

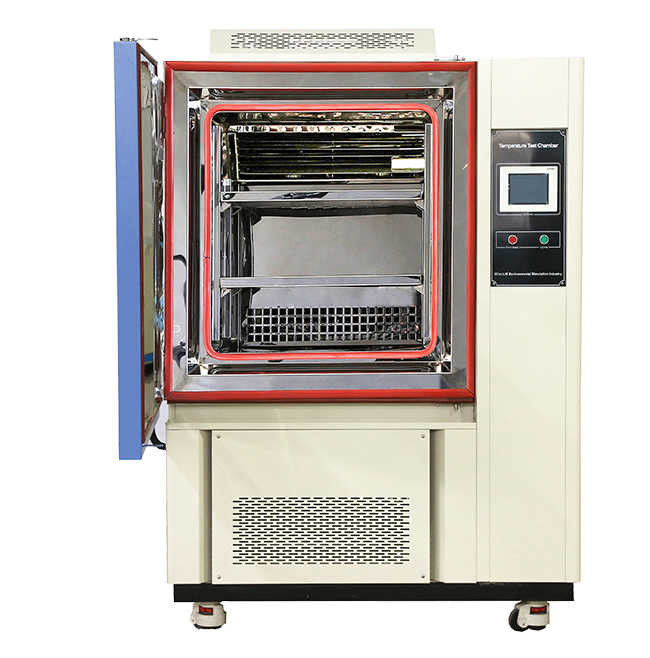

►Main Details for Calibration Climatic Chamber Cold Temperature Aging Test Chamber Laboratory
A standard test hole, located at the left side of the work room, is provided with a sleeve inside to prevent moisture from entering the insulation layer. Equipped with flange.
The standard inner hole diameter is 50mm.
Soft silicone plug seal; Metal enclosure closed, beautiful designed.
2.Temperature and Humiditty Sensor
PT-100 Class A sensor, real-time accurate detection and display of temperature changes at 0.001 degrees.
The internal material is 304 stainless steel, mirror surface, rust-proof to high and low temperature and moisture corrosion;
Nice ruggedness and long life.
PID programmable color touch screen controller, network connection computer.
Can edit 100 programs 100 segment.
LIB also can preset program into the controller based on user testing requirements.
The set system language is English for standard.
