220V 50Hz SUS304 Temperature Humidity Controlled Chamber

220V 50Hz SUS304 Temperature Humidity Controlled Chamber

Product Details:

Place of Origin: China
Brand Name: LIB
Certification: CE,ROHS
Model Number: TH-100

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Packaging Details: Wooden Cases Standard Export Package
Delivery Time: 3-14 Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,PayPal
Supply Ability: 120 Sets/Quarterly
Get Best Price Contact Now

Detail Information

Name: Temperature Humidity Controlled Chamber Temperature Range: -20°C~+150°C
Humidity Range: 20%~98% Heating Rate: 3 ℃ / Min
Low Type: -20°C / -40℃ / -70℃ Power Supply: 220V 50Hz ( 380V 50Hz)
High Light:

SUS304 Humidity Controlled Chamber

,

100L Temperature Humidity Controlled Chamber

,

220V 50Hz Temperature Humidity Chamber

Product Description

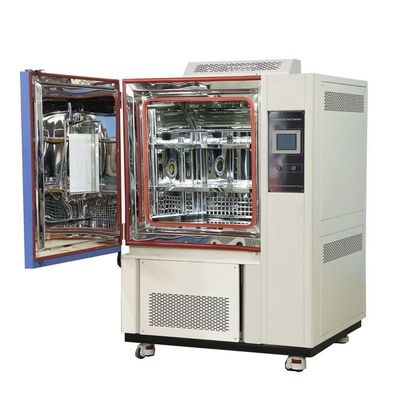

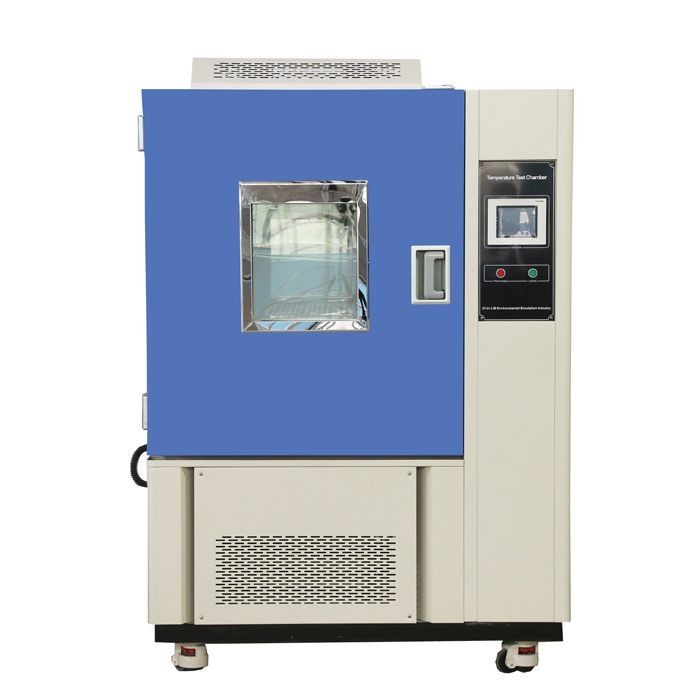

220V 50Hz SUS304 Temperature Humidity Controlled Chamber

Temperature Humidity Controlled Chamber



The humidity test chamber is also called a climate chamber, which can simulate various temperature and humidity environments to test the performance and reliability of industrial products, materials, and electronic equipment.



The temperature and humidity test chamber is widely used in electrical appliances, military industry, plastics, hardware, chemical industries and other industries, such as electronic parts, auto parts, laptop, and the other products





Specific parameters



Product Name

Temperature Humidity Controlled Chamber

Model TH-100 TH-225 TH-500 TH-800 1000L
Internal Dimension (mm) 400*500*500 500*600*750 700*800*900 800*1000*1000 1000*1000*1000
Interior Volume 100L 225L 500L 800L 1000L
Temperature Range

A : -20℃ ~ +150 ℃

B : -40℃ ~ +150 ℃

C: -70℃ ~ +150 ℃

Temperature Fluctuation ± 0.5 ℃
Temperature Deviation ± 2.0 ℃
Humidity Range

20% ~ 98% RH

Humidity Deviation ± 2.5% RH
Cooling Rate 1 ℃ / min
Heating Rate 3 ℃ / min
Safety Device

Humidifier dry-combustion protection; over-temperature protection; over-current protection;

Refrigerant high-pressure protection; Water shortage protection; Earth leakage protection

Exterior Material Steel Plate with protective coating
Interior Material SUS304 stainless steel
Observation Window Interior lighting, double-layer thermo stability silicone rubber sealing
Environmental Conditional 5℃~+35 ℃ ≤85% RH





Main Detail of Temperature Humidity Chamber



220V 50Hz SUS304 Temperature Humidity Controlled Chamber 0



Controller

1, TEMI880 brand PID programmable color touch  screen controller, RS232 interface

2, Within 120 programs Each has 999 steps.

3, LIB can also set the program to the controller in advance according to the user's test requirements

4, Multi-language display (small languages Russian, Chinese, French.... All domestic controllers)

Cable Hole

1, A cable hole is provided as standard, located on the left side of the studio, with a sleeve inside to prevent moisture from entering the insulating layer. Equipped with a flange;

2, The standard inner hole diameter is 50 or 125mm;

3, Soft silicone plug for sealing;



220V 50Hz SUS304 Temperature Humidity Controlled Chamber 1

Sensor

1, Standard temperature Sensor: PT-100 class A, with an accuracy of 0.001, installed in the upper right corner of the studio;

2, More temperature sensor options

3, It is recommended to install Westerla for capacitive type

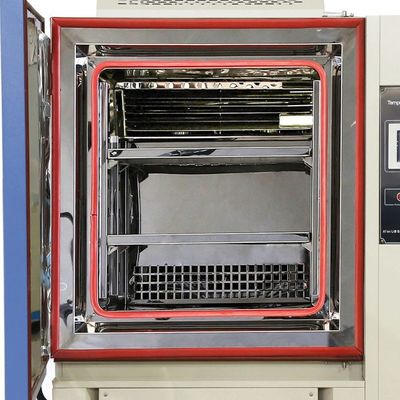

Internal material:

1,3mm mirror SUS304 stainless steel;

2, Waterproof, anti-rust, high and low temperature corrosion resistance;

3, Good sturdiness, long life, beautiful appearance;

4, Condensation can drip smoothly;





Feature Of Temperature Controlled Chamber

1, The range of temperature and humidity can be customized according to customer requirements.

2, Built-in the water circulation system

3, TEMI880 brand PID programmable color touch screen controller, RS232 interface

4, A total of 4 movable casters, detachable; the height of the casters is adjustable;

5, Standard temperature Sensor: PT-100 class A, with an accuracy of 0.001, installed in the upper right corner of the studio;

6, Adopt TECUMSEH compressor imported from France;

7, Built-in DuPont brand environmentally friendly refrigerants R404A and R23;

8, The water tank is made of stainless steel SUS304, and high and low water level floats are installed to display the actual water level and automatic water inlet device;



Service

In order to guarantee user to better use our test chambers,We provide the following services

1.  3 Years Warranty

2.  Lifelong Follow-up Services.

3.  Supply solutions to you with 24 hours.

4.  Local agents and service centers

5.  Pre-sale consultation
