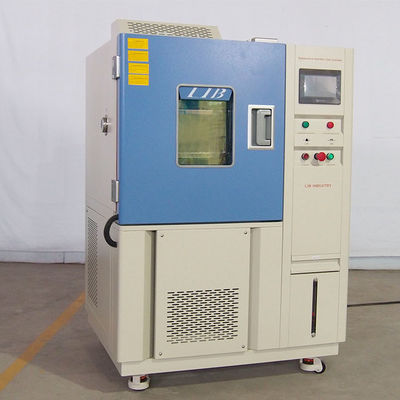

Climate 65 ℃ 93% Relative Humidity Chamber Battery Heat Temperature
|Place of Origin:||China|
Payment & Shipping Terms:
|Minimum Order Quantity:||1 Set|
|Packaging Details:||Wooden Cases Standard Export Package|
|Delivery Time:||5-14 Days|
|Payment Terms:||L/C, D/A, D/P, T/T, Western Union, MoneyGram,Paypal|
|Humidity Range:||10%~98%||Product Name:||Temperature Relative Humidity Chamber|
|Low Temperature Range:||-40℃/-70℃/-85℃||Cooling Rate:||1 ℃ / Min|
93% Relative Humidity Chamber,
65C Relative Humidity Chamber,
65C 93% temperature humidity chamber
Demand is growing for external short-circuit tests, nail penetration tests and other types of safety tests to ensure the high safety and stable performance needed by vehicle secondary batteries.
LIB INDUSTRY Climate 65 ℃ 93% Battery Heat Temperature Relative Humidity Chamber with safety equipment was designed to meet this demand,with easy access to the specimen and comes with accident safety functions. With its temperature uniformity in the test area and high accuracy control during long continuous operation,Battery test equipment is the ideal tester for battery&new energy testing.
|Name||Climate 65 ℃ 93% Battery Heat Temperature Relative Humidity Chamber|
|Internal Dimension (mm)||400*500*500||500*600*750|
|Overall Dimension (mm)||860*1050*1620||960*1150*1860|
A : -20℃ ～ +150 ℃
B : -40℃ ～ +150 ℃
C: -70℃ ～ +150 ℃
|Temperature Fluctuation||± 0.5 ℃|
|Temperature Deviation||± 2.0 ℃|
|Humidity Range||20% ~ 98% RH|
|Humidity Deviation||± 2.5% RH|
|Cooling Rate||1 ℃ / min|
|Heating Rate||3 ℃ / min|
|Cooling system||Mechanical compression refrigeration system|
|Refrigerating unit||French TECUMSEH compressor|
|Heating Element||Nichrome heater|
|Controller||Programmable color LCD touch screen controller|
|Ethernet connection, PC Link|
|LIB low and high temperature environment chambercan meet the battery test of different sizes and different test standards|
Climate 65 ℃ 93% Battery Heat Temperature Relative Humidity Chamber
1.Color LCD touch panel
2.Balanced Temperature,Humidity Control system and PID control function.
3.Interface for device communication can be selected between RS-485, GPIB,Web Lan and RS-232C.
4.Multilingual display,English,Russian, Romanian, French.
5.USB output of trend graph data.
6.Cable ports on both sides (θ50) as standard to allow easy wiring access
Uniform Temperature Distribution
Climate 65 ℃ 93% Battery Heat Temperature Relative Humidity Chamber,Capacity of vertical airflow from the top is increased so that the air reaches every corner of the test area,realizing more uniform temperature distribution in the test area.
