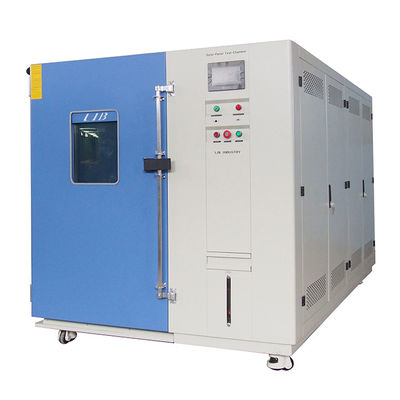

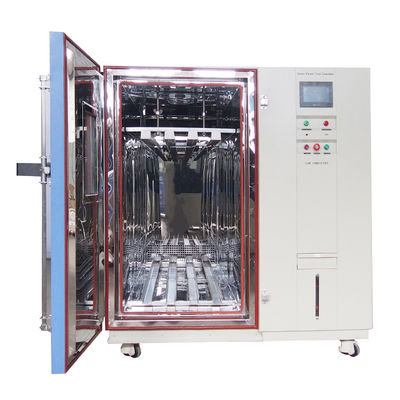

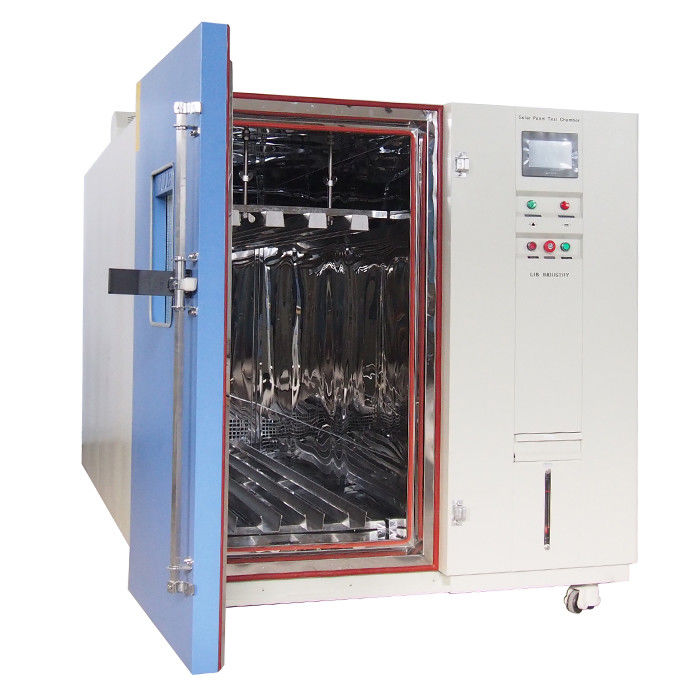

IEC62688 100℃/H PV Climate Control Chamber High Temperature
Product Details:
| Place of Origin: | China |
| Brand Name: | LIB |
| Certification: | CE,ROHS |
| Model Number: | PV-04 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Packaging Details: | Wooden Cases Standard Export Package |
| Delivery Time: | 5-14 Days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram,Paypal |
| Supply Ability: | 210 Sets/quarter |
|
Detail Information |
|||
| Application: | PV Panel | Panel Capacity: | 4 / 6 / 8 / 10 / 12 Pieces |
|---|---|---|---|
| Standard: | IEC61215, IEC61646, IEC61108, IEC62688, UL1703, IEC61345 | Temperature Range: | -70 Degree ~ +100(150) Degree |
| Temperature Range: | -60℃ ～ +100 ℃ | Temperature Change Rate: | 1 ~ 3.4℃ / Min |
| High Light: | PV Climate Control Chamber,100C/H Climate Control Chamber,IEC62688 constant climate chamber |
||
Product Description
Description
IEC62688 100℃/h PV High Temperature Climate Chamber,During their lifetime, solar and photovoltaic modules are subjected to a large number of environmental factors. Amongst others, test to IEC 61215 and IEC 61646 standards can be performed in our solar chambers. We have cabinets or chambers available to suit the size of your modules.
Technical Specification
| Name | IEC62688 100℃/h PV High Temperature Climate Chamber |
| Model | PV-04 |
|
Internal Dimension (mm) |
1300*700*1350 |
|
Overall Dimension (mm) |
1900*1100*1750 |
|
Interior Volume |
1220L |
|
Temperature Range |
-60℃ ～ +100 ℃ |
|
Temperature Fluctuation |
± 0.5 ℃ |
|
Temperature Deviation |
± 2.0 ℃ |
|
Humidity Range |
20% ~ 98% RH |
|
Humidity Deviation |
± 2.5% RH |
|
Temperature Change Rate |
1 ~ 3.4℃ / Min |
|
Panel Size |
1M*2M |
|
Panel Capacity |
4 / 6 / 8 / 10 / 12 Pieces |
|
Cooling system |
Mechanical compression refrigeration system |
|
Refrigerating unit |
French TECUMSEH compressor |
|
Refrigerant |
R404A, R23 |
|
Heating Element |
Nichrome heater |
|
Controller |
Programmable color LCD touch screen controller,Ethernet connection, PC Link, USB |
|
Exterior Material |
Steel Plate with protective coating |
|
Interior Material |
SUS304 Stainless steel |
|
Thermal Insulation |
Polyurethane foam and insulation cotton |
|
Maximum Noise |
65 dBA |
|
Environmental Conditional |
5℃～+35 ℃ ≤85% RH |
|
Standard |
IEC61215, IEC61646, IEC61108, IEC62688, UL1703, IEC61345 |
 |
Applications Solar photovoltaic test chamber for solar panels performance test.
|
Test Description
IEC62688 100℃/h PV High Temperature Climate Chamber
● Ramp down from 25 to +/-40 deg C at 100 deg C / h max.
● Soak for a min of 10 minutes.
● Ramp up to 85 deg C at 100 deg C / h or less.
● Soak for min 10 minutes.
● Return to ambient 25 deg C – Total cycle 6 hours
Test Space Capacity in Liters
PV humidity freeze test machine
•Customized according to PV panel size
Temperature range:
• -70 °C / +180 °C or
• +10 °C / +90 °C
Humidity range:
• 10 - 95 % RH
Standards:
• IEC 61215, IEC 61646
