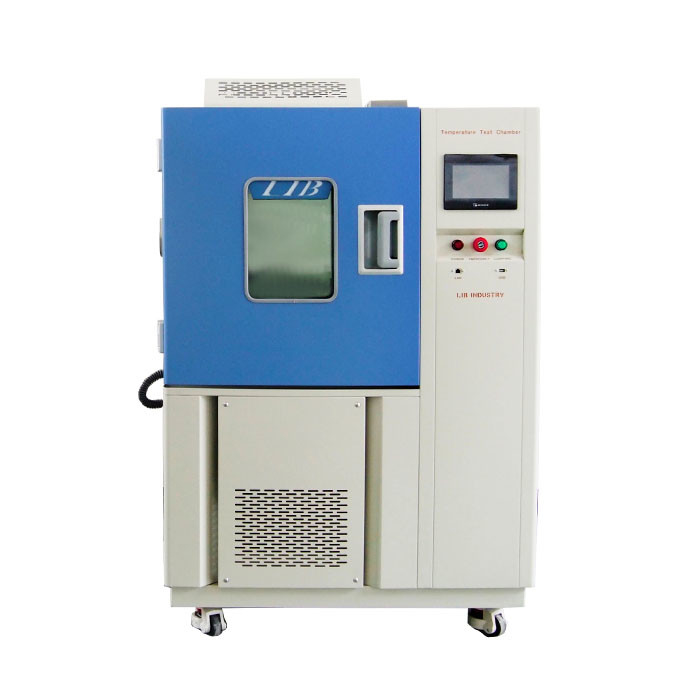

Fast Change Temperature Shock Test Chamber IEC 60068

Fast Change Temperature Shock Test Chamber IEC 60068

Product Details:

Place of Origin: China
Brand Name: LIB
Certification: CE,ROHS
Model Number: TK10-220

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Packaging Details: Wooden Cases Standard Export Package
Delivery Time: 5-14 Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,Paypal
Supply Ability: 210Sets/quarter
Get Best Price Contact Now

Detail Information

Name: Tmperature Shock Test Chamber Humidity Range: 10%~98%
Temperature Range: -70℃ ~+150 ℃ Product Name: Thermal Cycling Environmental Chamber
Heating Rate: 10℃/min (15℃/min) Cooling Rate: 10℃/min (15℃/min)
High Light:

Fast Change Temperature Shock Test Chamber


Temperature Shock Test Chamber IEC 60068


IEC 60068 thermal shock chamber

Product Description


LIB INDUSTRY uses the international standard IEC 60068 3-5 measured at the supply air. Temperature cycles are run from hot to cold extremes, and the middle 80% of the transition is timed to determine performance. Your actual cycling results will vary depending on methodology, including the start and end temperatures, and the amount of samples loaded.(Fast change rates testing chamber)


Tmperature shock test chamber is suitable for testing the changes of instruments,electrical,electronic products,machine and parts under the rapid temperature change or the the gradient conditions, takes advantage of compact, modern scroll compressors to bring fast temperature cycling to small form factor. Temperature cycling rates from 5 to 15°C/min.


Technical Specification

Name Fast Change Tmperature Shock Test Chamber
Model TK10-220
Internal Dimension (mm) 500*600*750
Overall Dimension (mm) 960*1150*1860
Temperature Range (℃) -70℃ ~+150 ℃
Cooling Rate 10℃/min (15℃/min)
Heating rate 10℃/min (15℃/min)
Temperature Fluctuations ± 0.5 ℃
Temperature Deviation ± 2.0 ℃
Interior Volume 220 liters
Controller Programmable color LCD touch screen controller, Multi-language interface, Ethernet , USB
Cooling System Mechanical compression refrigeration system
Exterior Material Steel Plate with protective coating
Interior Material SUS304 stainless steel
Power Supply 380V
Maximum Noise 65 dBA


Communication interface

Fast Change Temperature Shock Test Chamber IEC 60068 0

Tmperature test chamber equipped with standard communication interface devices USB,RS-232 and RS-485,enable the test chamber to be connected with personal computer(PC),to achieve multi-machine control and management at the same time.

Standard: USB external memory port.Optional: RS-232, RS-485, GP-IB, Ethernet


Standard configurations
IEC 60068 Fast changechamber
1 Window
1 Lamp,
4 Casters
1 Power cable

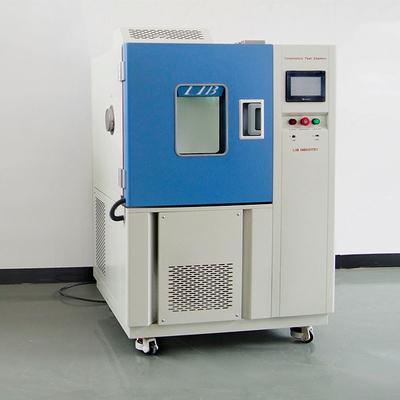

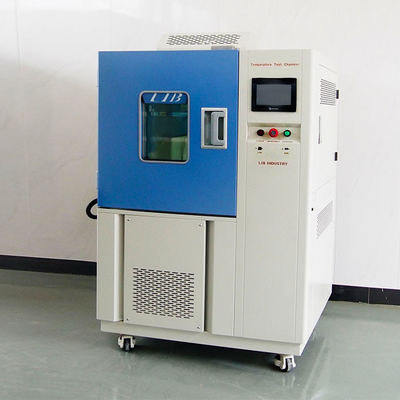

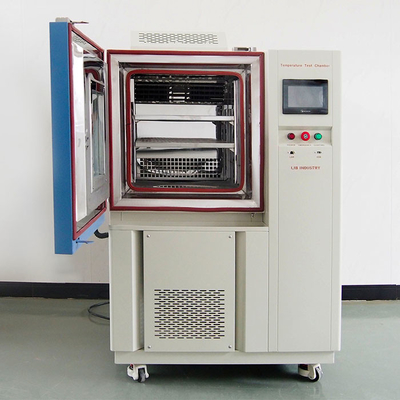

Fast Change Temperature Shock Test Chamber IEC 60068 1 Fast Change Temperature Shock Test Chamber IEC 60068 2
