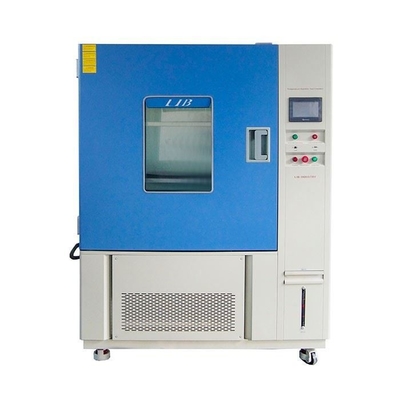

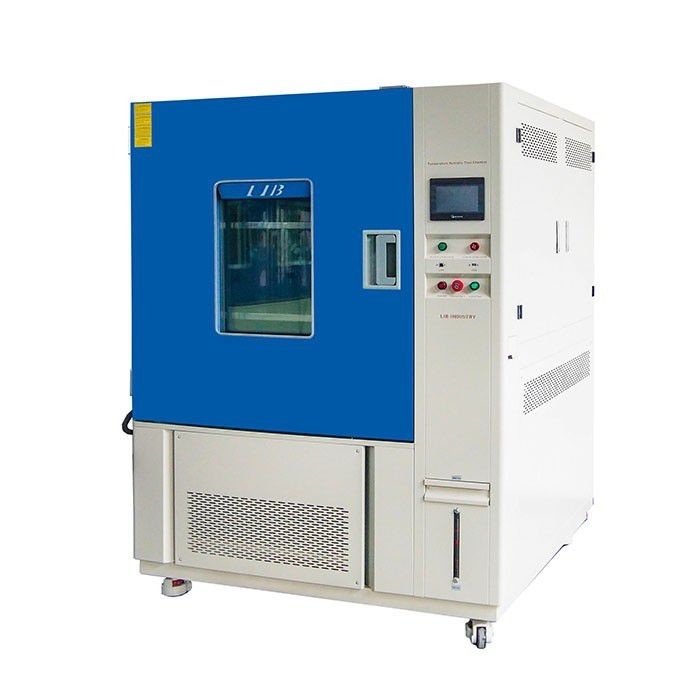

98% RH 800L Climate High Temperature Test Chamber Quick Test

98% RH 800L Climate High Temperature Test Chamber Quick Test

Product Details:

Place of Origin: China
Brand Name: LIB INDUSTRY
Certification: CE,ROHS
Model Number: TH-500

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Packaging Details: Wooden Cases Standard Export Package
Delivery Time: 3-14 Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,PayPal
Supply Ability: 120 Sets/Quarterly
Get Best Price Contact Now

Detail Information

Name: Climate High Temperature Chamber Low Type: -20°C / -40℃ / -70℃
Humidity Range: 20%~98% Temperature Range: -20°C~+150°C
Heating Rate: 3 ℃ / Min Power Supply: 220V 50Hz ( 380V 50Hz)
High Light:

98% RH High Temperature Test Chamber

,

800L High Temperature Test Chamber

,

800L Climate Test Chamber

Product Description

Description


98% RH 800L Climate High Temperature Chamber has conditioning system that be able to offer quick and constant conditions from 5% to 98% R.H. +/- 0.5% and-70°C to 150°C +/-0.5°C, is widely used for the resistance test to heat, cold, dry, and humidity etc, and used for the conditioning of many kinds of samples prior to testing.


Capacity (L):80L, 120L, 150L, 225L, 408L, 800L, 1000L

Temperature Range:0°C~150°C/ -20 °C ~ 150 °C/-40 °C ~ 150 °C/-60 °C ~ 150 °C/-70 °C ~ 150 °C.



Specific Parameters




Product Name

98% RH 800L Climate High Temperature Chamber

Model TH-100 TH-225 TH-500 TH-800 1000L
Internal Dimension (mm) 400*500*500 500*600*750 700*800*900 800*1000*1000 1000*1000*1000
Interior Volume 100L 225L 500L 800L 1000L
Temperature Range

A : -20℃ ~ +150 ℃

B : -40℃ ~ +150 ℃

C: -70℃ ~ +150 ℃

Temperature Fluctuation ± 0.5 ℃
Temperature Deviation ± 2.0 ℃
Humidity Range

20% ~ 98% RH

Humidity Deviation ± 2.5% RH
Cooling Rate 1 ℃ / min
Heating Rate 3 ℃ / min
Exterior Material Steel Plate with protective coating
Interior Material SUS304 stainless steel
Observation Window Interior lighting, double-layer thermo stability silicone rubber sealing
Environmental Conditional 5℃~+35 ℃ ≤85% RH





Details


98% RH 800L Climate High Temperature Test Chamber Quick Test 0 98% RH 800L Climate High Temperature Test Chamber Quick Test 1



Test Hole

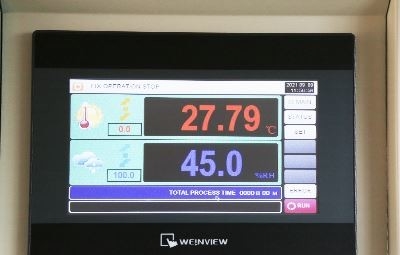

Programmable Controller



Features


98% RH 800L Climate High Temperature Chamber

1.Perfect appearance and easy to operate.

2.Programmable temperature controller, with high memory capacity, can save 100 programs, max 9999 cycles, each cycle max time 999hrs.

3.Perfect protection alarm functions: short-circuits, Leakage, over temperature of work chamber; compressor over pressure, over load, short water…

4.With RS-232communication port for connecting PC to control, record and save test report.



Usage


98% RH 800L Climate High Temperature Chamber is widely used in metal, plastic, rubber, electronics and other materials and it can be used as an important reference for improving product quality. It meets the standard of MTL, IEC, JIS, GJB…



After Sale Service


Climate High Temperature Chamber

◆3 year warranty service and all life maintenance.

◆Technical Egineer are avalible for oversea trainning.

◆Remote control technical consult
