150 ℃ High Temperature Constant Humidity Chamber Thermal Endurance
Product Details:
| Place of Origin: | China |
| Brand Name: | LIB INDUSTRY |
| Certification: | CE，ROHS |
| Model Number: | TH-250 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Packaging Details: | Wooden Cases Standard Export Package |
| Delivery Time: | 3-14 Days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram，PayPal |
| Supply Ability: | 120 Sets/Quarterly |
|
Detail Information |
|||
| Name: | Constant Humidity Chamber | Humidity Range: | 20%~98% |
|---|---|---|---|
| Low Type: | -20°C / -40℃ / -70℃ | Temperature Range: | -20°C~+150°C |
| Heating Rate: | 3 ℃ / Min | Power Supply: | 220V 50Hz （ 380V 50Hz） |
| High Light: | High Temperature Constant Humidity Chamber,150C Constant Humidity Chamber,150C constant temperature humidity chamber |
||
Product Description
Description

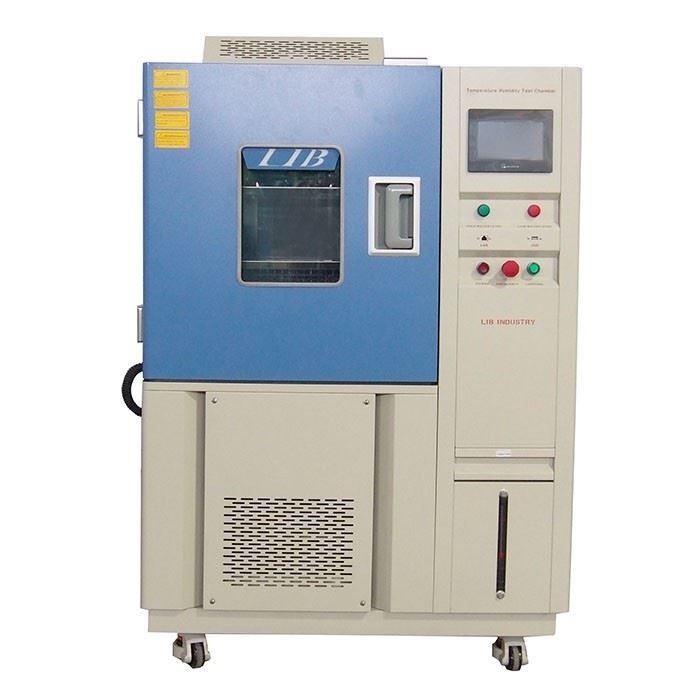

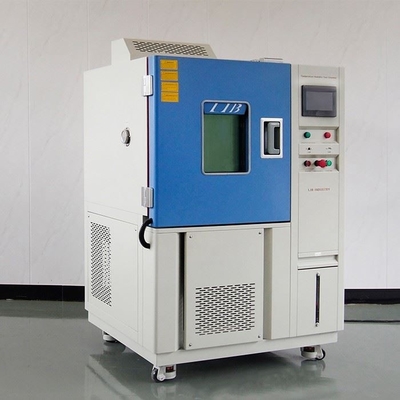

150 ℃ High Temperature Constant Humidity Chamber simulates a full range of temperature and humidity conditions to test reliability, durability, climatic, freezing resistance, quality assurance, thermal endurance etc.
Specific Parameters
| Product Name |
150 ℃ High Temperature Constant Humidity Chamber |
|||||||||
| Model | TH-100 | TH-225 | TH-500 | TH-800 | 1000L | |||||
| Internal Dimension (mm) | 400*500*500 | 500*600*750 | 700*800*900 | 800*1000*1000 | 1000*1000*1000 | |||||
| Interior Volume | 100L | 225L | 500L | 800L | 1000L | |||||
| Temperature Range |
A : -20℃ ～ +150 ℃ B : -40℃ ～ +150 ℃ C: -70℃ ～ +150 ℃ |
|||||||||
| Temperature Fluctuation | ± 0.5 ℃ | |||||||||
| Temperature Deviation | ± 2.0 ℃ | |||||||||
| Humidity Range |
20% ~ 98% RH |
|||||||||
| Humidity Deviation | ± 2.5% RH | |||||||||
| Cooling Rate | 1 ℃ / min | |||||||||
| Heating Rate | 3 ℃ / min | |||||||||
| Exterior Material | Steel Plate with protective coating | |||||||||
| Interior Material | SUS304 stainless steel | |||||||||
| Observation Window | Interior lighting, double-layer thermo stability silicone rubber sealing | |||||||||
| Environmental Conditional | 5℃～+35 ℃ ≤85% RH | |||||||||
Details
 |
|
|
Programmable Controller
|

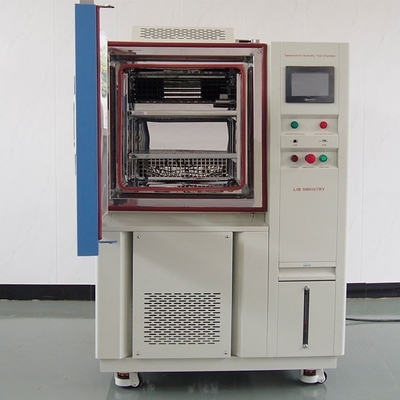

Test Area |
Application
High Precision Controlled Cold Heat Temperature Humidity Aging Test Equipment is designed for testing the capability of heat-endurance, cold-endurance, dryness-endurance, and humidity-endurance, suitable for quality control of the industries of electron, electrical equipment, vehicle, metal, foodstuffs, chemistry, building materials, luggage, adhesion tape, printing, packaging, etc..
Product Highlights
Constant Humidity Chamber
●Easy Operation
Programmable color display touch screen controller.
Flexible approach for data collection and recording(RS-232 /RS-485 interface, PC Link, LAN,network,USB,Mobile APP)
●Free of Charge
2 pieces of adjustable and removable shelves
Video tutorial,testing software,etc.
●After-sales Service
Temperature Chamber offer 3 Years Warranty,Lifelong Follow-up Services,engineers on site service,Until the problem is solved
