Product Details:

Place of Origin: China
Brand Name: LIB
Certification: CE,ROHS,ISO17025
Model Number: UV-SI-260

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Packaging Details: Wooden Cases Standard Export Package
Delivery Time: 5-14 Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,Paypal
Supply Ability: 410Sets
Get Best Price Contact Now

Detail Information

UV Lamp: UVA 340,UVB 313 BPT: 35℃~80℃
Irradiance Control: 0.3~20 W/㎡ Irradiation Source: Fluorescent UV Lamps (8) - 40 W
Bandwidth: 290 ~ 400nm Name: UV Weathering Test Chamber
High Light:

Programmable UV Weathering Test Chamber

,

ASTM G154 UV Weathering Test Chamber

,

ASTM D4329 uv aging test chamber

Product Description

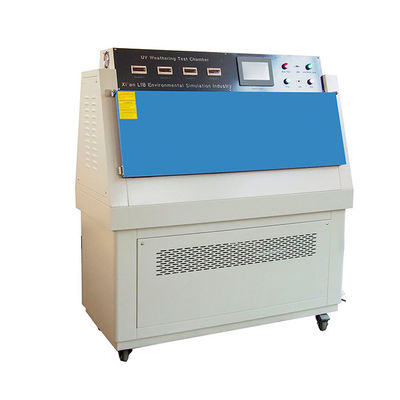

Programmable UV Weathering Test Chamber ASTM G154 ASTM D4329

UV Test Chamber

Description


LIB INDUSTRY UV test chamber simulate the sun, rain spray and condensation resulting damage to test the materials by exposure to sunlight with moisture and temperature.

Technical Specification

Name

UV Test Chamber

Model

UV-260

UV-SI-260

Internal Dimension (mm)

452*1170*500

450*1170*500

Overall Dimension (mm)

680*1300*1500

680*1300*1500

Specimen Holder Size(mm)

75*150

Controller

Programmable color LCD touch screen controller
Ethernet connection, PC Link,USB

Temperature Range

Ambient ~ 90 ℃ ±2℃

Black Panel Temperature (BPT)

35 ~ 80 ℃

Bandwidth

290 ~ 400nm

Irradiance Control

N/A

0.3~20 W/㎡(340nm/313nm)

Standard

ISO4892-1,ISO4892-3, ASTM G154, ASTM D4329, ASTM D458, ASTM C125, ASTM C1442, ASTM C1519, ASTM C793, ASTM D1148, ASTM D3424, ASTM D3451, ASTM D410, ASTM D481, ASTM D657, ASTM D6662, ASTM D750, ASTM D904, GM 9125P, ISO 29664

Water Spray Cycle

1~9999H59M (Adjustable)

Distance of Specimen and lamp

50mm

Power Supply

380V 50Hz

Maximum Noise

65 dBA


Design Details


Programmable UV Weathering Test Chamber ASTM G154 ASTM D4329 0Programmable UV Weathering Test Chamber ASTM G154 ASTM D4329 1
Black Panel(BPT)2D or 3D Custom sample shelf


Characteristic


LIB UV resistant test chamber
LIB use QUV lamp, easy to replace, easy to buy
Provides high amounts of UV exposure to the test samples
Correlates to traditional test methods
UV aging test chamber execute programmable cycles
Spray, dew, temperature, humidity

Standards


●ASTM G154
ASTM G154 UV test chamber,Standard Practice for Operating Fluorescent Light Apparatus for UV Exposure of Nonmetallic Materials
●DIN EN 12224
Geotextiles and geotextile-related products - Determination of the resistance to weathering
●DIN EN 1297
Flexible sheets for waterproofing - Bitumen, plastic, and rubber sheets for roofing - Method of artificial ageing by long term exposure to the combination of UV-radiation, elevated temperature and water
●DIN EN 13523-10
Coil coated metals - Test methods - Part 10: Resistance to fluorescent UV light and water condensation

Programmable UV Weathering Test Chamber ASTM G154 ASTM D4329 2
