290~400mm 40W UV Aging Chamber Aging Weathering Apparatus

290~400mm 40W UV Aging Chamber Aging Weathering Apparatus

Product Details:

Place of Origin: China
Brand Name: LIB
Certification: CE,ROHS,ISO-17025
Model Number: UV-SI-260

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Packaging Details: Wooden Cases Standard Export Package
Delivery Time: 5-14 Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,Paypal
Supply Ability: 410Sets
Get Best Price Contact Now

Detail Information

Bandwidth: 290~400mm Irradiance Control: 0.3~20 W/㎡
Distance Of Specimen And Lamp: 50mm Maximum Noise: 65 DBA
Irradiation Source: Fluorescent UV Lamps (8) - 40 W Name: UV Aging Weathering Apparatus
High Light:

40W UV Aging Chamber

,

400mm UV Aging Chamber

,

400mm uv weathering test chamber

Product Description

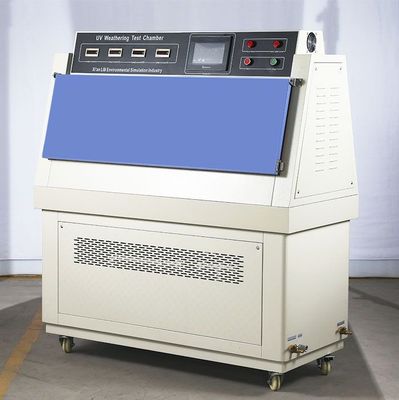

290~400mm 40W UV Aging Chamber Aging Weathering Apparatus

Description of UV Aging Weathering Apparatus

UV aging weathering apparatus adopts fluorescent UV lamp as the light source. Its inner temperature and humidity can be properly controlled to obtain the periodic condensation on the sample for fully evaluating the damaged factor caused by sunlight, moisture and temperature (materials aging phenomenonincludes fading, disluster, intensity reduction, cracking, flaking, chalking, and oxidation).



Technical Specification

Name

290~400mm 40 W UV Aging Weathering Apparatus

Model

UV-260

UV-SI-260

Internal Dimension (mm)

452*1170*500

450*1170*500

Overall Dimension (mm)

680*1300*1500

680*1300*1500

Specimen Holder Size(mm)

75*150

Controller

Programmable color LCD touch screen controller
Ethernet connection, PC Link,USB

Temperature Range

Ambient ~ 90 ℃ ±2℃

Black Panel Temperature (BPT)

35 ~ 80 ℃

Bandwidth

290 ~ 400nm

Irradiance Control

N/A

0.3~20 W/㎡(340nm/313nm)

Standard

ISO4892-1,ISO4892-3, ASTM G154, ASTM D4329, ASTM D458, ASTM C125, ASTM C1442, ASTM C1519, ASTM C793, ASTM D1148, ASTM D3424, ASTM D3451, ASTM D410, ASTM D481, ASTM D657, ASTM D6662, ASTM D750, ASTM D904, GM 9125P, ISO 29664

Water Spray Cycle

1~9999H59M (Adjustable)

Distance of Specimen and lamp

50mm

Power Supply

380V 50Hz

Maximum Noise

65 dBA

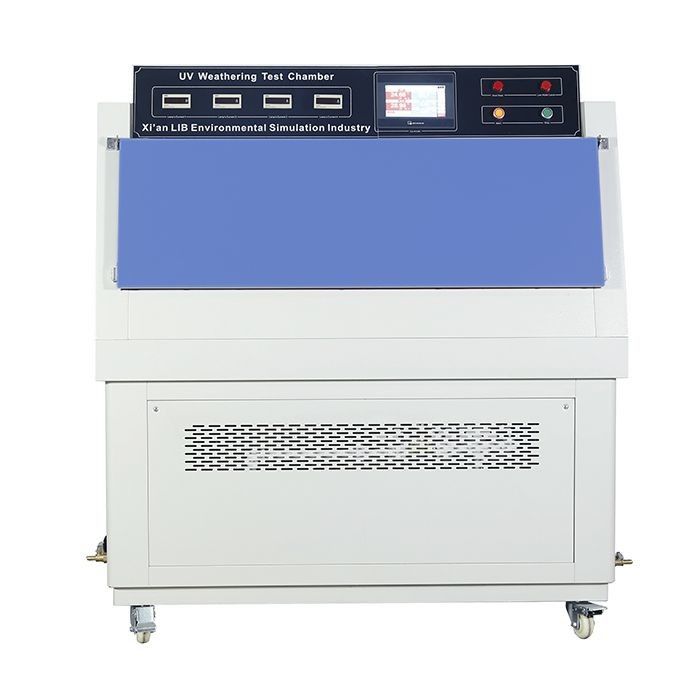

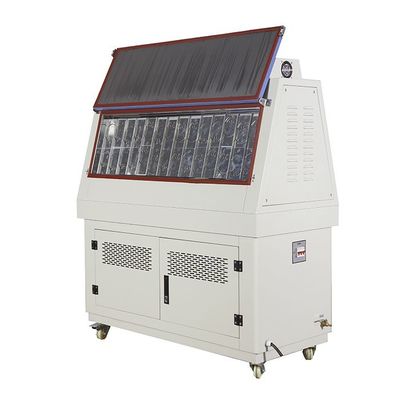

Details of UV Aging Weathering Apparatus

290~400mm 40W UV Aging Chamber Aging Weathering Apparatus 0



Black Panel Thermometer



UV lamp
290~400mm 40W UV Aging Chamber Aging Weathering Apparatus 1



Spray nozzle



Sample Holder

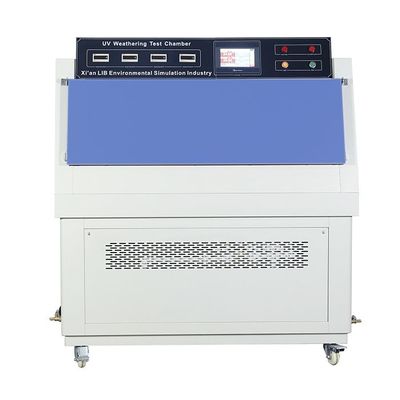

Applications of UV Aging Weathering Apparatus

UV weathering test apparatus can emulate the effect of sunshine, while condensation and water spray system can emulate the effects of rain and dew. During the test, radiation energy and temperature are controllable. A typical test cycle generally carries out under strong irradiation of UV light or in the dark and wet condensation periodwith 100% relative humidity.





290~400mm 40W UV Aging Chamber Aging Weathering Apparatus 2
