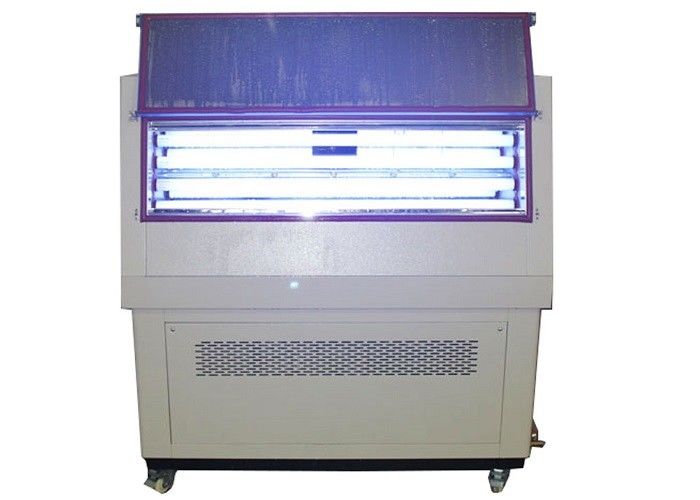

290 ~ 400nm UV Weathering Test Chamber Touch Screen Controller
Product Details:
| Place of Origin: | China |
| Brand Name: | LIB |
| Certification: | CE,RoHS,ISO17025 |
| Model Number: | UV-SI-260 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | USD2680 ~ USD8490 / SET |
| Packaging Details: | Wooden Box standard export package |
| Delivery Time: | 3-12 days |
| Payment Terms: | T/T, D/P, D/A, L/C, Western Union, MoneyGram,paypal |
| Supply Ability: | 180 sets / quarter |
|
Detail Information |
|||
| Name: | UV Weathering Test Chamber | Temperature Range: | Ambient~90℃ ±2℃ |
|---|---|---|---|
| Black Panel Temperature: | BPT 30~80℃ | UV Wavelength: | 290 ~ 400nm |
| Irradiance Control: | 0.3 ~ 20 W/㎡（340 Nm / 313 Nm） | Nominal Power: | 5000W |
| High Light: | 400nm UV Weathering Test Chamber,290nm UV Weathering Test Chamber,Touch Screen UV Weathering Test Chamber |
||
Product Description
290 ~ 400nm UV Weathering Test Chamber Touch Screen Controller
UV Weathering Test Chamber can can provide reliable aging test data to make the exact prediction of products’ weathering fastness(ageing resistance)., which is conducive to sift and optimize the formula.
| Name | 290 ~ 400nm UV Weathering Test Chamber Touch Screen Controller |
|
Model |
UV-SI-260 |
|
Internal dimensions (mm) |
450*1170*500 |
|
Overall dimensions (mm) |
680*1300*1500 |
|
Capacity of test specimens |
48 pieces Individual specimen size is 75mm * 150mm |
|
Controller |
Programmable color display touch screen controller |
|
Temperature range |
Ambient~90℃ ±2℃ |
|
Humidity range |
≥95％R.H ±2%R.H |
|
Black Panel Temperature |
BPT 30~80℃ |
|
Irradiation Source |
Fluorescent UV lamps (8) - 40 W |
|
UV wavelength |
290 ~ 400nm |
|
Irradiance Control |
0.3 ~ 20 W/㎡(340 nm / 313 nm) |
|
Water Spray |
Spraying water |
|
Distance of Specimen and lamp |
50mm |
|
Nominal power |
5000W |
|
Power Supply |
380V 50HZ |
●Fluorescent UV lamps (8) - 40 W
●Black Panel Temperature (BPT) at controlled, BPT 30~70ºC
●Temperature from Ambient to 90ºC
●Spraying water, automatic water supply
●Water reservoir 50 Liter
●Can hold 48 pieces of specimens
●Programmable color display touch screen controller
●Safety protection system
●Easy to mount samples on the holders
●CE and RoHS compliance
Test holder
1.Flat Specimen Holders, aluminum panels with rings.
Each specimen size is 75mm * 150mm, can hold 48 pieces of specimens
2.Special Specimen Holder
Customize special holder according to different specimens.
QUV lamp
1.UV chamber adopt QUV lamp made in USA.
2. UVA-340,UVB-313,UVB-351 3. UV lamp power is 40W. 4. Chamber install 8 pcs of QUV lamp.
1. The lamp is more stable 2. Spectral power distribution (SPD) does not change with lamp aging, even when used for up to 5000 hours 3. Get more repeatable test results 4. Reducing lamp replacement 5. Reducing operating costs 6. Easy to change, easy to purchase from local.
Control Panel
Programmable color display touch screen controller
Measure and display temperature, humidity, water spraying,
black panel temperature and irradiance (UV-SI-260).
Show status and working time of 8 UV lamps
Water Spraying System
Total 10 water spray nozzles, 5 nozzles each side.
Automatic water supply
Water reservoir is 50 Liter.
●Packed with export standard wooden case.
●Strong packages can be used for sea, air, railway, truck transport and multimodal transport.
●Quick ship, some models are in stock, ship in 1-14days.
●Provide door to door service for customers.
Q :How to provide after sales service?
A:If customers need our engineers on site service, the company only need pay the ticket accommodation to our engineers, service is for free.
If Products still can't use after our engineers repair, we will produce a new test chamber (same as the old one) to our customers with no charge.
You can contact our local service center in overseas market to get service and product.
Q :Can we come to your factory to study and train?
A:Welcome to our factory for study and training, we provide this service free of charge.
Q :Can you send engineers to our company?
A:Yes, sure. We will communicate in advance to facilitate the bringing of tools and components
Q :Can I install and debug calibration on site?
A :Yes, we can send technicians and engineers to the customer site for installation, commissioning and calibration.
Q :What is the packaging?
A :Standard export wooden box packaging, solid and firm.
Q :How do you calibrate the equipment?
A :We have our own calibration and third-party calibration such as ISO17025
Q: Is there a door to door service?
A :Yes, there is door to door service. We will arrange a one-stop service.
Q :What are the payment methods?
A Payment methods are T/T, Paypal, L/C, VISA
