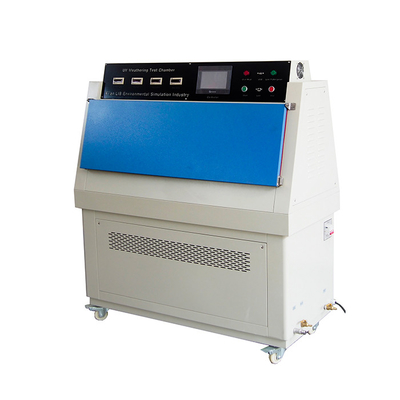

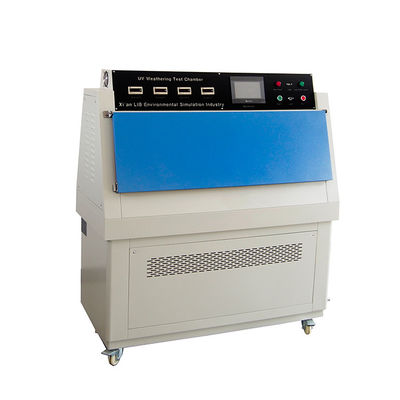

5500W Programmable UV Weathering Test Chamber Ultraviolet Aging Chamber
Product Details:
| Place of Origin: | China |
| Brand Name: | LIB |
| Certification: | CE,RoHS, |
| Model Number: | UV-SI-260 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Packaging Details: | Wooden Box standard export package |
| Delivery Time: | 3-12 days |
| Payment Terms: | T/T, D/P, D/A, L/C, Western Union, MoneyGram,paypal |
| Supply Ability: | 180 sets / quarter |
|
Detail Information |
|||
| Name: | Weathering Tester | Temperature Range: | Ambient~90℃ ±2℃ |
|---|---|---|---|
| Black Panel Temperature: | BPT 30~80℃ | UV Wavelength: | 290 ~ 400nm |
| Nominal Power: | 5500W | Humidity Range: | ≥95％R.H ±2%R.H |
| High Light: | UV Accelerated Weathering Chamber,Programmable UV Aging Test Chamber,5500W Ultraviolet Aging Chamber |
||
Product Description
Ultraviolet Light Accelerated Weathering Tester Uv Aging Test Chamber
Description
Ultraviolet Light Accelerated Weathering Tester Uv Aging Test Chamber, Ultraviolet lamps simulate the radiation effect of sunlight, and condensation and water spray are used to simulate dew and rain.
In just a few days or weeks, UV-irradiation equipment can reproduce damage that would take months or even years outdoors
Technical Specification
| Name | Ultraviolet Light Accelerated Weathering Tester Uv Aging Test Chamber | |
|
Model |
UV-260 |
UV-SI-260 |
|
Internal dimensions (mm) |
450*1170*500 |
450*1170*500 |
|
Overall dimensions (mm) |
680*1300*1500 |
680*1300*1500 |
|
Capacity of test specimens |
48 pieces Individual specimen size is 75mm * 150mm |
48 pieces Individual specimen size is 75mm *150mm |
|
Controller |
Programmable color display touch screen controller |
Programmable color display touch screen controller |
|
Temperature range |
Ambient~90℃ ±2℃ |
Ambient~90℃ ±2℃ |
|
Humidity range |
≥95％R.H ±2%R.H |
≥95％R.H ±2%R.H |
|
Black Panel Temperature |
BPT 30~80℃ |
BPT 30~80℃ |
|
Irradiation Source |
Fluorescent UV lamps (8) - 40 W |
Fluorescent UV lamps (8) - 40 W |
|
UV wavelength |
290 ~ 400nm |
290 ~ 400nm |
|
Irradiance Control |
N/A |
0.3 ~ 20 W/㎡(340 nm / 313 nm) |
|
Water Spray |
Spraying water |
Spraying water |
|
Distance of Specimen and lamp |
50mm |
50mm |
|
Nominal power |
5000W |
5500W |
|
Power Supply |
380V 50HZ |
380V 50HZ |
Details
 |
|
|
Programmable Controller |

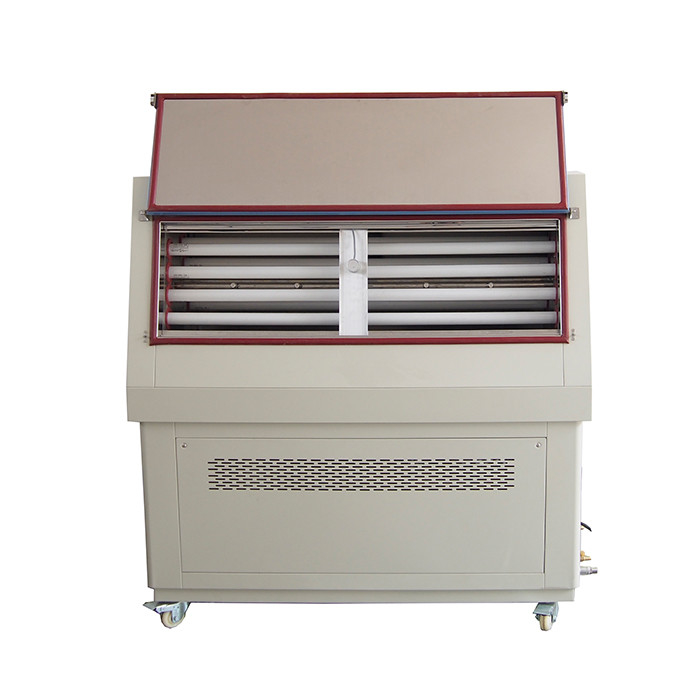

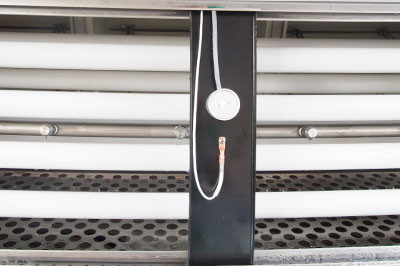

8 UV Lamps |
Working Principle
Materials are subjected to accelerated weathering tests to obtain results on material weatherability by simulating UV radiation and condensation in natural sunlight.
▶The UV aging test chamber uses fluorescent UV lamps as the light source.
▶Ultraviolet test chamber can simulate environmental conditions such as ultraviolet, rain, high temperature, high humidity, condensation, darkness, etc. in natural climates.
▶By reproducing these conditions, combine them into a loop and let it automatically execute the complete loop count.
|
|
