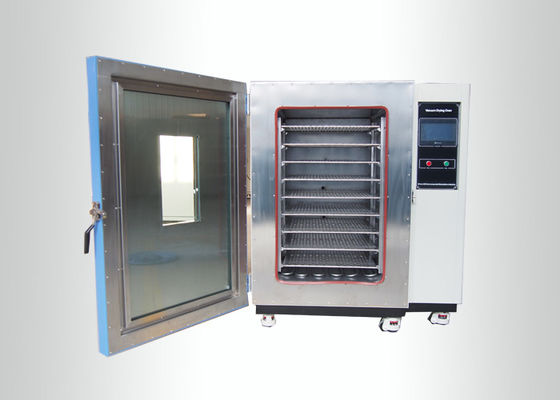

AC 220V 50HZ Hot Air Vacuum Drying Cabinet For Temperature Variation Tests
Product Details:
| Place of Origin: | China |
| Brand Name: | LIB |
| Certification: | CE,RoHS,ISO17025,CSA |
| Model Number: | VO-300 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | USD2100 ~ USD8000 / SET |
| Packaging Details: | Wooden cases standard export package |
| Delivery Time: | 3-18 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram,paypal |
| Supply Ability: | 180 sets / quarter |
|
Detail Information |
|||
| Workroom Dimensions(mm): | 650x600×976 | Exterior Dimensions(mm): | 1053×745×1020 |
|---|---|---|---|
| Temperature Range: | 35℃ ～+350 ℃ | Temperature Fluctuation: | ± 1°C |
| Temperature Resolution: | ±0.1°C | Vacuum Degree: | <133pa |
| High Light: | high temperature drying oven,lab drying oven |
||
Product Description
Laboratory Hot Air Vacuum Drying Cabinet Vacuum Drying Oven
Laboratory Hot Air Vacuum Drying Cabinet Vacuum Drying Oven, the material is to be dried under vacuum conditions, heating and drying. Use vacuum pump to pump air and humidity out, make the working room form vacuum, speed up the drying speed.
- When the heating temperature constant, increase the degree of vacuum, can speed up the drying rate.
- When the vacuum is constant, increase heating temperature, can speed up the drying rate.
- Both o improve the degree of vacuum, and improve the heating temperature, greatly speed up the drying rate.
Laboratory Hot Air Vacuum Drying Cabinet Vacuum Drying Oven used in the temperature variation tests, cold resistance tests and storage with low-temperature in the fields of aerospace, aviation, electronics, instrument, electric products, materials, parts and components and equipment to analyze and evaluate the property and performance of the samples under the simulated conditions.
| Name | Laboratory Hot Air Vacuum Drying Cabinet Vacuum Drying Oven | ||||
| Model | VO-300 | ||||
| Workroom dimensions(mm) | 650x600×976 | ||||
| Exterior dimensions(mm) | 1053×745×1020 | ||||
| Temperature range | 35℃ ～+350 ℃ | ||||
| Temperature fluctuation | ± 1°C | ||||
| Temperature resolution | ±0.1°C | ||||
| Vacuum degree | <133pa | ||||
| Controller | Digital PID Temperature Controller | ||||
| Sensor | PTR Platinum Resistance PT100 | ||||
| Interior material | SUS304 stainless steel | ||||
| Exterior material | Steel plate with protective coating | ||||
| Timing Function | 0.1~999.9 (S,M,H) settable | ||||
| Power Supply | AC 220V 50HZ | ||||
- Under Vacuum condition, the boiling point of materials solution is reduced. So to a certain amount of heat transfer, it saves the evaporator heat transfer area.
- Heat source for operation of evaporation can use low-pressure steam or waste heat steam.
- The heat loss of the evaporator can be reduced.
- Used in drying of decompose and polymerize and deterioration of heat-sensitive materials at high temperature.
- Before drying can be disinfected, the drying process were not mixed with any impurities
- It is a static vacuum dryer, compact solid dry material is not damaged.
- Export Standard Wooden Box
- Can be used for Sea, Air, Railway, Truck transportation
- Package size: 3.3 m³, gross weight: 370kg
3 Years Warranty, Lifelong Follow-up Services.
Training how to install and operate the machine.
Training how to maintain the machine.
Response within 24 hours once got questions from customers.
Send spare parts within 2 days after got notice.
Engineers available to service machines overseas to install and commissioning.
