220℃ Stability Thermal Shock Test Chamber Tester Air Cool Type
Product Details:
| Place of Origin: | China |
| Brand Name: | LIB |
| Certification: | CE RoHS ISO17025 |
| Model Number: | TS-340 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Packaging Details: | Wooden cases standard export package |
| Delivery Time: | 10 days ( check if have stock) |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 360 sets / quarter |
|
Detail Information |
|||
| Name: | Thermal Shock Test Chamber | Pre-high Temp.: | +220℃ |
|---|---|---|---|
| Volume: | 160L, 210L, 500L, 1000L And More | Cooling Mode: | Air-cool Type |
| Temperature Range: | -70C To 150C | Power Supply: | 380v, 50Hz |
| High Light: | Stability Thermal Shock Test Chamber,220C Thermal Shock Test Chamber,220C thermal shock tester |
||
Product Description

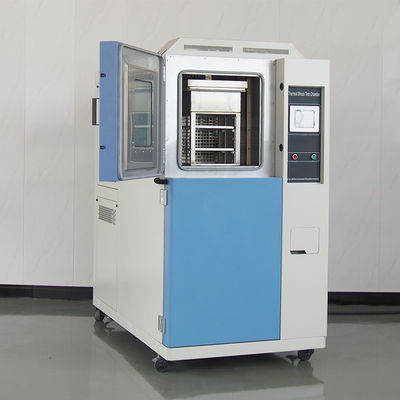

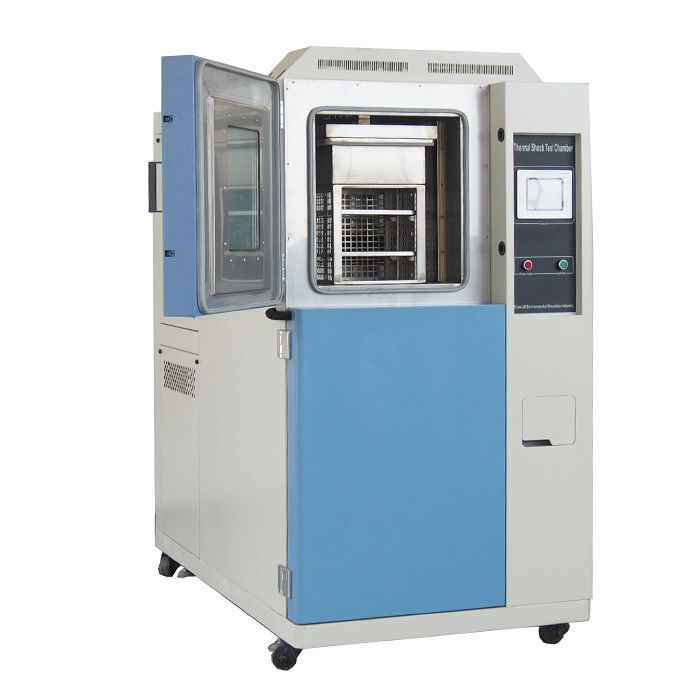

220℃ Stability Thermal Shock Test Chamber
Description
220℃ Stability Thermal Shock Test Chamber is available in small capacity and large capacity to meet different testing requirements. The specimen automatic transferred from cold chamber to hot chamber by basket.The basket slides vertically and smoothly through rails, to make the specimen is exposed to the two chambers.Thermal shock test chamber has upgraded to touch-screen controller with Ethernet, you are easy to operate over network
Products Parameters
|
Name |
220℃ Stability Thermal Shock Test Chamber |
||||
|
Model |
TS-340 |
||||
|
Inner dimensions of test room (mm) |
450*450*360 |
||||
|
Volume of test room (mm) |
72L |
||||
|
Load of test room |
30kg |
||||
|
Overall dimensions(mm) |
1710*1020*1845 |
||||
|
Pre-heat room
|
Upper limit preheat temperature |
+220℃ |
|||
|
|
Heating time |
Ambient temperature to ~ + 200℃, within in 30 minutes. |
|||
|
Pre-cool room |
Lower limit pre-cool temperature |
-75℃ |
|||
|
|
Cooling time |
Ambient temperature to ~ -70℃, within in 30 minutes |
|||
|
Test room |
High temperature exposure range |
Ambient temperature +20 to +200°C |
|||
|
|
Low temperature exposure range |
–65 to -5°C |
|||
|
Recovery time |
Within 15 minutes |
||||
|
Temperature fluctuation |
≤±0.5℃ |
||||
|
Temperature deviation |
≤±3 ℃ |
||||
|
Controller |
Programmable color LCD touch screen controller |
||||
|
Cooling system |
Mechanical compression refrigeration system |
||||
|
Refrigerating unit |
French TECUMSEH compressor |
||||
|
Refrigerant |
R404A, R23 |
||||
|
Air circulation |
Centrifugal wind fan |
||||
|
Exterior material |
Steel Plate with protective coating |
||||
|
Interior material |
SUS304 stainless steel |
||||
|
Power Supply |
380V 50HZ |
||||
|
Environmental conditional |
5℃～+40 ℃ ≤85% R |
||||
Design and Construction
|
|
|
|

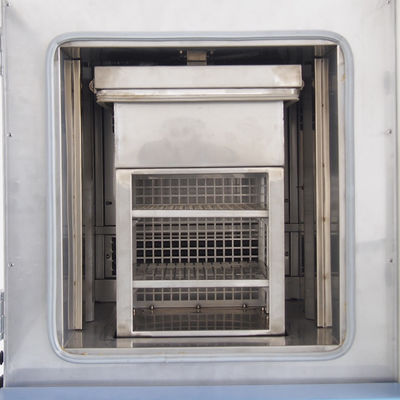

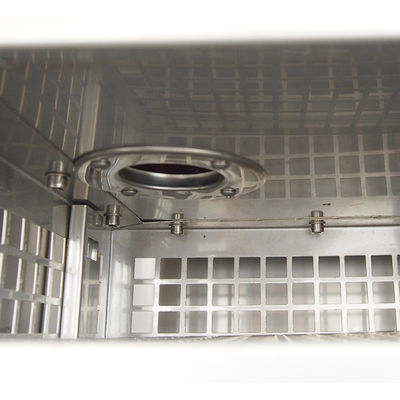

Test Area ◆Test area is made of stainless-steel. ◆Elevator type ◆Basket displacement time less than 15 seconds ◆Temperature resetting time less than 15 minutes ◆2 pieces of adjustable and removable shelves Test hole, sealed with silicone screw plug |
Cable Hole |
Features
Touch Screen Controller
Ethernet monitoring & control
Door Safety Interlocks
Emergency Stop Button
Cable Port
Casters & Leveling Legs
Application
Air/air Thermal shock Test
Electronics industry
Automotive industry
Aerospace and aeronautics industry
